• Model NO.：CLW5368mn
• Brand：SINOTRUK
• Condition：New
• Wheel Base：2050+4400+1400 mm
• Gearbox：12 Forward & 2 Reverse
• Max. Loading Weight：25000kg
• Winch Rating Pulling Capacity：20000 Kg
• Hydraulic Tailgate：1200 mm
• Wire Rope：40 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Towing Fork：4 Sets
• Too Box：1 Set
• Auxiliary Lamp：1 Set
• Yellow Warning Lamp：1 Set
• Working Video：Yes
• User Manual：Yes
• Transport Package：Bulk Ship, RO-RO
• Specification：113800x2550x3250 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension113800x2550x3250(mm)Gross Vehicle Weight31000 kgCurb Weight21900 kgChassis SpecificationChassis ParametersChassis BrandHOWO CabinSingle, Left Hand DrivingEngineModel6 CylindersPower257 KW/350HPEmission StandardEURO IIIDisplacement11120 mlFuel TypeDieselGearbox12 Forward & 2 Reverse GearFront and Rear Axle Load5.5T/ 13TWheel Base2050+4400+1400(mm)Overhang( Front/Rear)2036/1860(mm)Angle(Approach/departure)18/20(°)Brake Systemoil brakeSteering GearPower AssistantTire11.00R20, 12 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureWinchQuantity2pcWinch Rating Pulling Capacity10000 (kg)Length of Steel Cable45 (m)Hoisting OrganRating Under-Pulling Capacity25000 (kg)Rating Under-Hoisting Capacity25000 (kg)Fully Extended Max Under-Hoisting Capacity6000 (kg)Max Under-Hoist Useful Length1200 (mm)Remarks1. Equiped with locking tire device
2. Bundle chain 2pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 1 Car

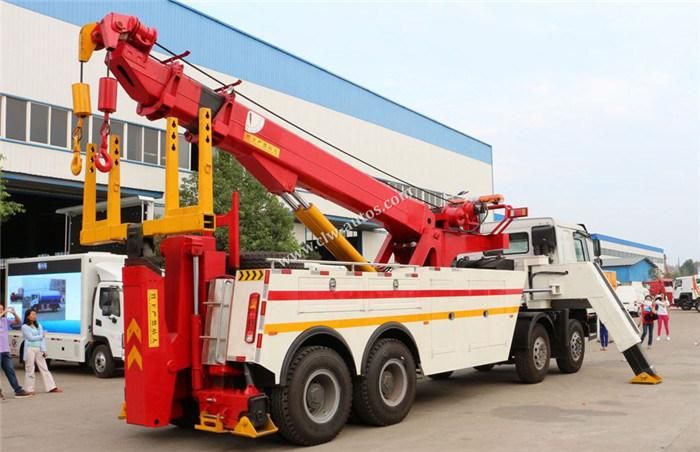

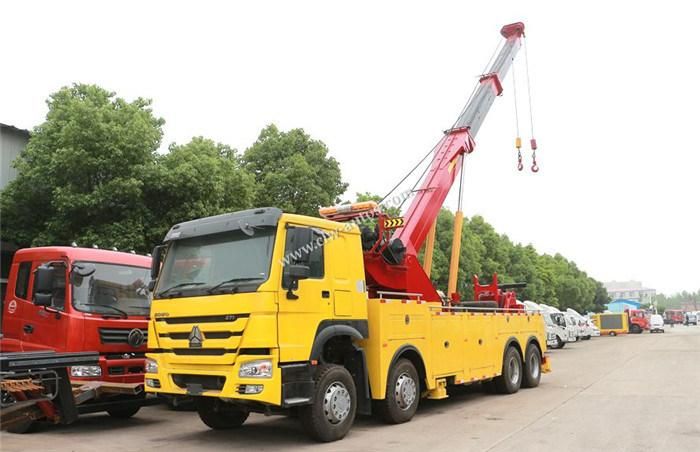

 Truck Details

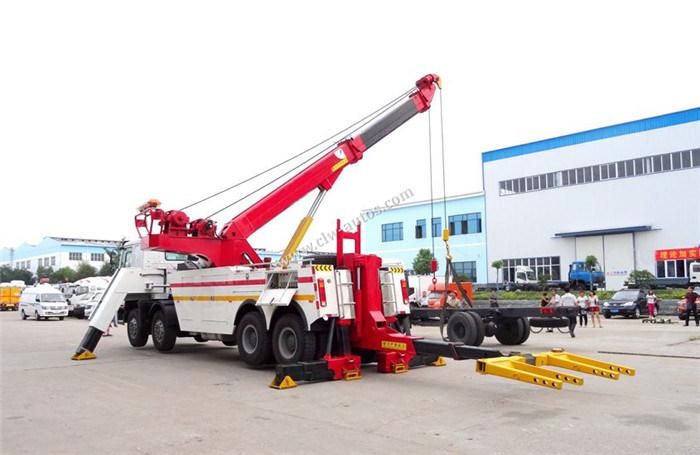

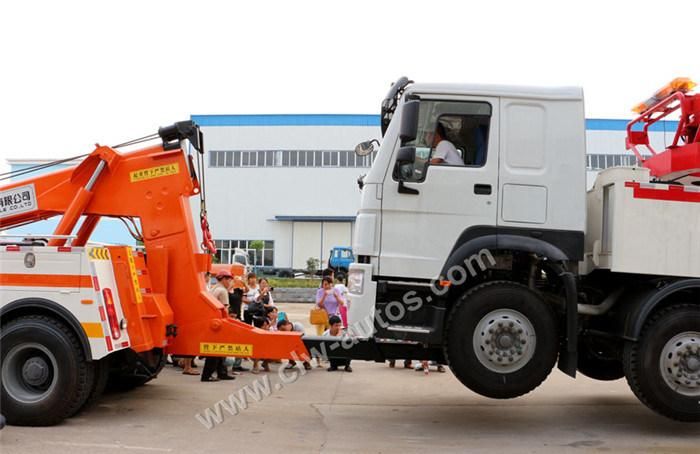

Working Show
