• Model NO.：CLW5028jv
• Brand：Isuzu
• Condition：New
• Wheel Base：3308 mm
• Gearbox：5 Forward & 1 Reverse
• Tire：7.00r16
• Max. Loading Weight：4000kg
• Flatbed Dimension：4200*2320mm
• Winch Rating Pulling Capacity：4000 Kg
• Hydraulic Tailgate：1200 mm
• Wire Rope：25 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6000x2500x3300 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5995x2300x2250 (mm)Gross Vehicle Weight4495kgCurb Weight3800kgChassis SpecificationChassis ParametersChassis BrandJACCabinSingle, Left Hand DrivingEngineModel4 CylindersPower88 KW/120HPEmission StandardEURO IIDisplacement2771MLFuel TypeDieselGearbox5 Forward & 1 Reverse GearFront and Rear Axle Load3T/6TWheel Base3308(mm)Overhang( Front/Rear)1015/2450(mm)Angle(Approach/departure)24/9(°)Brake Systemoil brakeSteering GearPower AssistantTire7.00R16, 6 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureFlatbedDimensions4200x2320 (mm)Max. Loading Weight4000(kg)Operating Stroke2700 (mm)Min. Angle of Slope8(°)Platform Height from the Ground1070(mm)WinchQuantity1pcWinch Rating Pulling Capacity4000 (kg)Length of Steel Cable25 (m)Hoisting OrganRating Under-Pulling Capacity6000 (kg)Rating Under-Hoisting Capacity2000 (kg)Fully Extended Max Under-Hoisting Capacity1600 (kg)Max Under-Hoist Useful Length1640 (mm)Remarks1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars

Truck Diagram

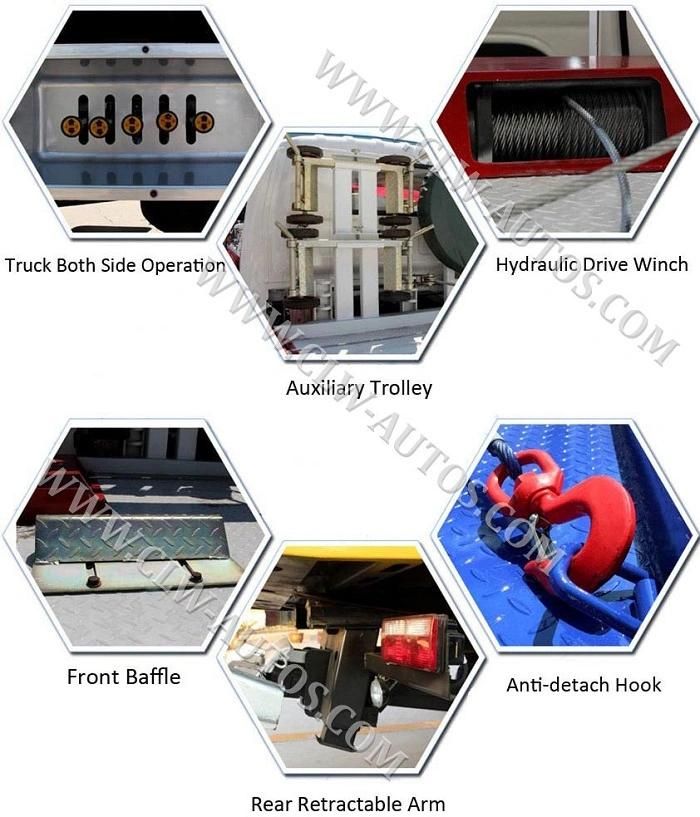

 Truck Details

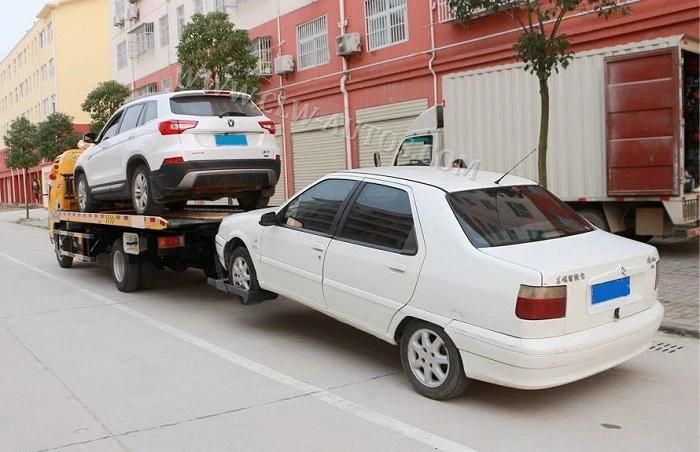

Working Show




Other Special Truck Series



Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting
