• Model NO.：CLW510LJC0003
• Transmission Type：Manual
• Payload：2ton, 3ton, 4ton, 5ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Swing Arm Type
• Condition：New
• Chassis Brand：Dongfeng, Foton , Sinotruk HOWO, etc.
• Hopper Size：3cbm, 4cbm, 5cbm, 6cbm, 7cbm, Ground Type
• Loading Capacity：1ton, 2tons, 3tons, 4tons, etc.
• Hopper Thickness：Side 3mm Bottom 4mm, Carbon Steel Q235B
• Protective Material：Q235A Carbon Steel
• Hopper Quantity：as Per Customer′s Request
• Dump Type：Hydraulic Cylinder Lifting and Self-Loading
• Controlling Way：Three-Way Hydraulic Control Valve
• Logo and Color：as Per Customer′s Request
• Transport Package：Naked Pack with Wax
• Specification：4m3, 4cbm, 4000Liters
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5890X2100X2350 (mm)Gross Vehicle Weight8280(Kg)Curb Weight4100(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelChaochai 102HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power75KW/102HPEmission standardEURO IIIDisplacement2750(ml)Fuel typeDieselGearbox5Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3308mmFront/Rear Axle Loading3300/4980(Kg)Approach/Departure Angle20/17(°)OverhangMechanical Suspension, 9/11+8TireMax Driving Speed98(km/h)Upperstructure SpecificationGarbage HopperStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 4CBMLoading Capacity2-3TonThicknessSide 3mm, Bottom 4mm, Carbon Steel Q235ADump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

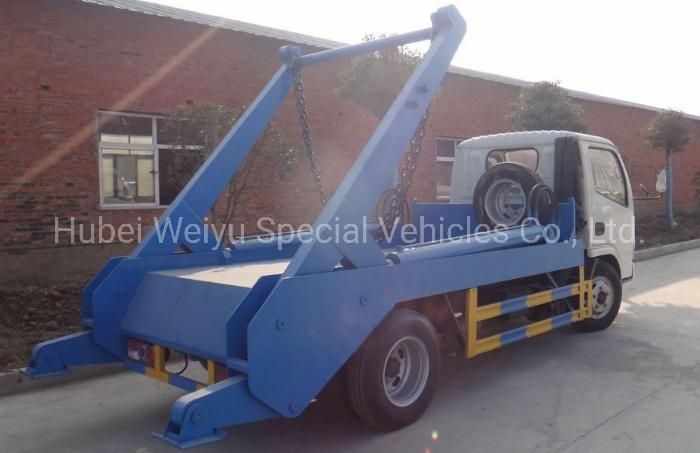

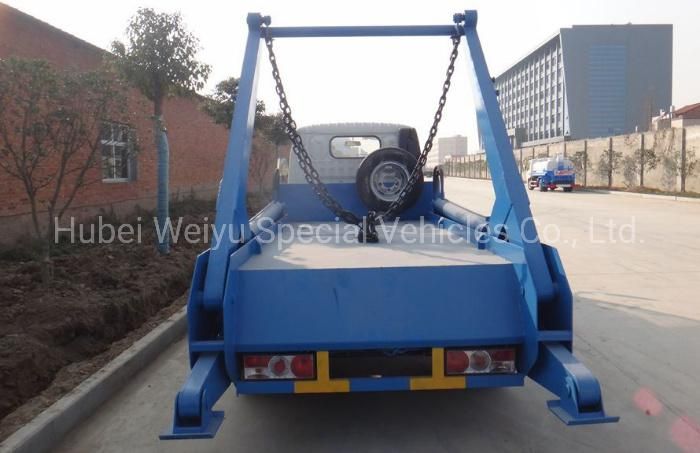

   Reference Photos

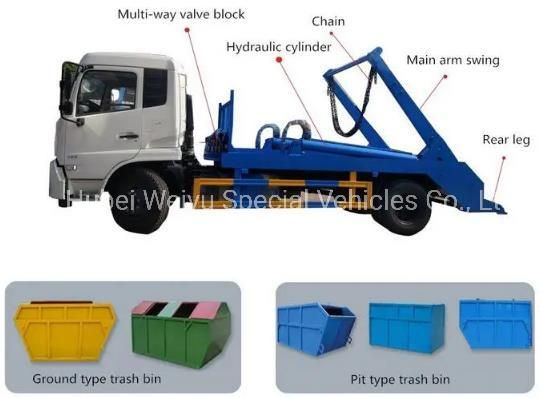

   Main Structure

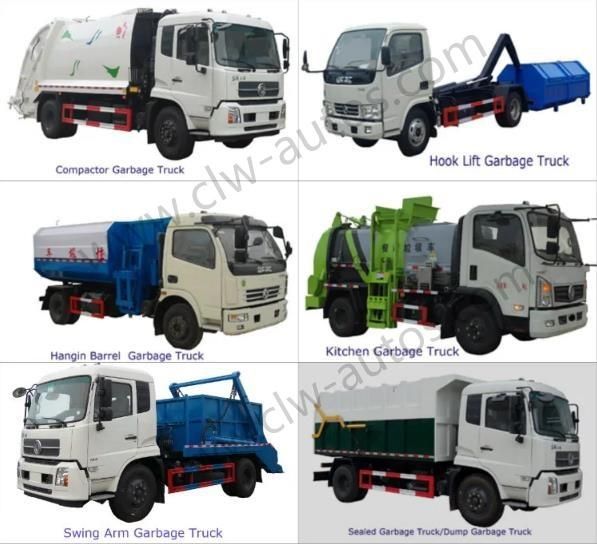

   Various Kinds of Garbage Trucks
