• Model NO.：CLW503KGF7
• Fuel：Diesel
• Payload：3t 4t 5t
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Foton, Jmc, etc.
• Water Tank Volume：2cbm
• Garbage Tank Volume：0.5cbm
• Water Tank Material：Stainless Steel
• Garbage Tank Material：Stainless Steel
• Max. Working Area：20000m3,H
• Working Speed：3-20km,H
• Sweeping Width：2.4m
• Water Tank Thickness：4mm
• Garbage Tank Thickness：4mm
• Color and Logo：Customized
• Transport Package：Naked, RO-RO, Bulk, Container
• Specification：5865 *1880 *2020 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8701909000
• Production Capacity：500units,Mouth

General Technical ParametersOverall Dimension5865*1880*2020 (mm)Gross Vehicle Weight4495(Kg)Curb Weight1880(Kg)Chassis SpecificationChassis BrandJMCDrive model4*2Cabinsingle row, LHD, with air condition.Number of Passengers2EngineModel4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power85KW/115HPEmission standardEURO 3Displacement2771(ml)Fuel typeDieselGearbox6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3360mmFront/Rear Axle Loading1385/1425(Kg)OverhangMechanical Suspension, 7/4+5TireUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume0.8(cbm)Dust TankMaterialStainless steel 304Volume1.7(cbm)Auxiliary EngineModelLaienPower29KW/39HPMaximum sweep width2.4mMaximum cleaning capacity20000m³/hStandard Configuration1. Equipped with 2 sweeping brushes on each side;2. Equipped with Sanyo Motor;3. Equipped with HIP-SD-7 electromagnetic valve set;4. Equipped with continuously variable speed automatic clutch;5. Equipped with German famous brand control switch;6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;8. Equipped with hydraulic system(control box lift, rear door open);9. Equipped with rear LED arrow lights;10. User's operation manual 1 set.Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

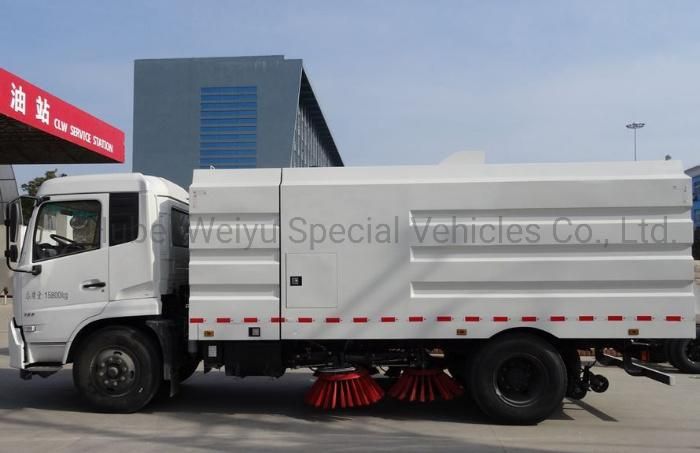

Reference Photos

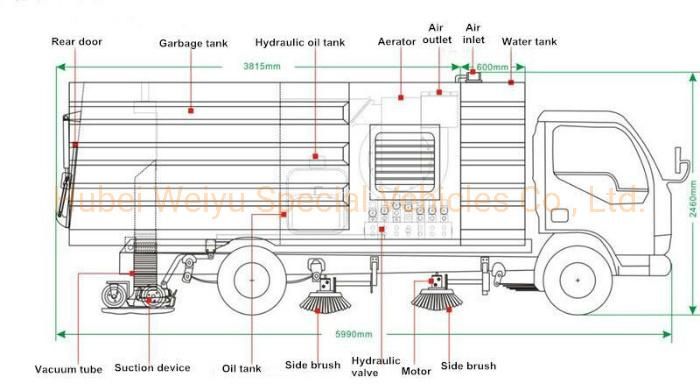

Main Structure

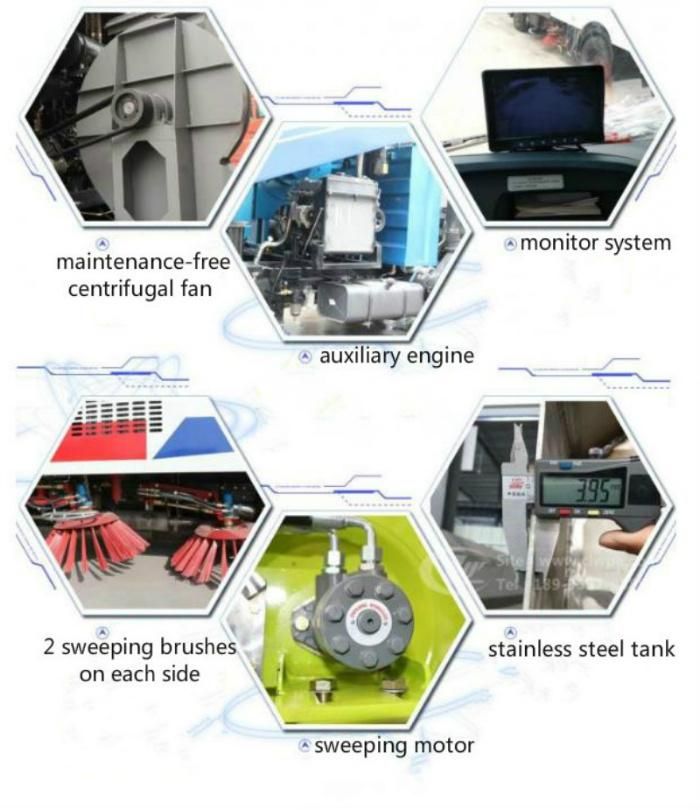

Main Parts

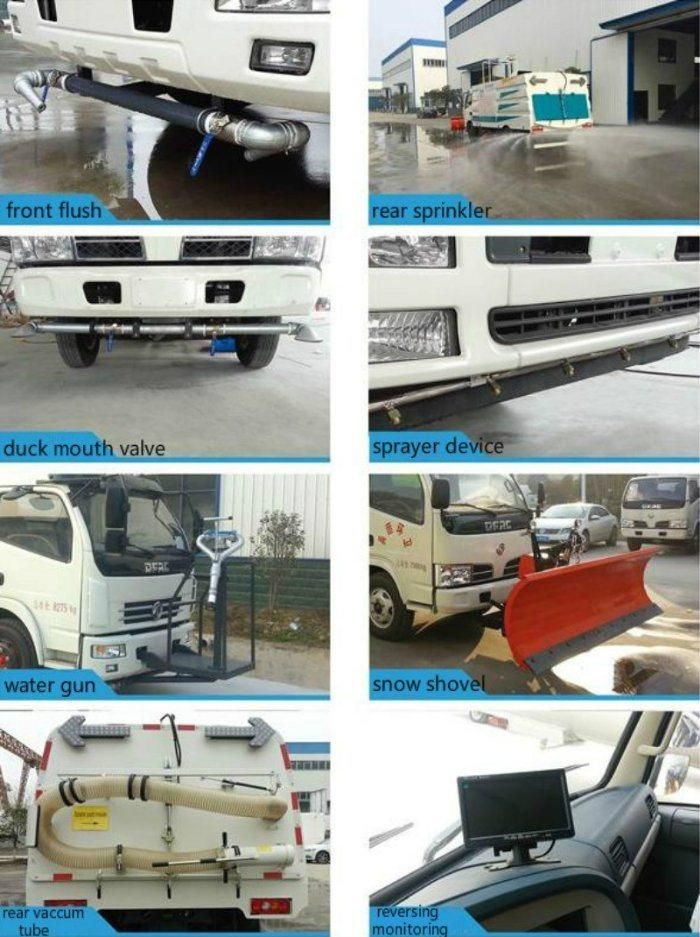

Main Optional Parts

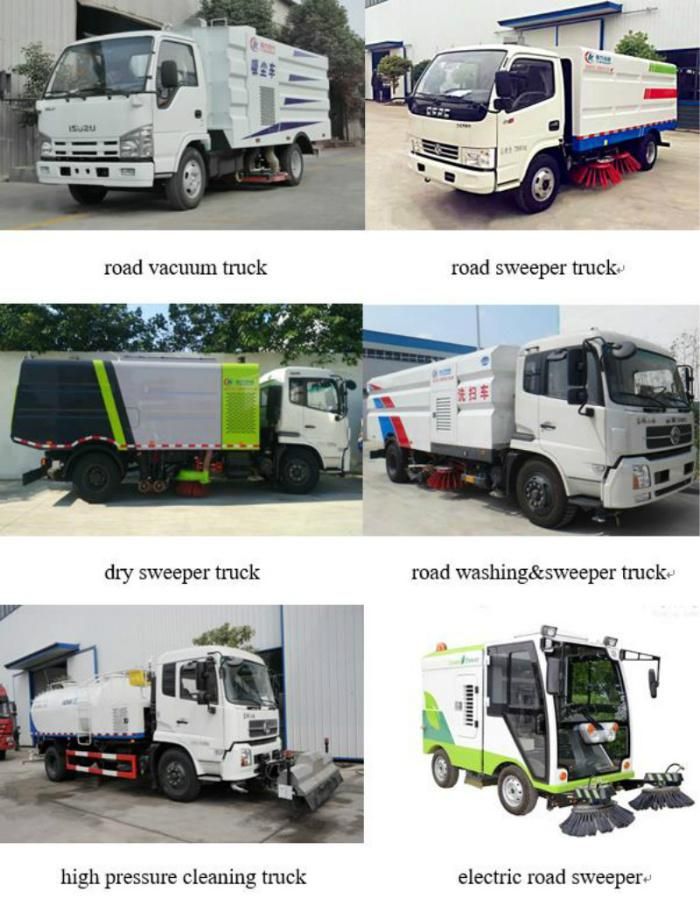

Other Related Road Cleaning Truck


Company Introduction


Certificates



Our Overseas Exhibition
