Mobile Portable Self Loading Concrete Mixer Price
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：National Emission Standards
- Displacement：1.5
- Payload：10t
- Fuel：Diesel
Base Info
- Drive Mode：4*4
- Maximum Horsepower：<200hp
- Condition：New
- Model：4cbm
- Axle：Mixer Dedicated Brideg
- Overall Weight：9800kg
- Engine Model：Ycd4p22t-130
- Rated Power：92kw
- Specification：7220*2380*3460mm
- Trademark：Shanyi
- Origin：Shandong
- Production Capacity：2000 Sets,Year
Description
Diesel engine
Type:YCD4P22T-130 Total displacement, cylinder:4580cc, four-in-line
Injection: direct injection and mechanical control
Cooling system: water-cooling, dry air filter
Maximum: 495N'm, 1800r/min
Mixing and unloading
Double-cone drum with double-spiral mixing screws and convex bottom.
The geometrical volume of drum is 5567L. The rotation speed of drum is 15r/min.
The output of concrete is 4m³/tank

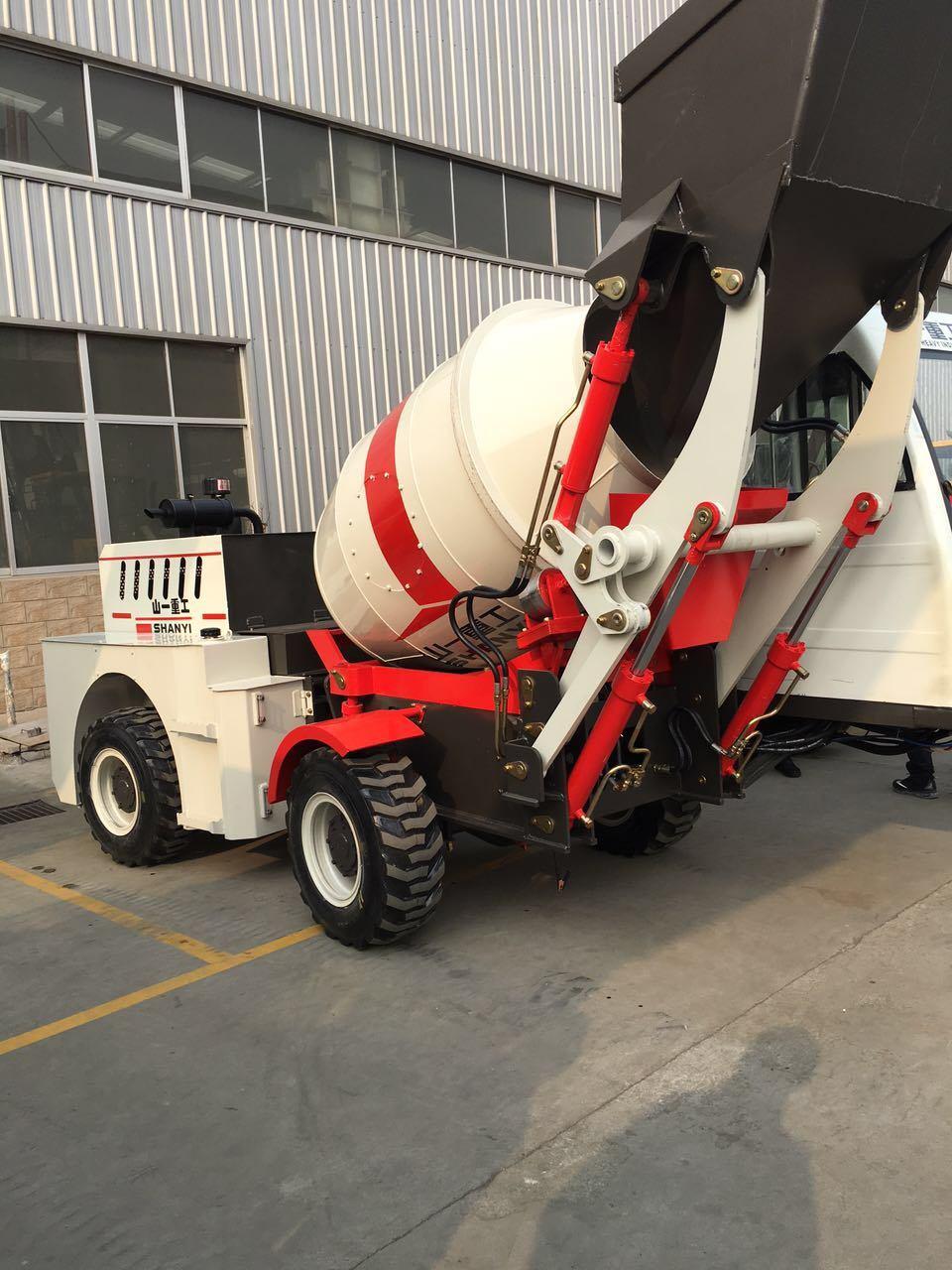

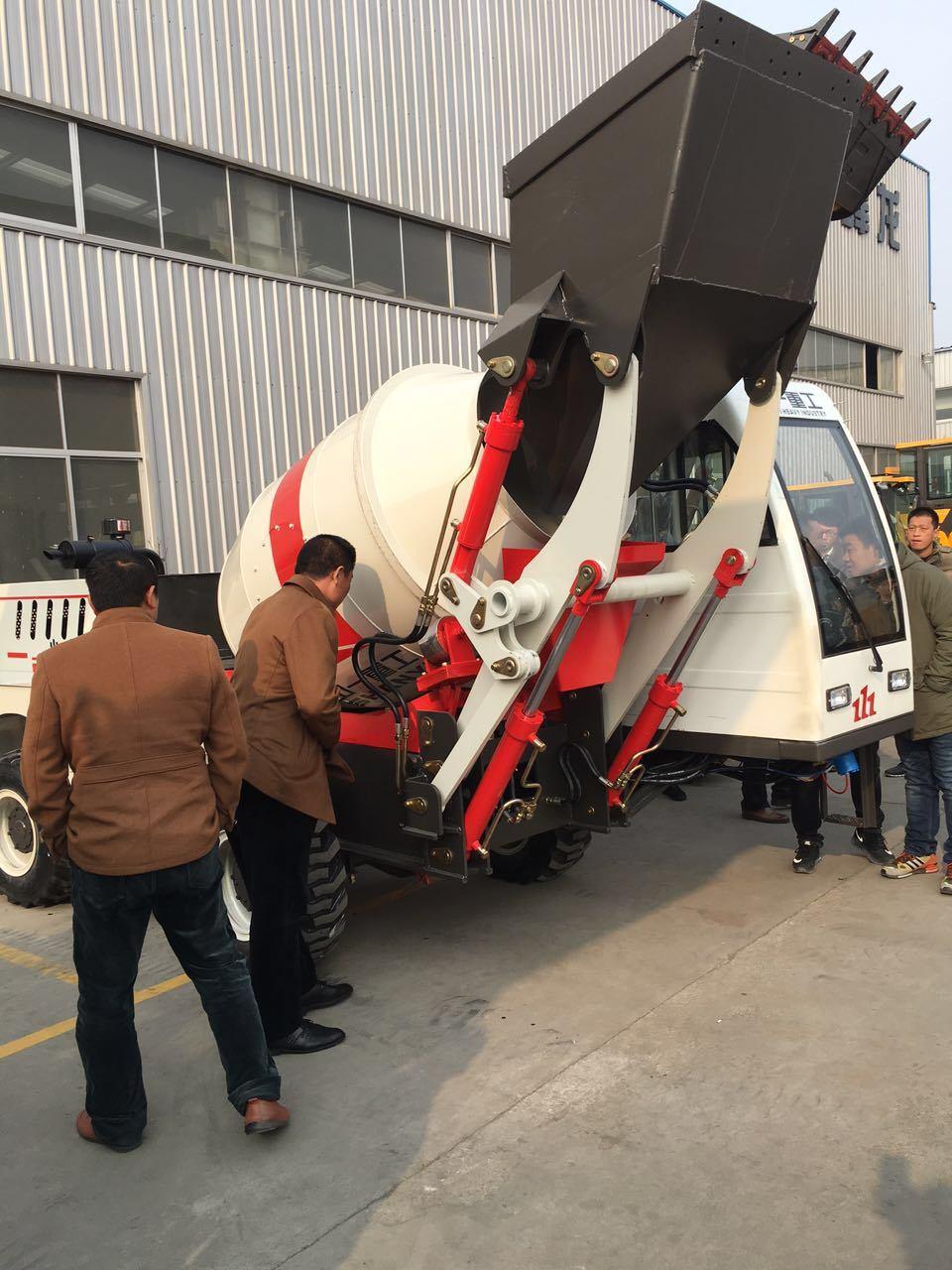

Product display

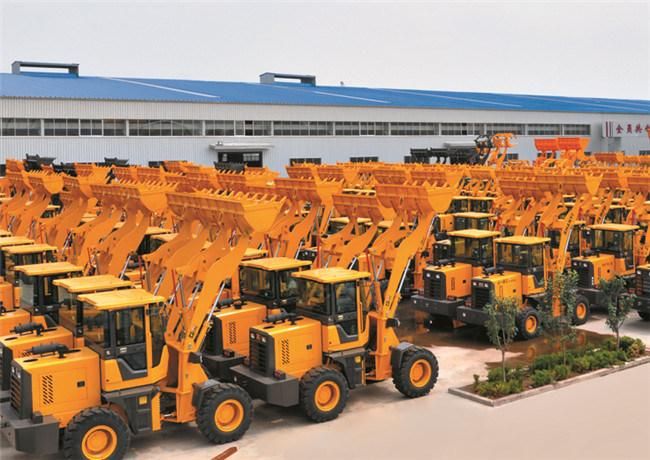

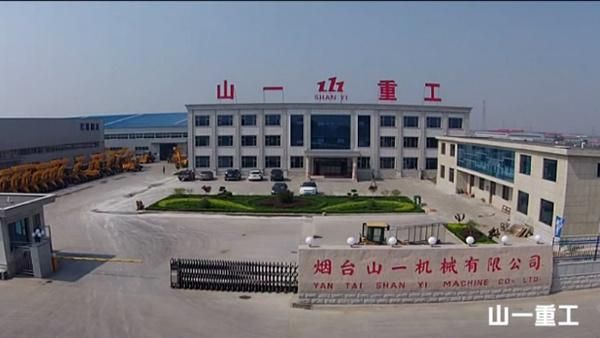

Our conpany
Contact us
