China Concrete Transit Truck Self Loading Concrete Mixer Truck

Shandong Lehman Construction Machinery Co., Ltd.
  • Certification：ISO9000, CE
  • Transmission Type：Hydraulic
  • Emission Standard：State 2
  • Fuel：Diesel
  • Drive Mode：4*4
  • Maximum Horsepower：116

Base Info

  • Model NO.：LM5000
  • Condition：New
  • Transport Package：No Packing
  • Specification：7000*2500*3250mm
  • Trademark：Shanyi
  • Origin：Shandong, China
  • HS Code：8474310000
  • Production Capacity：3000sets,Year

Description

ModelLM5000BridgeMIxer dedicated bridgeOveral  weight7400KgEngineYCD4P22T-110Rated power85KwMinimum turning radius3.5mOverall dimension7000*2500*3250mmDiesel Engine
Type: YCD4J22-110
Total displacement, cylinders: 4330cc, four-in-line
Injection: direct injection and mechanical control.
Cooling system: water-cooling, dry air filter
Maximum power: 85Kw
Maximum torque: 390Nm, 2400r/min
Steering
Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank.
The total capacity of two connected water tanks positioned opposite is 532L
Visual flowmeter, the water intake of the roller by hand-control.

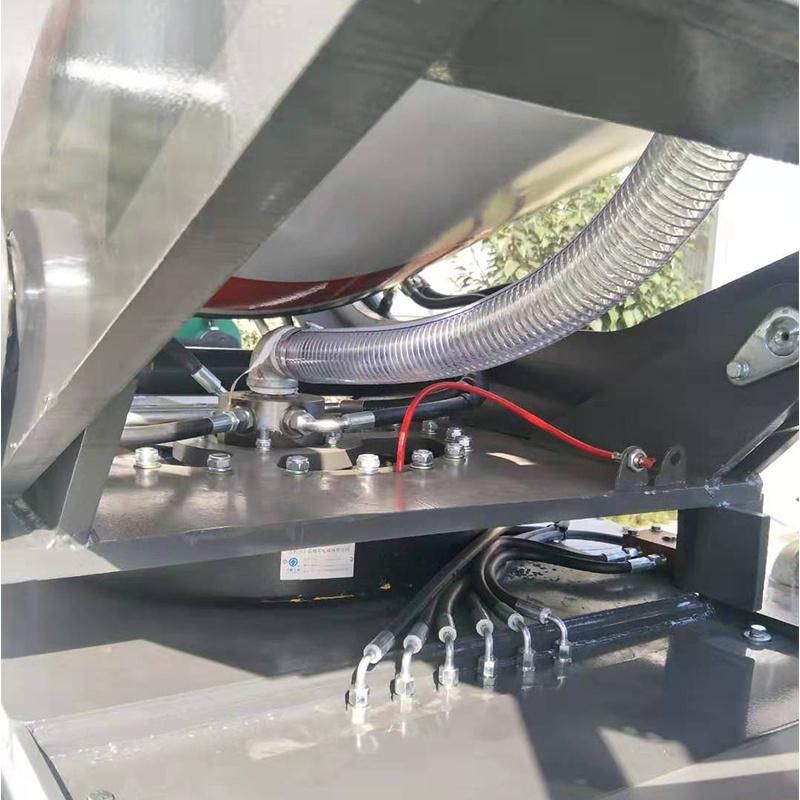

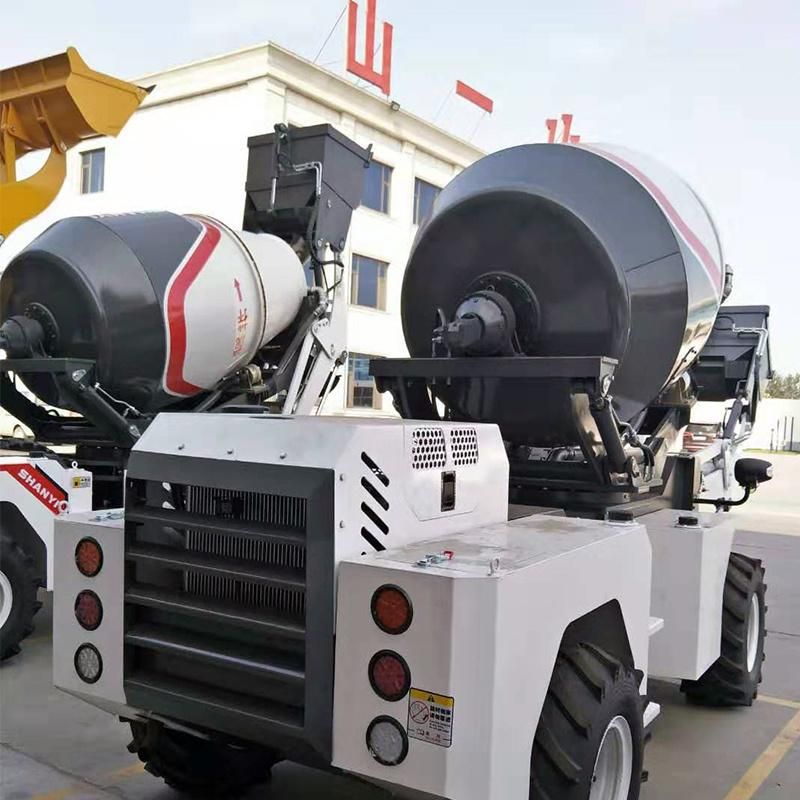

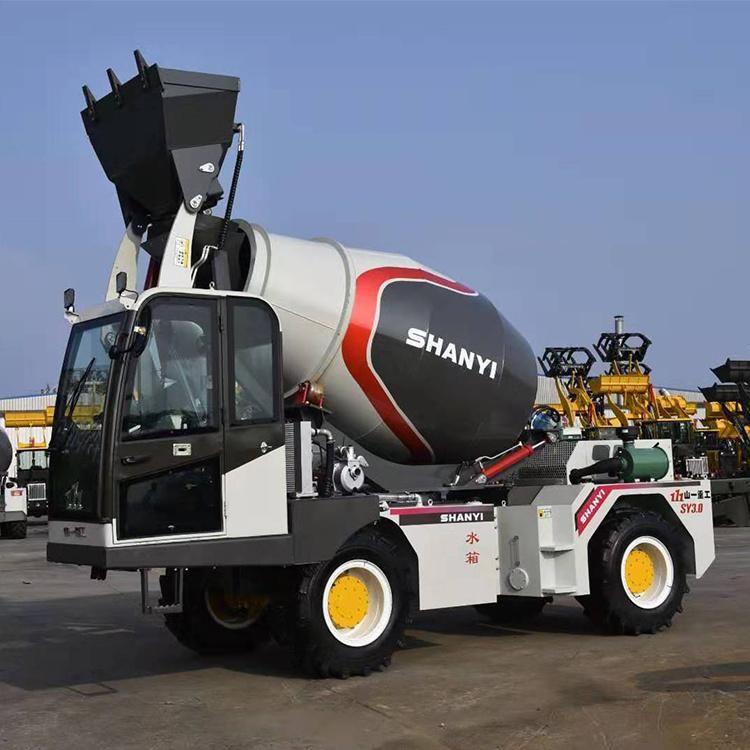

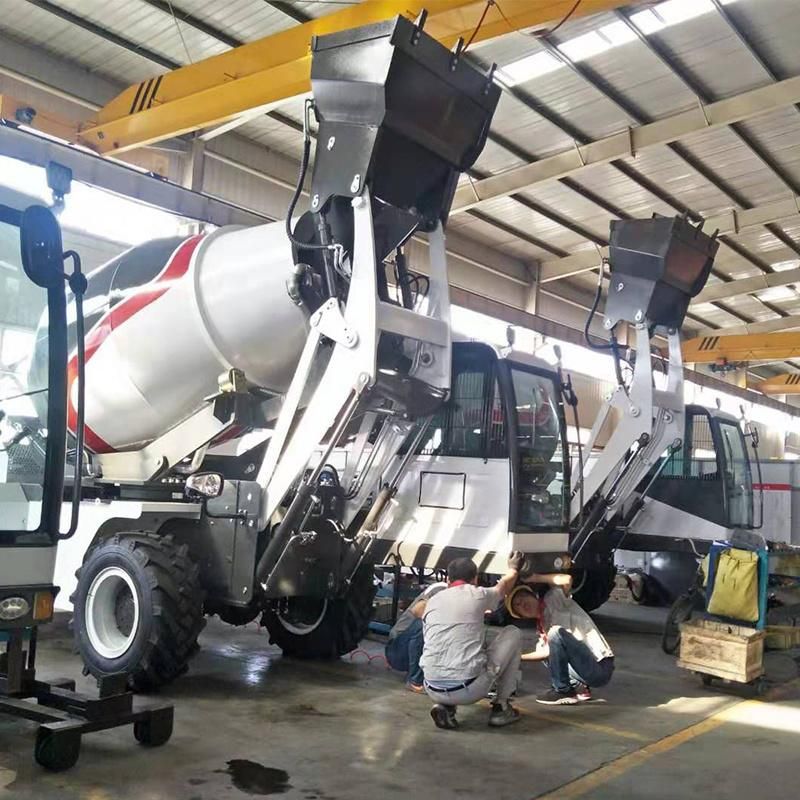

Product Show
China Concrete Transit Truck Self Loading Concrete Mixer Truck
China Concrete Transit Truck Self Loading Concrete Mixer Truck
China Concrete Transit Truck Self Loading Concrete Mixer Truck
China Concrete Transit Truck Self Loading Concrete Mixer Truck

Our Advantage
China Concrete Transit Truck Self Loading Concrete Mixer Truck

Certification
China Concrete Transit Truck Self Loading Concrete Mixer Truck
