2/3 Axles 40 FT Flatbed Semi Truck Trailer/Container Flatbed Semi Trailer
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Type：Rear Loader
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：10001-15000L
- Emission Standard：Euro 2
- Transmission Type：Manual
- Payload：40T
Base Info
- Model NO.：Semi trailer
- Fuel：Diesel
- Drive Wheel：3 Axles
- Models：Large
- Usage：Compression Type
- Condition：New
- Loading Material：for 40ftcontainer Transporting or Other Bulk Goods
- Color：as You Like
- Suspension：Air Suspension Seat
- Warranty：One Year or 100000km Which Comes First
- Transport Package：Nude Packing After Painted Wax
- Specification：heavy duty truck
- Trademark：SINOTRUK
- Origin：China
- HS Code：870423
- Production Capacity：3000pieces,Month
Description
Tare weight
7000kg
Size
12500mm*2500mm*1550mm
Payload
50T
Main beam
Heavy duty and extra durability designed I beam;
opting for high tensile steel Q345,
welded by automatic submerged-Arc processes.
Top flange 14mm,width140mm;
Middle Flange 8mm height 500mm;
bottom flange16mm,width 140mm
Side beam
No
Cross member
10# channel steel(Q235)
Floor
3mm checkered plate
Side wall
No
Front board
No
Axle
3 axle BPW/FUWA brand 13T
Suspension
Air suspension
Tire
12R22.5 double star brand 8pcs
Wheel rim
9.0-22.5 better brand 8pcs
Kingpin
JOST brand 2" /3.5'' bolt-in king pin
Landing gear
JOST brand two-speed, manual operating ,heavy duty landing gear 28T
Twist lock
8pcs
Braking system
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS
Optional
Lights
LED 4 side lights and 2 rear lights 2 width lamp
Painting
Complete chassis sand blasting to clean rust ,
1coat of anticorrosive prime,2coats of final paint
Accessories
One standard tool box,one spare tire carrier,
one crank,one shaft headwrench,four side light,two rear light
Date of delivery
20 workdays after we received 30% of contract value T/T down payment.

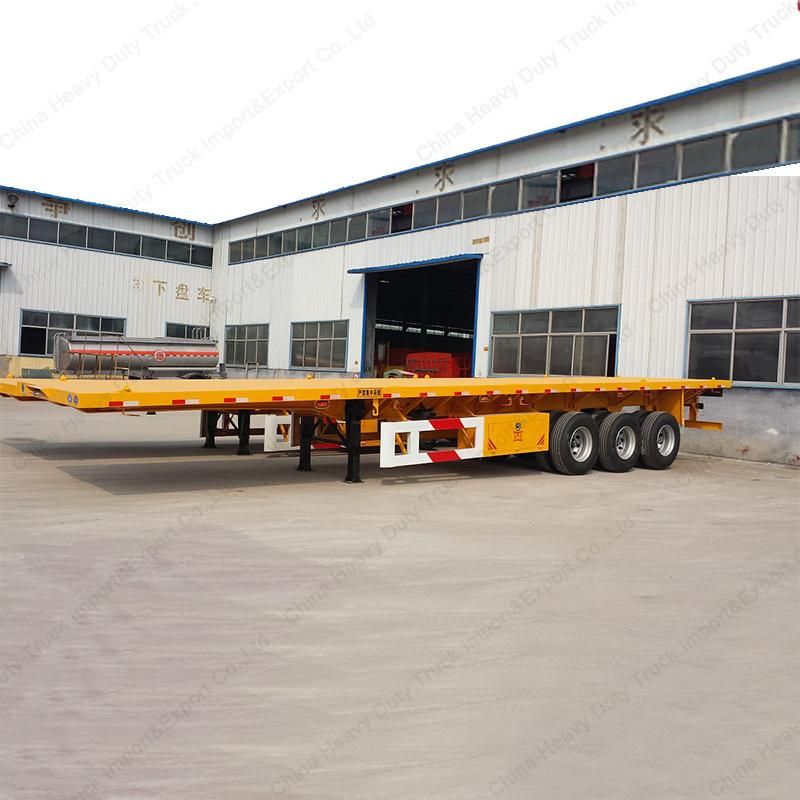

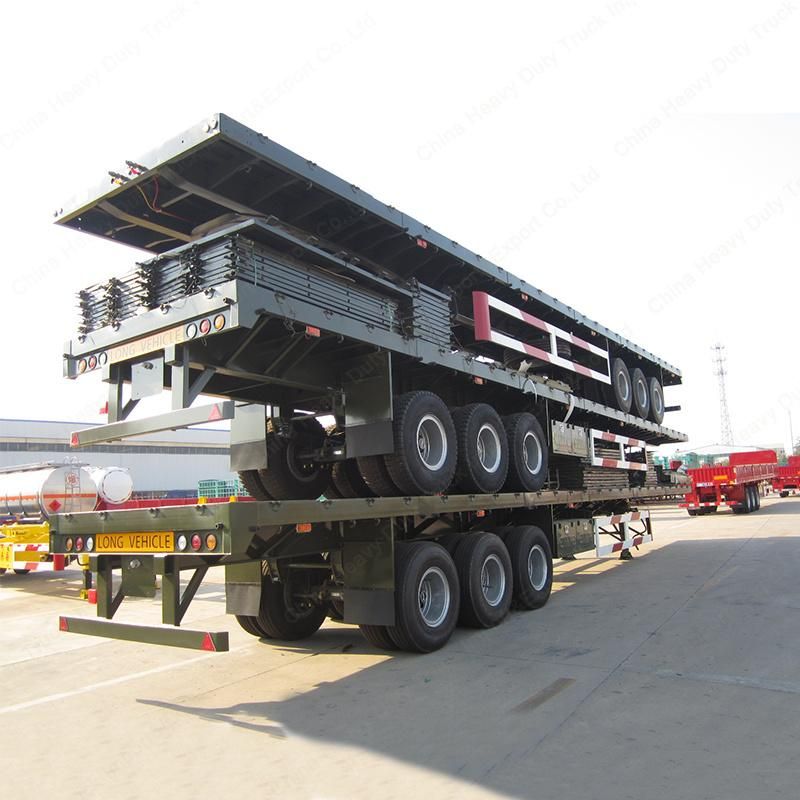

2. Flatbed semi trailer photos we taken for you

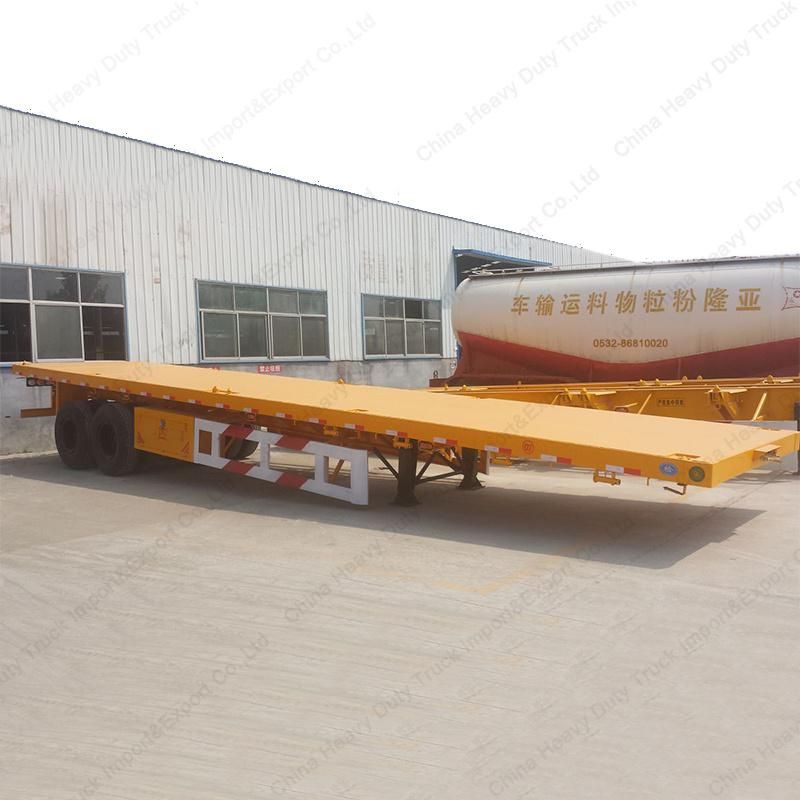

20 ft 2 axles flatbed semitrailer is optional
We can offer you one-stop service, if you need tractor truck/tractor head,
we will offer you with the lowest price, too!
We will try our best to help you to earn more and more money
in transportation period by offering you high quality trucks!

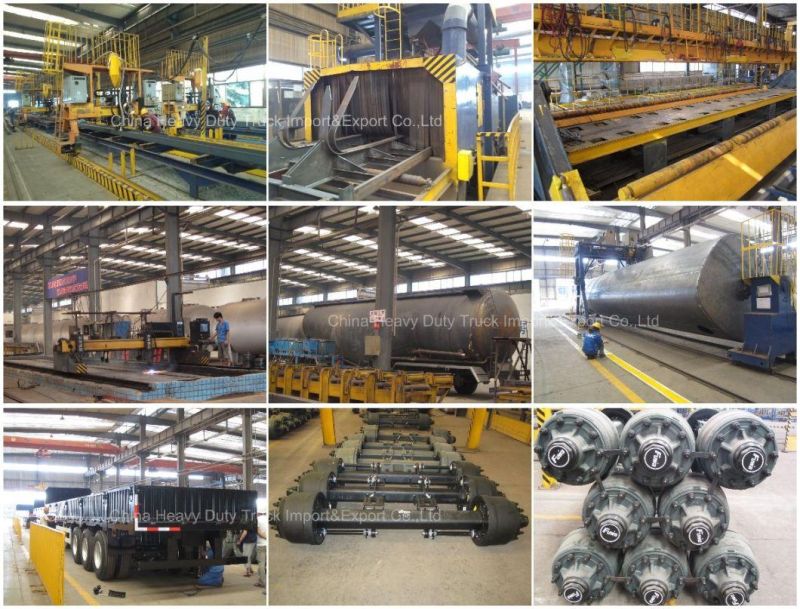

3. Our workshop, welcome to have a visit!
4. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier or in container, according to the trailer dimension
5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6. Main Trailer products
7. FAQ
Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ? |
A: We can make the tires as your requirement to suit your country's need. |
Q2: What about your products quality ? |
A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning! |
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ? |
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit. |
Q 4: What others we can do ? |
A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security. |
Q 5: How to guarantee customers get the goods smoothly after they pay ? |
A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship. |
Q 6: What's the delivery time ? |
A: The delivery time is within 15 working days after receiving your advance payment. |
Q 7: Can you supply some quick-wear truck or semi trailer parts ? |
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
Q 8: Do you have any used truck and semi trailer for sale ? |
A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll show you our stock if you need. |
Q 9: Which INCOTERMS 2010 TERMS can we work ? |
MAOWO is a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW. |
Q 10: What logistics ways we can work for shipment? |
A: We can ship construction machinery by various transportation tools. (1) For 80% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment. (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.,we can ship construction machinery by road or railway. (3) For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex. |
8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
9. Company information
Staff of our company can provide the trucks meeting the requirement of customers at the best price.
We have 20 years of experience in exporting trucks.
We have not only the certificate and license of truck export and also strict quality management,
fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing,
professional and reliable loading goods,on-time delivery and competitive prices.
We sincerely hope to cooperate with you to expand market in your country!
