Low Price Sinotruck HOWO 6X4 371HP Dump Truck (Zz3257n3247b)
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- After-sales Service：Has
- Warranty：6-12 Months
- Type：Rear Loader
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：10001-15000L
- Emission Standard：Euro 2
Base Info
- Model NO.：ZZ3257
- Transmission Type：Manual
- Payload：20T
- Fuel：Diesel
- Drive Wheel：6×4
- Models：Large
- Usage：Compression Type
- Condition：Used
- Loading Material：for Transporting Household Garbage
- Color：as You Like
- Suspension：Air Suspension Seat
- Transport Package：Nude Packing After Painted Wax
- Specification：heavy duty truck
- Trademark：SINOTRUK
- Origin：China
- HS Code：870423
- Production Capacity：3000pieces,Month
Description
Basic Info.
Model NO. ZZ3257 Transmission Type Manual Payload 20T Fuel Diesel Drive Wheel 6×4 Models Large Usage Compression Type Condition Used Loading Material for Transporting Household Garbage Color as You Like Suspension Air Suspension Seat Transport Package Nude Packing After Painted Wax Specification heavy duty truck Trademark SINOTRUK Origin China HS Code 870423 Production Capacity 3000pieces/MonthProduct Description

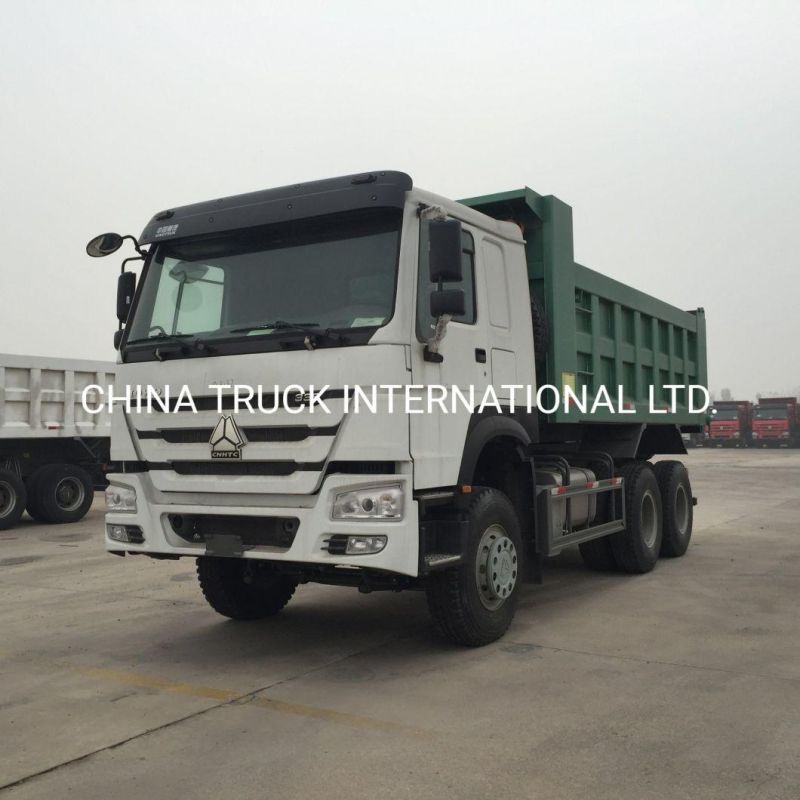

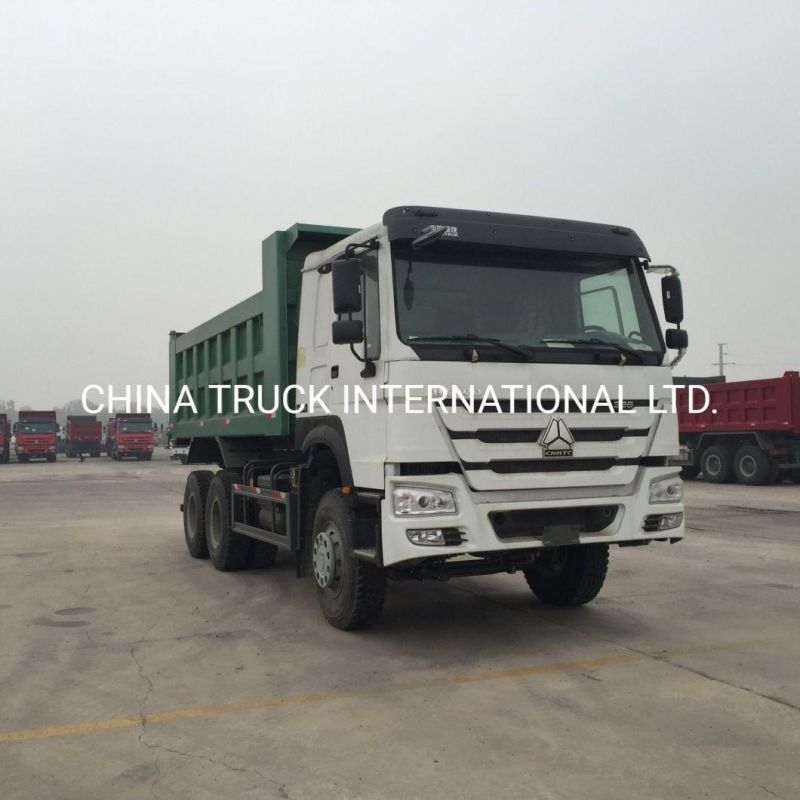

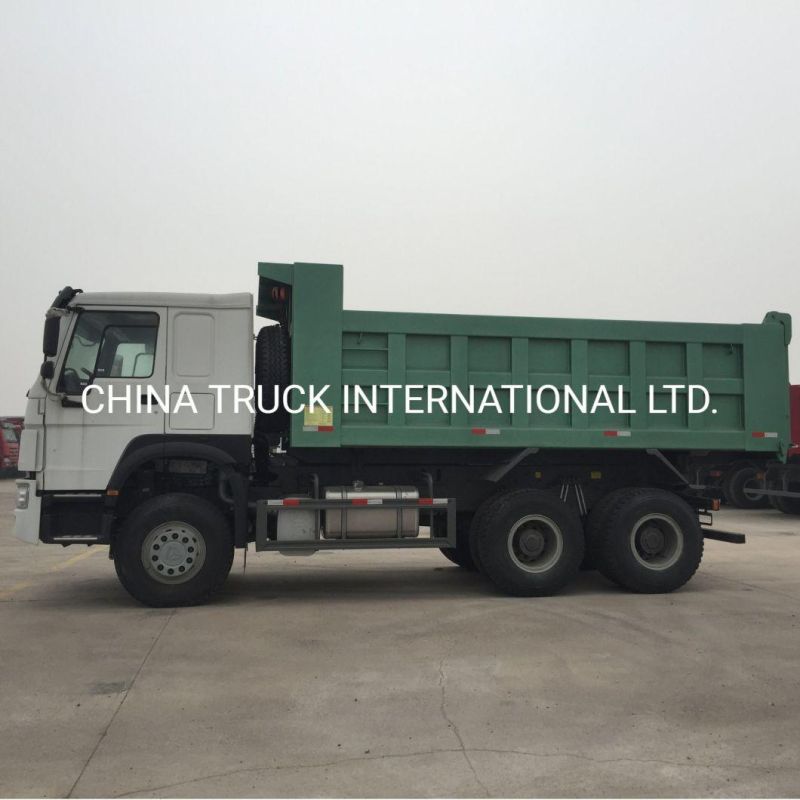

Original HOWO 6X4 10 Wheels 371HP Tipper/ Dump Truck for Mine
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
This dump truck we have new and used one,You can choose according to your requirement!
Our main Overseas Business Scope:- All types of heavy duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service & Maintenance
Our complete selling system including sale, spare parts sale, after-sale service and customer service.
1. Dump Truck Main Specifications:(Configuration can be changed as required)
| Vehicle model | HOWO A7 6*4 Dump Truck ZZ3257N3647P1 H7/336/K38/6*4A |
| Driving model | Left/ Right Hand Drive |
| Kerb weight kg | 12270 |
| Loading capacity kg | About 25000kg |
| Cab | HW76 long cab, one sleeper, two seats, air conditioner, German VDO instrument, adjustable seat, twospeed wiper and glass washer, sun visor, safety belts, adjustable steering wheel, air horn, with 4point support fully floating suspension and shock absorbers with transverse stabilizer. |
| Engine | Make: SINOTRUK Diesel: 4 stroke direct injection diesel engine Engine model: diesel engine, WD615.69 336HP(247Kw) Euro 2 emission standard 6-Cylinder in-line with water cooling, turbo-charger and inter cooling Displacement: 9.726L |
| Clutch | Strengthen Φ420 B size imported diaphragm clutch |
| Transmission | HW19710 SINOTRUK 10 forward&2 reverse gearbox, with HW70 PTO Nuclearance: 1900N.m Which is much better than HW15710 |
| Driving axle | HC16 SINOTRUK high strengthen cast steel heavy duty axle, with two speed reductions Ratio: 5.45 |
| Front axle | HR9 off road use 9T front axle with disc brake system |
| Steering | ZF8098 German hydraulic steering with power assistance Which is much better than ZF8098 |
| Braking system | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: exhaust brake |
| Tire | 12.00R20 radial tire No.of Tires:10+1 |
| Wheel base mm | 3825+1350 |
| Front/ Rear wheel track mm | 2022 1830/1830 |
| Approach/departure angle | 19 /23 |
| Over hang mm | 1500/1870 |
| Maximum speed km/h | 75 |
| Numbers of axles | 3 |
| Van dimension mm | 5600/ 5800*2300*1500, 20m3, hydraulic front lifting cylinder Thickness of the steel board: floor 8mm /side 6mm |
| Whole dimension mm | 8345/ 8545*2496*3170 |
| Colors | White/Red/Yellow/Green/Grey/Blue etc |
| Others | Will be carried out by SINOTRUK factory's standard |

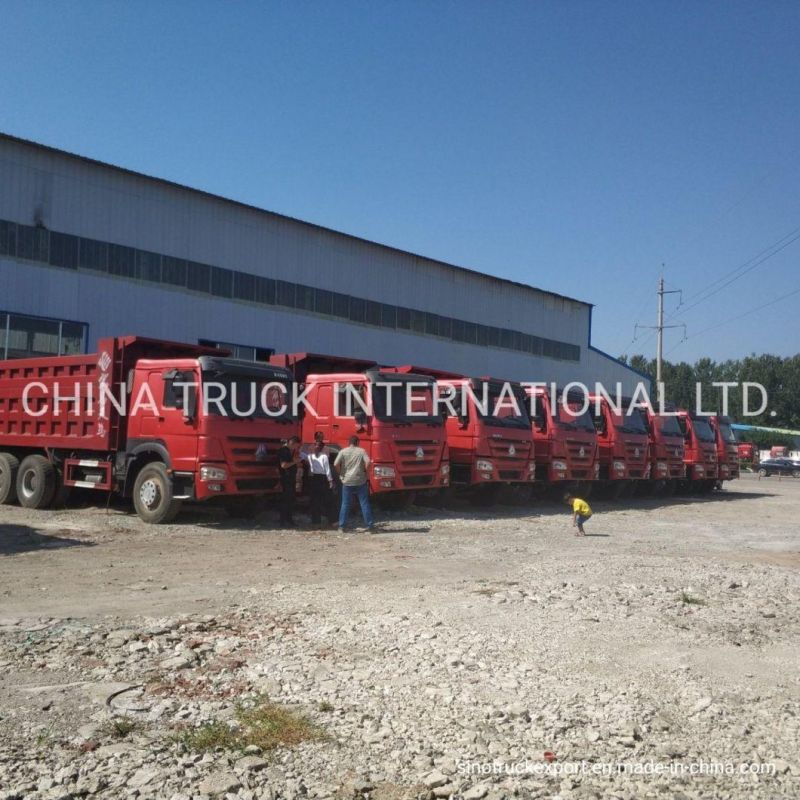

Used trucks in our warehouse, waiting for customers coming to choose and delivery!

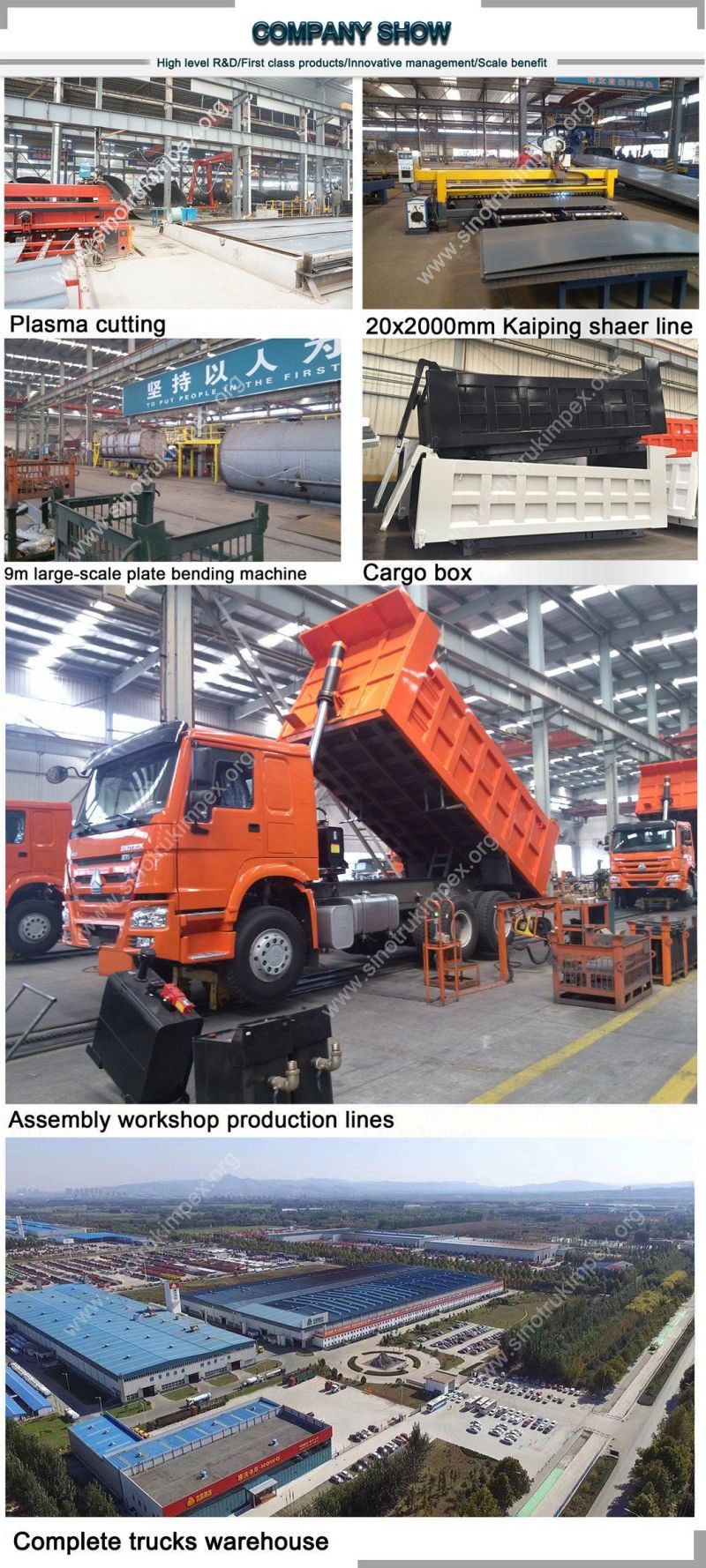

2.Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
3.Packing:Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
4. FAQ
| Q1: I don't want this configuration. |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q 3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q 4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q 5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q 6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
