Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Warranty：1 Year
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Towing Tonnage：4t
  • Fuel：Diesel

Base Info

  • Model NO.：CLW8199QZC
  • Bearing Capacity：Light
  • Brand：Foton
  • Condition：New
  • Chassis Brand：Foton, Dongfeng, Isuzu, HOWO, JAC, etc.
  • Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
  • Cabin：2~3 Personn with A,C
  • Engine：106-160HP
  • Wheel Base：3360mm
  • Wrecker Type：One-Towing-One, One-Towing-Two
  • Truck Overall Size：5995*2300*2350mm
  • Max Lifting Weight：3tons; 4tons; 5tons
  • Max Towing Weight：3tons; 4tons; 5tons
  • Hydraulic System：Famous International Brand
  • Winch Rope：25m, 25meters
  • Logo and Color：as Per Customer′s Requests
  • Delivery Time：30-35 Working Days
  • Warranty Period：1 Year
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：3T, 3ton, 3tons, 4t, 4tons, 4ton, 7tons
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical SpecificationOverall Dimension5995x2300x2350(mm)Gross Vehicle Weight4495 (Kg)Curb Weight4100(Kg)Chassis SpecificationChassis BrandFotonDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower95KW/129HPEmission standardEURO2 or 3Displacement2780(ml)Fuel typeDieselGearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3360(mm)Front/Rear Axle Loading2500/5000(Kg)Approach/Departure Angle24/12(°)Tire7.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension4200*2320(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity3000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

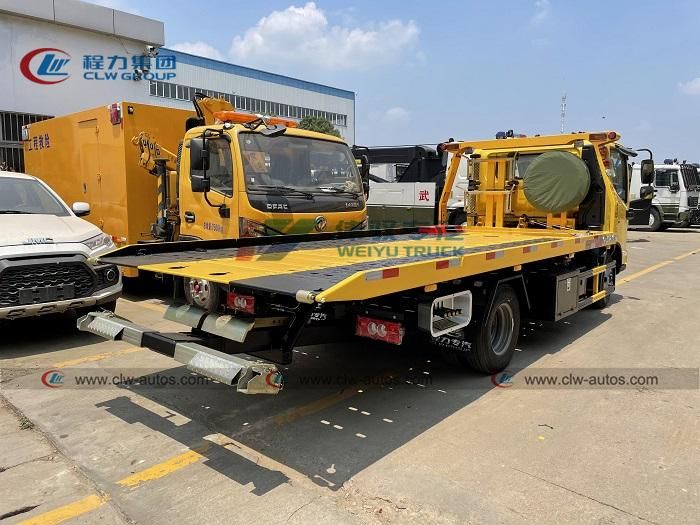

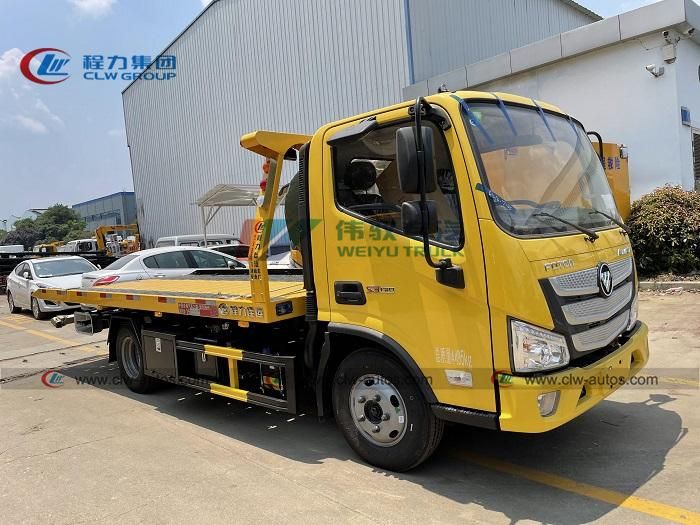

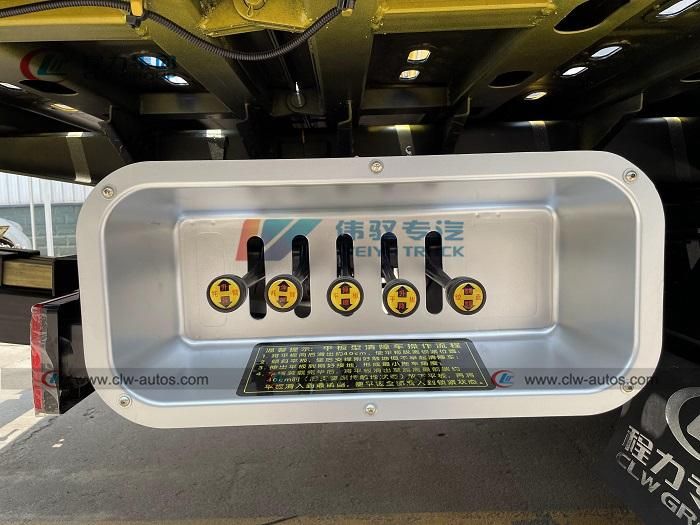

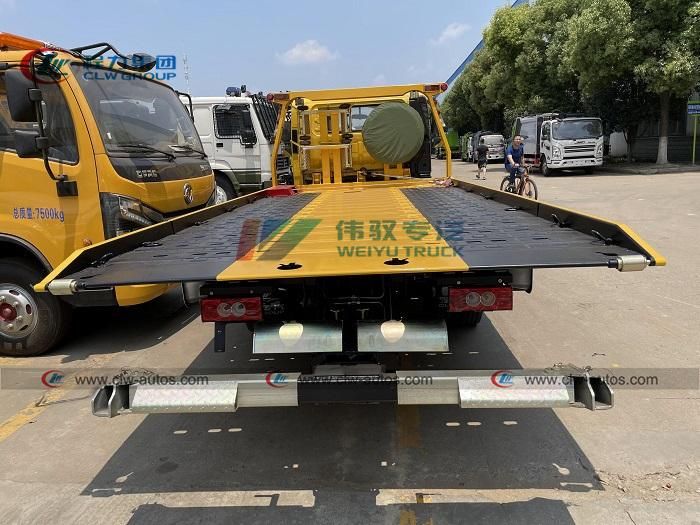

Reference Photos
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker TruckJapanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker TruckJapanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker TruckJapanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Main Structure Diagram
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Company Introduction
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Certificates
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck
Our Overseas Exhibition
Japanese Foton 4X2 Wrecker Truck Tilt Tray Middle Duty 4t 5tons Flatbed Tow Wrecker Truck





After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details.
