FAW J6 10000liter/10cbm/10m3/10ton/10000L Cleaning Vehicle Sewage Fecal Vacuum Suction Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 3
- Payload：10ton 11ton 12ton
- Transmission Type：Manual
- Fuel：Diesel
- Tank Volume：10000L
Base Info
- Model NO.：CLW5087GYK
- Drive Wheel：4x2
- Hoesrpower：150-250hp
- Condition：New
- Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
- Drive Model：Right Hand Drive & Left Hand Drive
- Wheelbase：4500mm
- Engine Power：190HP
- Tank Capacity：10cbm 10m3 10cubic Meter 10000liters 10t 12t
- Tank Material：6mm Carbon Steel
- Vacuum Pump：Famous International Brand
- Sewage Suction Pipe：8m
- Suction Time：No More Than 5mins
- Effective Suction：No Less Than 8m
- Logo and Pattern：as Customer′s Request
- Warranty：1 Year
- Transport Package：Bulk Ship, RO-RO, Container
- Specification：10cbm, 11cbm, 12cbm, 10ton 11ton 12ton
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Cab
Driving Type
4*2
Max Speed (km/h)
99
Overall dimension(mm)
GVW( kg)
15600
Wheelbase(mm)
7550
Tire
9.00R20 (6+1)
Engine
Fuel Type
Diesel fuel
Type
Water-cooled four-stroke, direct injection, turbocharged
Exhaust(ml)
4764ml
Horse power
190hp
Volume of tank
10000L
Color
Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker
6mm Carbon stell
Special function
Suction height
≥8 (m)
Suction time
250(S)
Maximum Inclination Angle
≥45°
maximum vacuum
≥11 MPa
Lifting time
≤45 S
the Cover opening Angle
≥75°
The cover opening time
≤25 S
Suction pipe
3m length and 100 mm in diameter

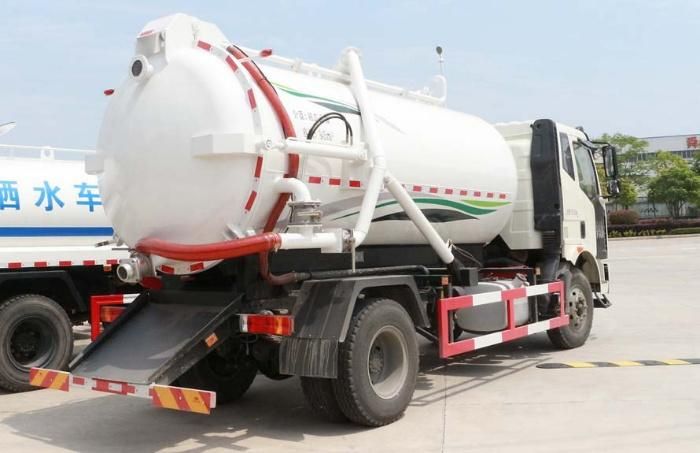

Reference Photos

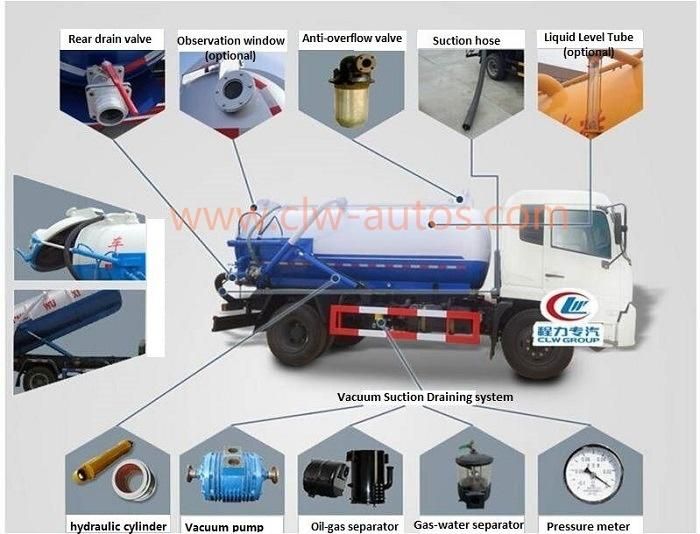

Main Structure

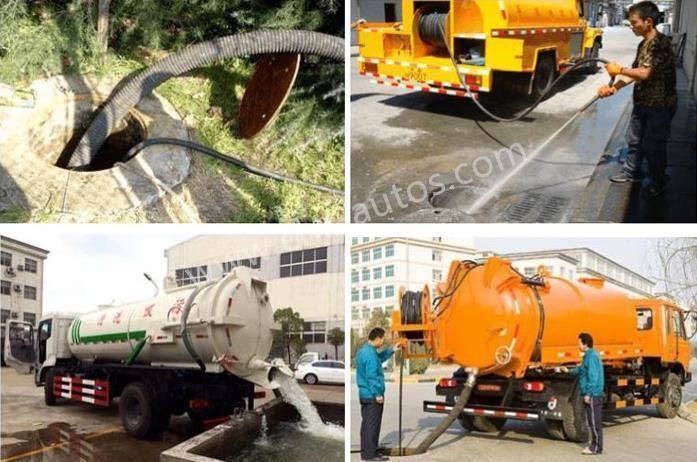

Working Scene
Company Introduction
Certificates
Our Overseas Exhibition
Contact Flora for more details: +86-13971508969 (Mobile)
