• Model NO.：CLW5087GYK
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：4700 mm
• Engine Power：180HP
• Tank Capacity：10cbm 10m3 10cubic Meter 10000liters 10t 12t
• Tank Material：6mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：10cbm, 11cbm, 12cbm, 10ton 11ton 12ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Vehicle DescriptionOverall dimensions 8300*2490*3800mmGVW 15800kgCurb Weight8805kgChassis brandDONGFENG TianjinTraction type4*2Tanker DescriptionTankerCapacity10500LMaterial6mm thickness, high quality carbon steelStructureWelding, vacuum tank, CylindricalPumpTypeDouble vacuum pumpFlux68(L/S)Rating speed800~1000(r/min)Shaft power5(kw)FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiencyManufactureHangzhou WEILONG Pump Co., Ltd.PipeSuction and discharge pipeSpecial functionSuction time ≤ 5mins,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45Standard configurationEquipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.Optional configurationTanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tankChassis DescriptionChassis modelDongfeng TianlongCabSleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.  Traction typeLHDDrive type4*2Wheelbase4700mmTire specification10.00R20Tire quantity6+1 unitsEngineEngine modelCUMMINS 180HPEmission levelEuro 2or3Displacement/output4500ml/132kwHorse power180hpGear boxModelDongfengNumber of gears6 forward gears& 1 reverse, synchronizedBrake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brakeAxleFront7T- Elliot type, I beam sectionRear10T*2-Single reduction, ratio 5.143SuspensionFront8/8- Leaf spring with shock absorberRear9/9-Leaf springFuel tankerTypeSteel fuel tank, with lockable capCapacity300L
Reference Photos



Main Structure

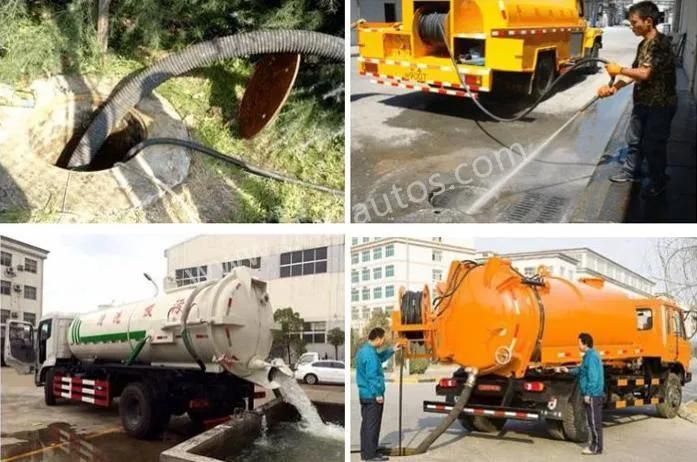

Working Scene


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
