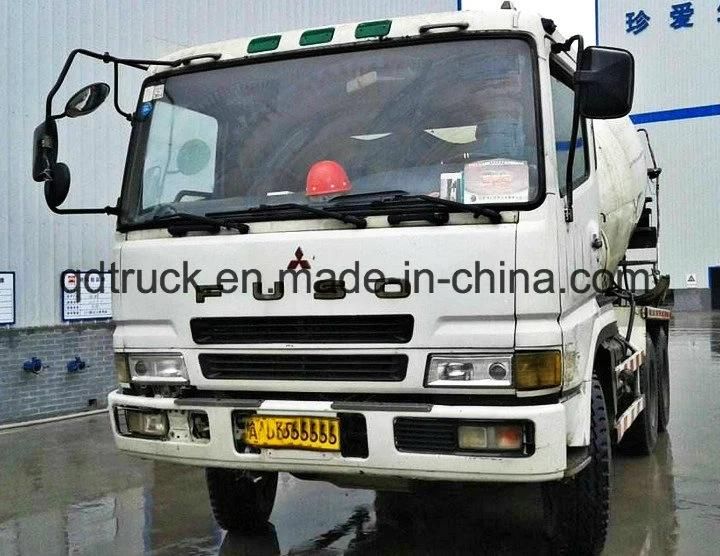

6-16m3 Concrete mixer truck used/ cement mixer truck used
QINGDAO HETANCH TRUCK CO., LTD.- Certification:ISO9000, CCC
- Transmission Type:Manual
- Emission Standard:State four
- Displacement:9
- Payload:20T
- Fuel:Diesel
Base Info
- Model NO.:ZZ5257
- Drive Mode:6x4
- Maximum Horsepower:300-400hp
- Condition:New
- Truck Type:cement mixer Truck
- Type:concrete mixer Truck
- Driving:6X4
- Steering:LHD,RHD
- Cabin:HW76
- Capacity:6,7,8,9,10,12,14 m3
- Transport Package:in Nude
- Specification:CCC
- Trademark:HOWO
- Origin:China
- HS Code:87042300
- Production Capacity:300 PCS, Month
Description
MAIN DESCRIPTION
Overall Dimensions
9780mm*2496mm*3990mm(L*W*H)
Tare Weight
13950kg
Payload
28000kg
Front Overhang
1500mm
Rear Overhang
2880mm
Wheelbase
4000mm+1400mm
Track (F/R)
2022mm/1830mm
CHASSIS
Chassis Brand
SINOTRUK HOWO
Chassis Model
ZZ1257N4048W, driving type 6x4
Cab
HW76, left hand drive, air-conditioner, one sleeper
Engine
SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission
HW19710, No. of speeds: 10 forward 2 reverse
Steering
German ZF8098, turning system pressure 18MPa
Rear Axle
HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires
Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel
Brakes
Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume
10cbm
Water Tank Volume
440L
Hydraulic Pump
Brand: ARK, Italy
Motor
Brand: ARK, Italy
