• Model NO.：ZZ
• Drive Wheel：4x2
• Condition：New
• Colour：Optional
• Usage：Aerial Working Platform
• Driving Type：Rhd,LHD
• Boom：10-24m
• Engine：Cummins Diesel
• Brand：HOWO
• Brake：Air Brake
• Horse Power(HP)：170HP
• Sections：Three
• Axle No.：2
• Transport Package：Nude
• Specification：ISO
• Trademark：HOWO
• Origin：China
• Production Capacity：20000 Units,Month

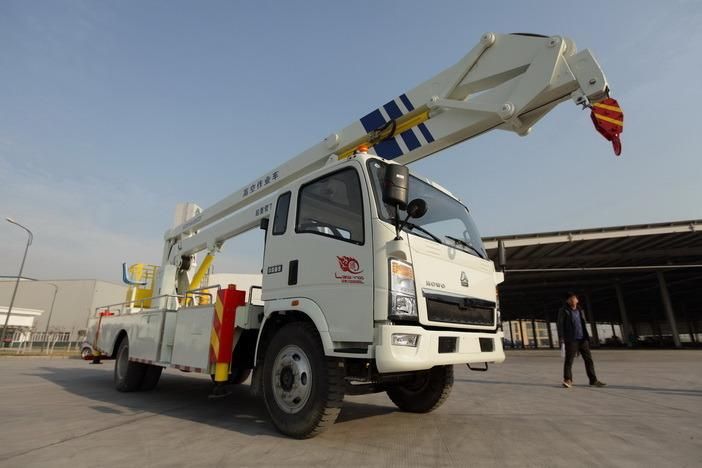

Overview Product Description

1. HOWO
2. RHD/LHD
3.10M 12M 14M 20 M 24M
4. High quality chassis, 4X2 6X4 8X4 drive type, LHD/RHD
5. Cummins diesel 170hp engine, Euro 2 emission standard
6. Boom: Articulated boom, Three sections.
7. Mounted a bucket at the end of boom, rated load weight 200kg.
8. Operate this truck at the bucket or side of the first boom.
9. CCC ISO BV approved, accept customization service.

technical dataChassisBrandHOWOChassis modelDFL1120BDrive model4×2, LHD/RHDTire9.00-20BrakeAir brakeEngineModelB170-33Horse Power(hp)170Displacement(cc)/Power(kw)5900/125EmissionEuro 3

Main ParameterOverall dimension (L*W*H/mm)9400*2498*3790Wheelbase(mm)5000Axles No.2Weight(kg)GVW10950Curb weight10755Leaf spring No.7/9+6Approaching/Departure Angle(°)24/12Front/Rear trace(mm)1880/1800Front/Rear suspension(mm)
1430/2496Max speed(km/h)95Gear box6 forward, 1 reverseFront/Rear Axle Load4320/6630Max. Working height20mRotation angle360°Max. operation radius(outreach)6.3mBucket rated load/passengers200kg /2Lifting hook tonnage1000kgMax lifting height6.5mHydraulic outriggers/legs4pcsPaintHigh quality ,color as customer's requestCabDouble row, 4 doors, with A/CShipping
