• Model NO.：CAMC CM6D18 340 31
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New

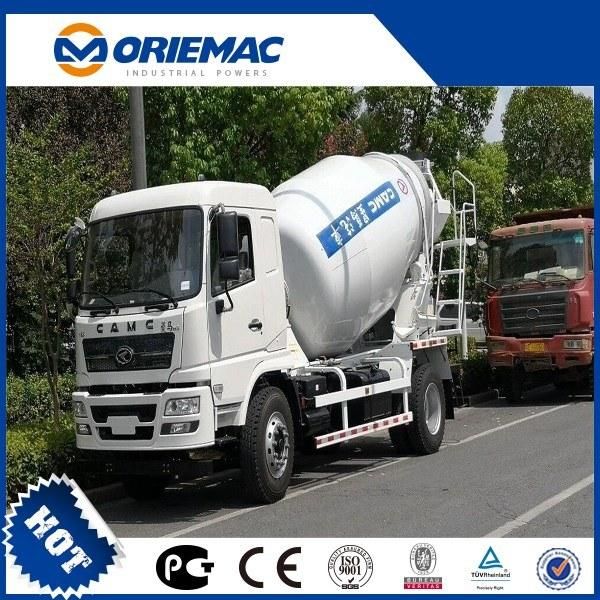

• Product Name：Camc 10m3 Mixer Truck
• Kerb Mass：12800kg
• Tyre：11.00r22.5
• Mixer Drum：10m3
• No. of Cylinder：6
• Transport Package：Nude Package
• Specification：ISO, CE
• Trademark：CAMC
• Origin：Anhui
• HS Code：84291190
• Production Capacity：1500 Units, Year

SpecificationChassisParameterOverall dimension(mm)9800×2500×3950Kerb mass12800kgNumber of axle3Tread (mm)2,065/1,860/1,860Wheelbase (mm)3600+1350Min.ground clearance (mm)255Crew2PayloadFront: 7500kg
Rear: 16,000kg x2(Benz Technology Ratio:5.263)Max. Speed (km/h)78Max. Grade ability (%)30EngineModelCAMC CM6D18 340 31TypeDesigned By AVL company,Germany technology, Boschand Wabco air
compressor , Manufacture in camcMax. Power250kw/1900Max. T Qrgue1570Nm/1,250No. of cylinder6Bore x Stroke118mmx150mmDisplacement9.84LController typeMechAxlesFrontStub axle with double T-cross section  Capacity: 7,500KGRear16T,Hub reduction and final drive ratio: 5.263Capacity2×16,000KGBrake systemServiceFull Air Brake, Dual circuitParkingSpring actuator at rear wheelsAuxiliaryExhaust  brakeFuel Tank (Mounted on offside of the frame)Capacity380LMaterialgalvanized steelSteering and TyreDriving positionRight hand or Left Hand drive Tyre11.00R22.5(GITI Brand or same level)SuspensionFront suspensiontapered leaf spring 9 semi-elliptic leaf spring Rear suspensiontapered leaf spring 12 semi-elliptic leaf springClutchBrandChinese famous brand,provide for armyTypeHydraulic control with air assistedPlate diameterdry single plate with diaphragm 430Electrical SystemBatteries2*12 Volt - 150 AH*2Alternator24 Volt/70AStarter24 Volt/7.80kwFrame(mm)
TypeParallel, tapered channel section type with
       Reinforcements, stiffeners and cross membersSize (HxW)310*90(8+8),double frameWidth (front/rear):976/850UpperMixer Drum10M3Hydraulic systemZF reducer+REXOLE PUMP,original from GermanyMaterial of drum 16MnCu,bao or wu steel(top 1 in china)OthersLoading rate(%):                       60
Feeding speed(m3/min):                >2.7
Discharging speed(m3/min) :            >1.2
Residue rate(%):                      <1
Rotation speed of mixing drum(rpm):      0 - 15
Inclination of mixing drum:                 13.5°
Model/brand/origin of pump:                Rexroth/Germany
Model/brand/origin of reducer:              ZF/Germany

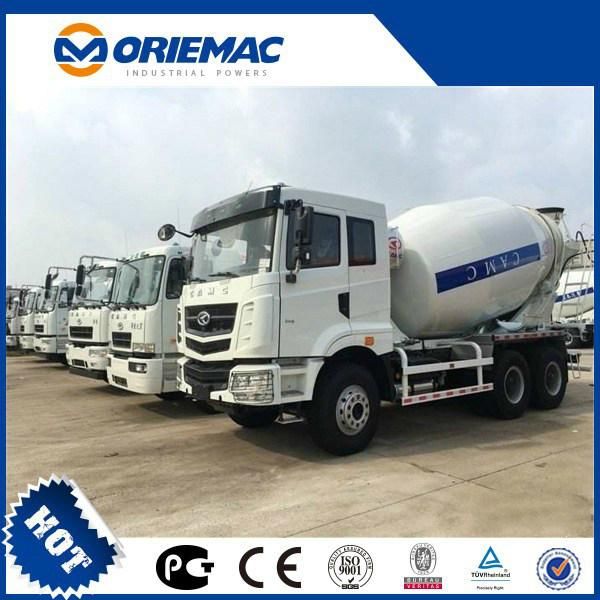

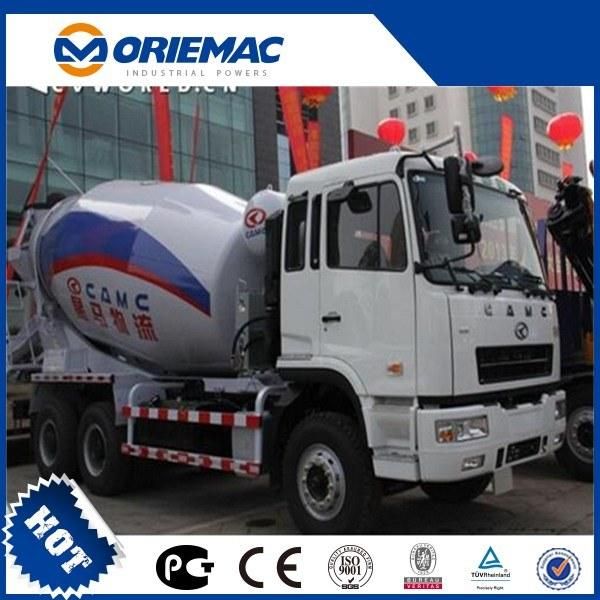

PHOTOS:
