• Model NO.：3138BY
• Drive Mode：8x4
• Maximum Horsepower：300-400hp
• Condition：New
• Carriage Volume：16 Cbm
• Operating Weight：16825 Kg
• Steering System：Z-F8098
• Power：276 Kw
• Dimension：10950*2500*3990 mm
• Wheel Base：1500+3850+1450 mm
• Gearbox：Manual Operated
• Engine Model：Wp10.375
• Tires：12.00r20 Radial
• Warranty：12 Months
• Transport Package：Suitable Package for Shipment
• Specification：Within 15days delivery
• Trademark：Beiben
• Origin：Inner Mongolia, China
• HS Code：87054000
• Production Capacity：500 Set,Sets , Month

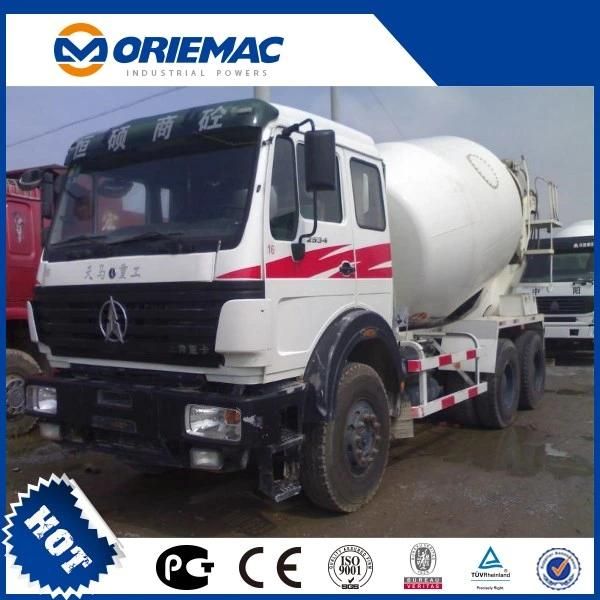

3138BY /8×4/1500+3850+1450/Long-Flat Roof CabDimension10950*2500*3990mmApproaching angle/Departure angle16/15°Overhang(front/rear)1515/2685mmWheel base1500+3850+1450mmMax speed90km/hCurb weight16825kgLoading capacity14045kgSlope climbing capabilityMax.40%EngineModelWP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injectionDisplacement9.726L/DieselStroke126/130mmMax. power276/2200 (kw/rpm)Max.torque1460/1200-1600(Nm/rpm)Emission stantardEuro IIIFuel tanker capacity300LClutch430, Single dry frictional disc,Hydraulic boostingGearbox9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizerGear ratio of gear box12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21Suspension systemFrontNon-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcsRearNon-free standing stablization spring, balance suspension system, 13pcsBrake systemService brakeBrake gap can be adjusted automatically, double circulation air brake systemAssistant brakeEngine exhaust brakePark brakePotential springs pressing on middle and rear wheelsSteering systemTAS85,whole circulation in ball, hydraulic boosterFrameFish belly shape, variable width, variable sectionsFront axle (German Technology)Double-shoe pneumatic brake, non-driving steering axleMiddle and Rear axle (German Technology)Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axleTyre12.00R20 RadialElectrical systemBattery2X12V/135AhGenerator28V-35AStarter5.4Kw/24VCabinV3 Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C Main technical parameters of concrete mixerDrum performance parameterGeometric Volume m326.1 m3Effective Volume m316 m3Filling Ratio %61.30%Gradient of the Drum °9°Filling speed m3/min≥3Discharging Speed m3/min≥2Surplus Ration %<1%Range of Slump mm20~300Hydraulic SystemPumpEaton 64 (ACA642337)MotorEaton 64 (HHD6423321)Gear BoxPMB7.8SPWater supply systemVolume of water tank400LWater supply typeAir pressure Type
