Specialized Vehicle

Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price

Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd.
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload:3tons 5tons 8tons 10tons
  • Emission Standard:Euro 2
  • Transmission Type:Manual
  • Horsepower:<150hp
  • Fuel:Diesel

Base Info

  • Model NO.:refrigerated van trucks
  • Bearing Capacity:Small
  • Car Type:Van
  • Condition:New
  • Product Name:Sinotruck 4X2 Refrigerated Van Trucks
  • Freezer Brand:Thermo King, Hanxue, Korea Brand etc
  • Loading Capacity:3 Tons, 4 Tons, 5 Tons 6tons 8tons 10tons 12tons
  • Material Type:8cm Middle Polyfoam Insulation
  • Body Material:Strong Fiberglass Inner and Outer Wall
  • Truck Brand:Dongfeng FAW Foton Sinotruk JAC Isuzu
  • Truck Drive Wheel:4*2 4*4 6*2 6*4 6*6 8*4 8*6 8*8
  • Emission Standardruck:Euro II
  • Certifications:ISO9001 CCC ASME
  • Applications:Freezer Food, Fruit, Beer, Fish, Vege
  • Transport Package:Nake Package RO-RO Ship Container Ship
  • Specification:11980*2600*3620mm
  • Trademark:Chusheng
  • Origin:China
  • HS Code:8705909990
  • Production Capacity:366660

Description

Basic Info.

Model NO. refrigerated van trucks Bearing Capacity Small Car Type Van Condition New Product Name Sinotruck 4X2 Refrigerated Van Trucks Freezer Brand Thermo King, Hanxue, Korea Brand etc Loading Capacity 3 Tons, 4 Tons, 5 Tons 6tons 8tons 10tons 12tons Material Type 8cm Middle Polyfoam Insulation Body Material Strong Fiberglass Inner and Outer Wall Truck Brand Dongfeng FAW Foton Sinotruk JAC Isuzu Truck Drive Wheel 4*2 4*4 6*2 6*4 6*6 8*4 8*6 8*8 Emission Standardruck Euro II Certifications ISO9001 CCC ASME Applications Freezer Food, Fruit, Beer, Fish, Vege Transport Package Nake Package RO-RO Ship Container Ship Specification 11980*2600*3620mm Trademark Chusheng Origin China HS Code 8705909990 Production Capacity 366660

Product Description

Popular Sinotruck HOWO 4X2 refrigerated cold room van trucks 5tons price

Refrigerator truck:
Refrigerated truck is a full sealed van used to transport the frozen food or fresh goods, and is also kind of special transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.

Transportation category:
Refrigerator truck is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug etc.

Construction:
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.
For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.
Refrigeration unit classification:
non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using external refrigerator,
for a few mini refrigerated truck,using internal refrigerator.

Choice for insulated body:
good thermal insulation property,light weight,not easy to be damaged.

Vehicle classification:
According to the different chassis model, we have minitype,middle-sized,large-scale etc refrigerator trucks for your choise with different brands.

Vehicle steering direction:
RHD or LHD is available.




Refrigerator Van Truck Technical Parameters
Item No.Parameters
Overall Dimension8995×2440×3550 (mm)
Gross Vehicle Weight15995 kg
Curb Weight5995 kg
Loading Weight10,000 Kg
Wheel Base5200 mm
Front/rear Tread1240/2555mm
Approach/Departure Angle17/20 degree
Front Axle5355 kg
Rear Axle10640 kg
Engine4110 Yucai engine
Engine horsepower160 HP EURO II
Max Driving Speed95 km/h
Cabin3 Passenger allowed
Tire9.00R20 (6 pieces)
Van Box Size6800×2300×2300
Tank MaterialStrong Fiberglass Inner and Outer Wall,
with 80mm Middle Polyfoam Insulation.
RefrigeratorHigh Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 10 centi-degree

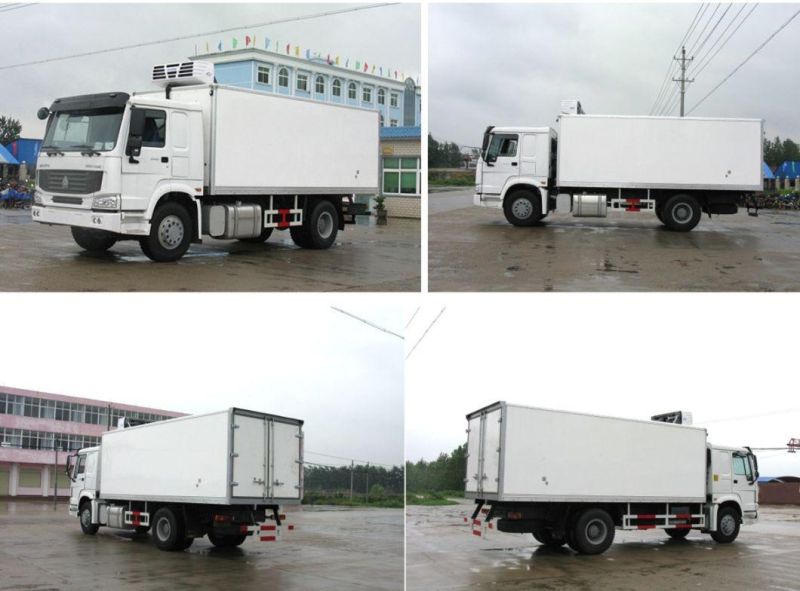

Detailed pics for refrigerated van truck from different angle
Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price


Advantages of Insulated Freezer Van body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

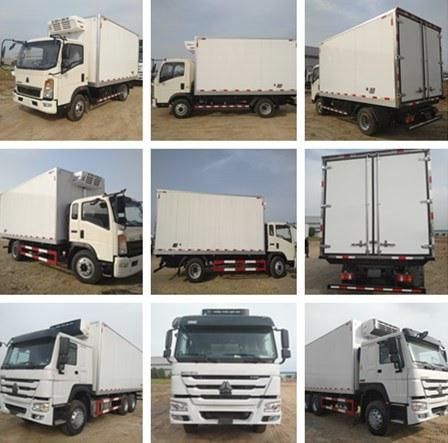

Different Payload refrigerated van truck we can do:
Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price

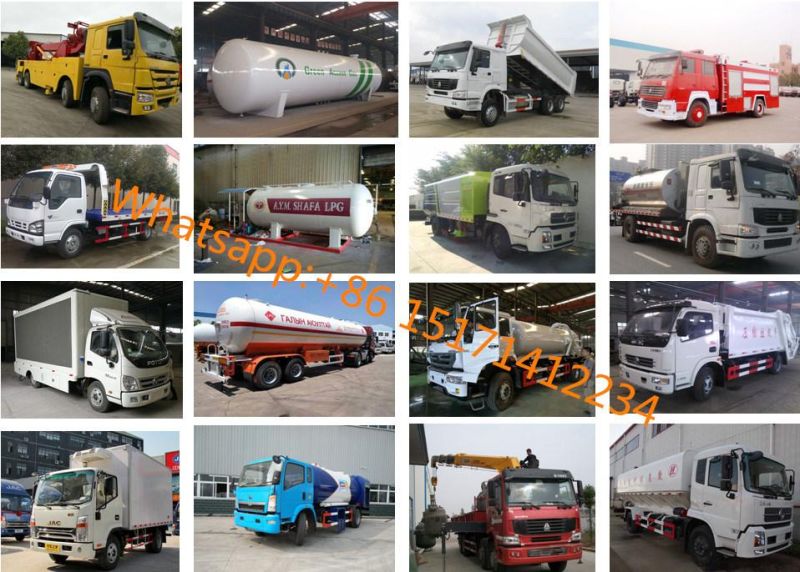

Relevant Products

1.Water Truck  2.Insulation Truck and Milk Truck 3.Sewage Suction Truck  4.Garbage Truck

5.Manlift Truck/Aerial Platform Truck  6.Truck with Crane 7.Fuel Truck/  8.Chemical Truck

9.Bulk Cement Truck  10.Concrete Mixer Truck  11.Fire Truck  12.Dump Truck

13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed

16.Tractor  17.LPG Truck  18.Trailers
Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price

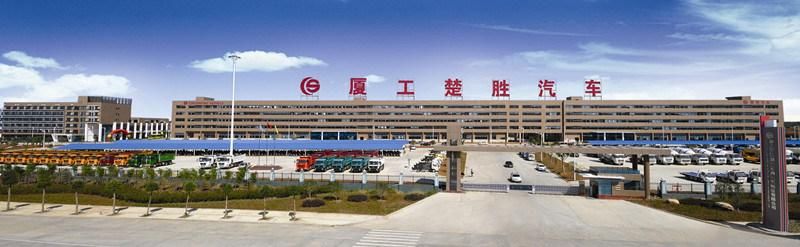

Company Information
Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price

1.     Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China.

        We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.     Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.     We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
