Specialized Vehicle

Euro3 Foton DFAC 4X2 3-8tons Flatbed Tow Truck Hydraulic Towing Truck

Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd.
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard:Euro 2
  • Transmission Type:Automatic
  • Towing Tonnage:8T
  • Fuel:Diesel
  • Bearing Capacity:Powered Mechanical

Base Info

  • Model NO.:DFA1080SJ12D3
  • Brand:Dongfeng
  • Condition:New
  • Product Name:Flatbed Tow Truck Hydraulic Towing Truck
  • Diamension:7420X2300X2540mm
  • Loading Weight:2000-10000kgs
  • Type:One-to-Two Equipment Towing Truck
  • Type of Fuel:Diesel Euro 3
  • Engine Model:4-Stroke Direct Inject 4-Cylinder in-Line Water Co
  • Driving Type:4X2 6X4 8X2 8X4 Plateform Wrecekr Truck
  • Tow Truck Tire:7.50r16, 6PCS + 1 Spare Tire
  • Tow Truck Configuration:Double Winding (8 T) with The 3.1 M Long (Arm), Hy
  • Color:Red White Optional
  • Transport Package:Nake Package Used RO-RO Ship Container Ship
  • Specification:Diamension 7420X2300X2540mm
  • Trademark:Chusheng
  • Origin:China
  • HS Code:8701200000
  • Production Capacity:160022

Description

Description

Dongfeng 4x2 Platform Wrecker

Drive Model

4x2

Vehicle Main Dimensions

Dimensions(L x W x H)mm

7420X2300X2540

Wheel base (mm)

3800

Overhang (front/rear) (mm)

1180/2440

Wheel track (front/rear) (mm)

1835/1640

Approach/Departure angle

20/10

Weight in KGS

Curb Weight

5495

GVW.

7490

Max. driving speed(km/h)

90

Engine

Model

CY4102

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

120HP

Emission standard

Euro III

Gearbox

5 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

180

Tire

7.50R16 , 6pcs + 1 spare tire

Brakes

Exhaust brake

UPPER

Platform Organ

LXW(mm)

5400x2100

Platform power stroke(mm)

2680

Min angle

7.6

Max lifting capacity(kg)

3000

Winch rating pulling capacity(kg)

4000

Length of steel(m)

21

Hoisting Organ

Max under-hoisting capacity(mm)

1300

Rating under-hoisting capacity(mm)

1005

Fully extended max under-hoisting capacity(mm)

700

Rating under-pulling capacity(kg)

6400

With auxiliary wheels, hooks, bundling belt, automatic sliding plate;

Caution light, air condition are optional.

Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.
Wrecker truck basically is refitted from  the loading goods second class chassis, according to the wrecker truck's structure,

it can be divided into towing, loading, lifting, rescue (single arm type and arms type) wrecker truck. It has multiple functionssuch as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc

FAQ For Wrecker Truck:

1. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment.
If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can you supply some quick-wear trailer parts?
Yes, we can supply  the trailer parts as your request,such as traction, traction pin, balance beam and
semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc

4. What's the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.

5. How to guarantee customers get the goods smoothly after they pay?
Don't worry, dear. We joined the trade assurance,you can place the order by trade assurance,if we don't delivery
products, the deposit will return to you.

6. How can you ensure the quality of the products?
Don't worry, dear. We joined the trade assurance,if the products have quality problem when you received the goods,
you can get advance payments.

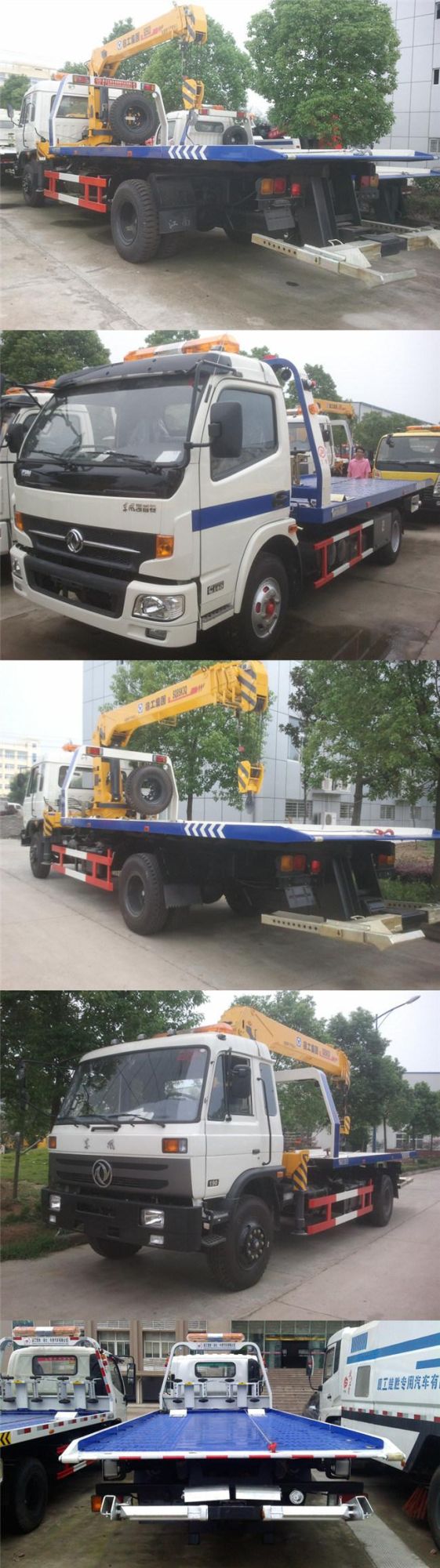

Tow Truck Details View:
