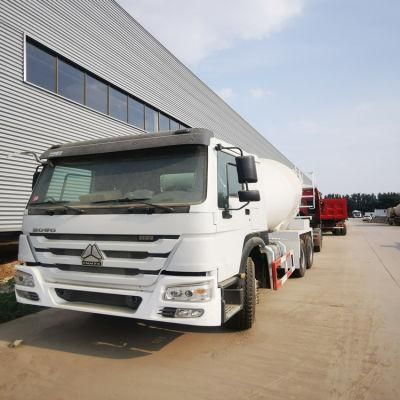

6X4 CONCRETE MIXER TRUCK |
Model | ND5257GJBZ |
Driving type | LHD |
Driver's cab | Long cabin/short cabin , single sleeper, Air conditioner, Dash board with all necessary gauges |
such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), |
NG90 Headlight, Sun protection on cabin |
Engine | Maker: WEICHAI |
|
Engine model: WP10.340E32 340hp |
EUROIII EGR emission standard |
Maximum output: 340HP@2200 rpm |
Number of cylinder:6 |
Displacement: 9.726L |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | FULLER Brand 9T--160 |
Front Axle | 7.5 tons |
Rear Axle | 13ton Double-shoe pneumatic brake, ductile casting casing, with hub redactor, |
double reduction driving axle. |
Ratio: 5.263 |
Steering | TAS85 |
Wheel & Types | Tyres: 12.00-20 Bias tyre |
Spring | 10/13 |
Electrics | Operating voltage: 24V, negative grounded |
Dimensions in mm | Wheel base: 3800+1450 |
Overall size: 9300×2500×3900 |
Weight in kg | Kerb weight: 13650 |
Permissible trailing capacity: 25000 |
Performance | Maximum driving speed(km/h): 85 |
2538BY /6×4/4300+1450/Long-Flat Roof Cab |
Dimension | 10075*2500*3980mm |
Approaching angle/Departure angle | 16/20° |
Overhang(front/rear) | 1515/2810mm |
Wheel base | 4300+1450mm |
Max speed | 90km/h |
Curb weight | 15950kg |
Loading capacity | 8920kg |
Slope climbing capability | Max.40% |
Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement | 9.726L/Diesel |
Stroke | 126/130mm |
Max. power | 276/2200 (kw/rpm) |
Max.torque | 1460/1200-1600(Nm/rpm) |
Emission stantard | Euro |
Fuel tanker capacity | 300L |
Clutch | ∮430, Single dry frictional disc,Hydraulic boosting |
Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 |
Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
Rear | Non-free standing stablization spring, balance suspension system, 13pcs |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake |
Park brake | Potential springs pressing on middle and rear wheels |
Steering system | TAS85,whole circulation in ball, hydraulic booster |
Frame | Fish belly shape, variable width, variable sections |
Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle |
Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
Tyre | 12.00R20 Radial |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A |
Starter | 5.4Kw/24V |
Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |

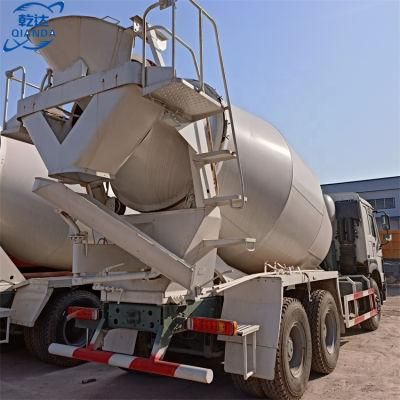

Main technical parameters of concrete mixer |
Drum performance parameter | Geometric Volume m3 | 19.2 m3 |
Effective Volume m3 | 12 m3 |
Filling Ratio % | 65.00% |
Gradient of the Drum ° | 15° |
Filling speed m3/min | ≥3 |
Discharging Speed m3/min | ≥2 |
Surplus Ration % | <1% |
Range of Slump mm | 20~300 |
Hydraulic System | Pump | Eaton 64 (ACA642337) |
Motor | Eaton 64 (HHD6423321) |
Gear Box | PMP7YSP |
Water supply system | Volume of water tank | 400L |
Water supply type | Air pressure Type |
3138BY /8×4/1500+3850+1450/Long-Flat Roof Cab |
Dimension | 10950*2500*3990mm |
Approaching angle/Departure angle | 16/15° |
Overhang(front/rear) | 1515/2685mm |
Wheel base | 1500+3850+1450mm |
Max speed | 90km/h |
Curb weight | 16825kg |
Loading capacity | 14045kg |
Slope climbing capability | Max.40% |
Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement | 9.726L/Diesel |
Stroke | 126/130mm |
Max. power | 276/2200 (kw/rpm) |
Max.torque | 1460/1200-1600(Nm/rpm) |
Emission stantard | Euro |
Fuel tanker capacity | 300L |
Clutch | ∮430, Single dry frictional disc,Hydraulic boosting |
Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 |
Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
Rear | Non-free standing stablization spring, balance suspension system, 13pcs |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake |
Park brake | Potential springs pressing on middle and rear wheels |
Steering system | TAS85,whole circulation in ball, hydraulic booster |
Frame | Fish belly shape, variable width, variable sections |
Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle |
Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
Tyre | 12.00R20 Radial |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A |
Starter | 5.4Kw/24V |
Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
Main technical parameters of concrete mixer |
Drum performance parameter | Geometric Volume m3 | 26.1 m3 |
Effective Volume m3 | 16 m3 |
Filling Ratio % | 61.30% |
Gradient of the Drum ° | 9° |
Filling speed m3/min | ≥3 |
Discharging Speed m3/min | ≥2 |
Surplus Ration % | <1% |
Range of Slump mm | 20~300 |
Hydraulic System | Pump | Eaton 64 (ACA642337) |
Motor | Eaton 64 (HHD6423321) |
Gear Box | PMB7.8SP |
Water supply system | Volume of water tank | 400L |
Water supply type | Air pressure Type |
