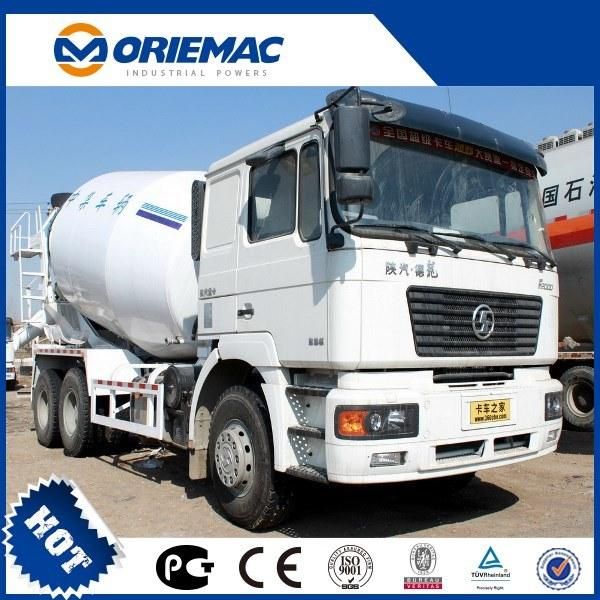

• Model NO.：10CBM Cng Cement Concrete Mixer Truck
• Payload：30T
• Fuel：Natural Gas
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Volume of Mixer：10m3
• Transport Package：Nude Packing
• Specification：ISO, CE, GOST
• Trademark：shacman
• Origin：China
• Production Capacity：100 Units,Month

Basic Information

Chassis model

SX5255GJBJR404

Cab

Flat head ,single row with one berth

Drive position

Left hand drive

Over Dimensions(L×W×H)(mm)

9995×2500×3985

Curb mass(kg)

13700

Wheelbase(mm)

3975+1400

Drive style

6x4

Tread(front/rear)(mm)

2036/1850/1850

Approach/Departure angle(°)

20/19

Air condition

Yes

Leaf-spring system

9/12

Maximum speed (km/h)

77

Engine

Engine model

Fast brand 9JS119, 9 forward gear and 1 reverse gear

Tyre

Tire specifications

318/80/R22.5

Number of tyres

10+1 Spare tire

Mixing

drum

volume of mixer

9 10 12m3

Rotating speed

6-12r/min

Feed rate(m3/min)

≥3

Discharge(m3/min)

≥2

 Discharge residual percentage

≤0.7

Water supply system

Type of water supply

air pressure
