• Model NO.：CLW5314
• Drive Mode：8x4
• Maximum Horsepower：300-400hp
• Condition：New
• Delivery Time：Shipped in 30 Days After Payment
• Brake：Air Brake
• Material：High Strength Steel
• Hydraulic Motor：Eaton, Sauer or Chinese Brand
• Axle Load：7500 , 16000kg
• Warranty：One Year
• Mixer Drum：12m3, 14m3, 16m3, 18m3
• Hydraulic Pump：Eaton, Sauer or Chinese Brand
• Reducer：Zf, Bonfiglioli or Chinese Brand
• Transport Package：RO-RO Ship, Bulk Ship, Container
• Specification：11800*2490*3980 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Unit,Month

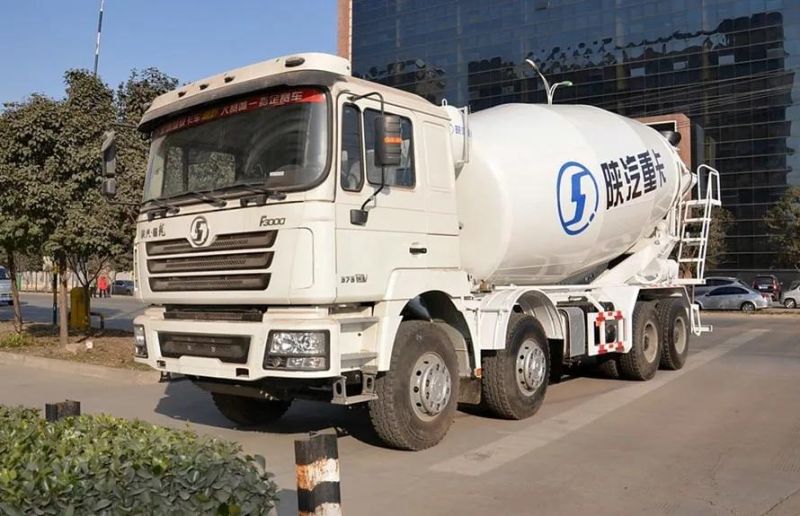

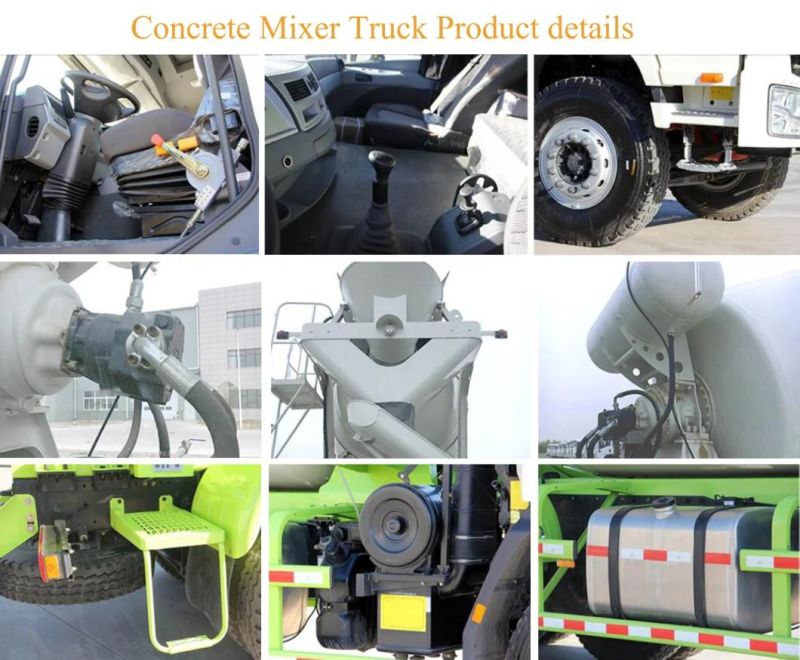

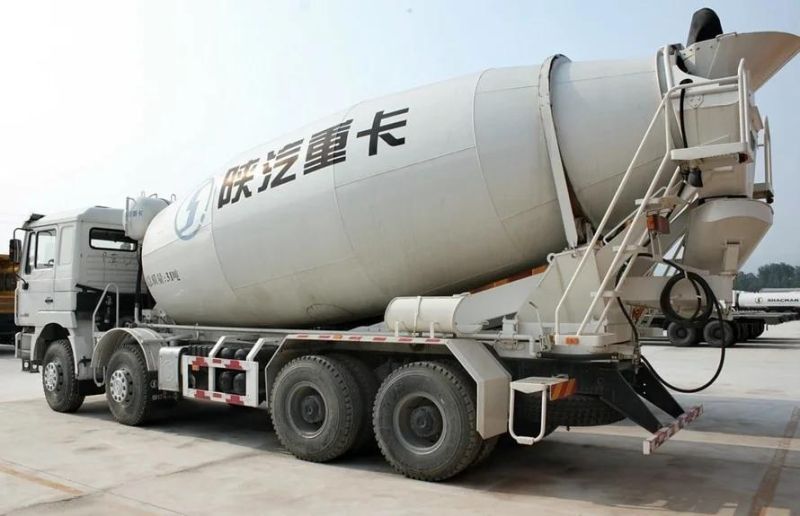

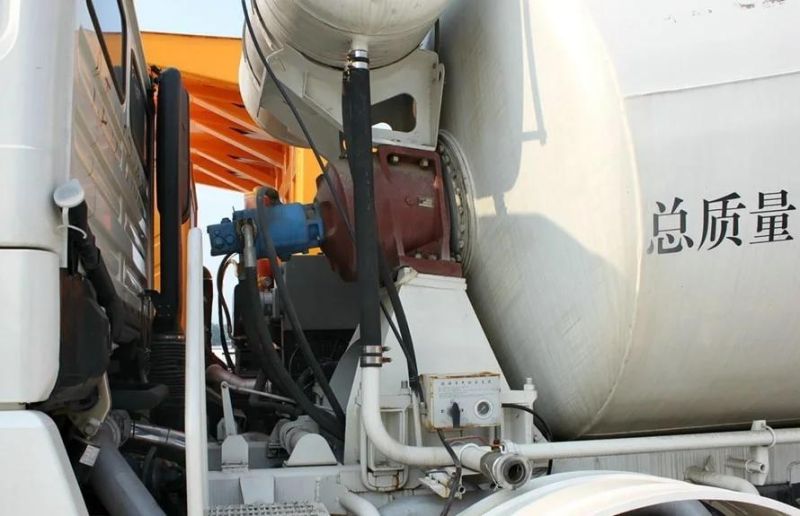

ConditionNew condition/Left hand drive/8X4ChassisBrandShacmanGross vehicle weight31000 kgCurb weight(kg)17500 kgWheelbase(mm)2600+4350+1535mmDimensions(mm)11800×2490×3980 mmAxle Load(kg)7500/ 16000kgMax. driving speed(km/h)90 km/hBrakeAir brakeTireNumber12pcs with one spare tireSpecifications12.00R20Fuel tank(L)380 LTransmissionFAST 12 Forwards and 2 Reverse with PTO                                              CabinIt can accommodate three people, With Air conditionerEngineBrandWEICHAIHorsepower(HP)375 HPEmission standardEuro 4UpperMixer drumMax. Capacity18 CBMMaterialHigh strength steel Q345, 6mm thicknessVaneMaterialAlloy steel Q345, 4mm thicknessSpecificationFeeding Speed (m3/min)≥2.8Discharging Speed (m3/min)≥1.2Discharging Residual rate(%)≤0.5Mixing Tank Rotating Speed (RPM)0-17Discharging range180° full rangeDriving systemOptionOption 1Option 2Option 3Hydraulic PumpUS EATON 5423SAUER 75SUNNY 56Hydraulic MotorUS EATON 5433SAUERSUNNY 63ReducerGermany ZF4300 brandItaly BonfiglioliChina local brandRadiatorChina local brandWater supply systemWater Tank Capacity (liters)400Water supply typePneumatic water supplyControl systemControl WayConnecting Rod ControllingStructure Features

1. 1. Color is optional

















   Products Catalog:

   1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station

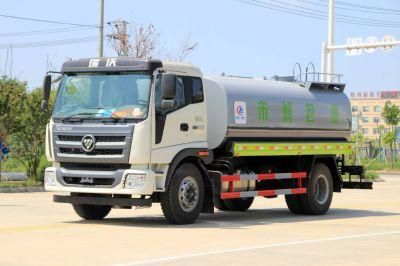

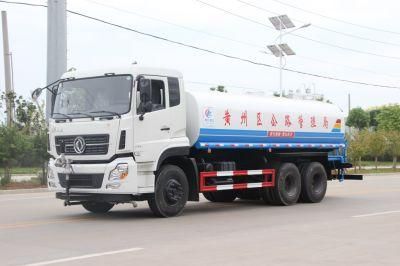

   2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
   3. Truck with crane / Truck mounted crane
   4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
   5. Fire Fighting Truck / Fire Truck / Fire Vehicle

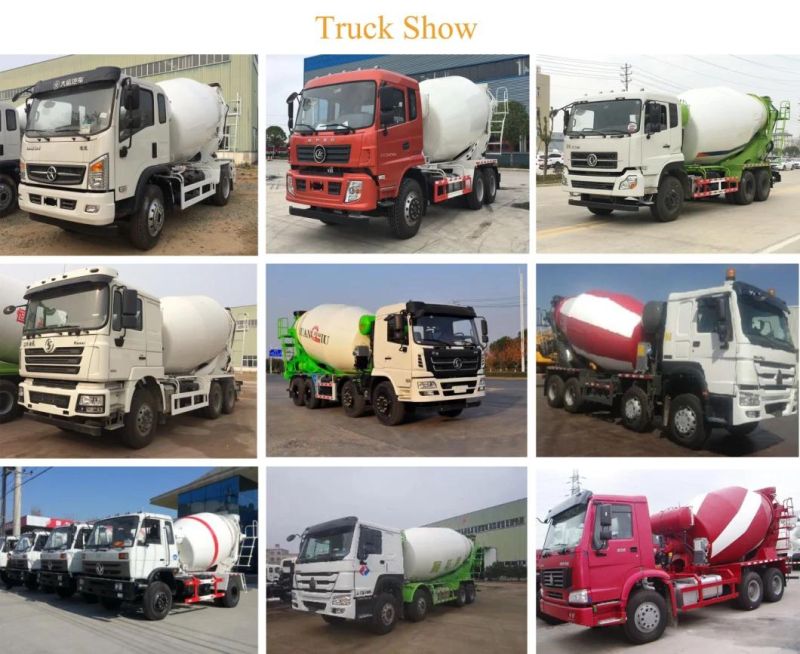

   6. Concrete Mixer Truck
