• Model NO.：CLW5210XFE
• Fuel：Diesel
• Drive Wheel：6×4
• Engine Capacity：6 - 8L
• Condition：New
• Chassis Brand：Dongfeng
• Horsepower：160 HP
• Color：Customized
• Water Sprinkle Width：14 M
• Cannon Range：28m
• Warranty：One Year
• Gearbox：8 Forward & 1 Reverse
• Water Pump：China Famous Brand
• Tire：11.00r22.5
• Tank Material：Carbon Steel or Stainless Steel
• Suction Height：7 Meters
• Front Axle：7ton
• Pump：Chinese Famous Brand
• Rear Axle：13ton
• Curb Weight：10350kg
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：10500*2500*3200mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500unit Per Month

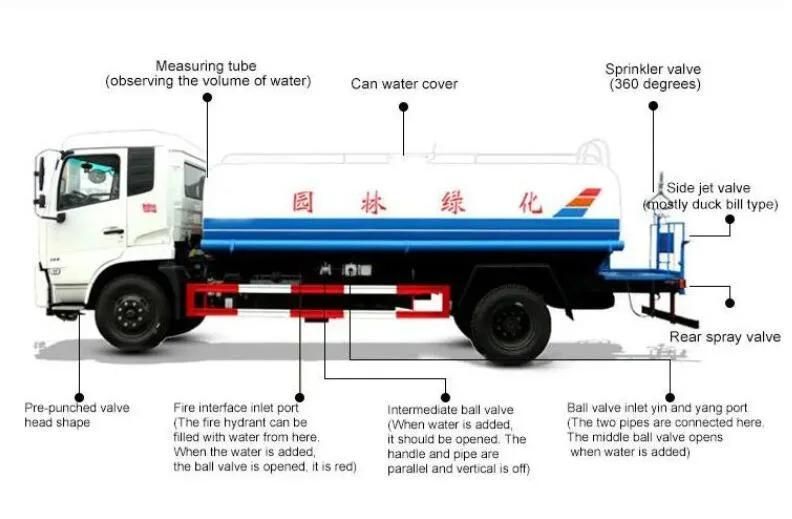

Chassis SpecificationItem No.ParametersChassis BrandDongfengOverall Dimension10260x2500x3200mmGross Vehicle Weight25000kgCurb Weight10335 kgLoading Weight14470 KgWheel Base4350+1350 mmCabinDongfeng D310, LHD, Central Lock, Electric Glass Window, 2 Passenger Allowed,EngineCummins ISD245 50 Diesel Engine,6 Cylinder in Line, 4 Stoke Inter cooling,Engine horsepower245HP, EURO 5Transmission/GearboxFAST, 9JS119T-B, 9 Forward & 1 Reverse GearAxles7Ton Front Axle, 2x10Ton Rear AxleBrake SystemPneumatic Steering GearPower Assistant,Tire11.00R20 16PR, 10 Pieces with 1 SpareFuel Tank350LitersABSWith ABSMax Driving Speed90 km/hWater TankerTank Volume:20m3 / 5,300 GalTank Material:5mm Q235B Carbon Steel,Sprinkling System:
1. Truck Pump: suction height >7m,
2. Full Tank Suction Time: 7 minutes
3. Front/rear/side Sprinkler: sprinkling width > 14m
4. Rear Side Sprinkler: sprinkling width 7 meters in 20 square meter coverage.
5. Rear Working Platform with Rear Ladder,
6. Water Cannon: Range >28m,
7. Other Parts: Water Valve1 piece, Fire Valve1 piece, Pipes 2 piece 3 meter long, Sprinkler 2 pieces

Function Specification:

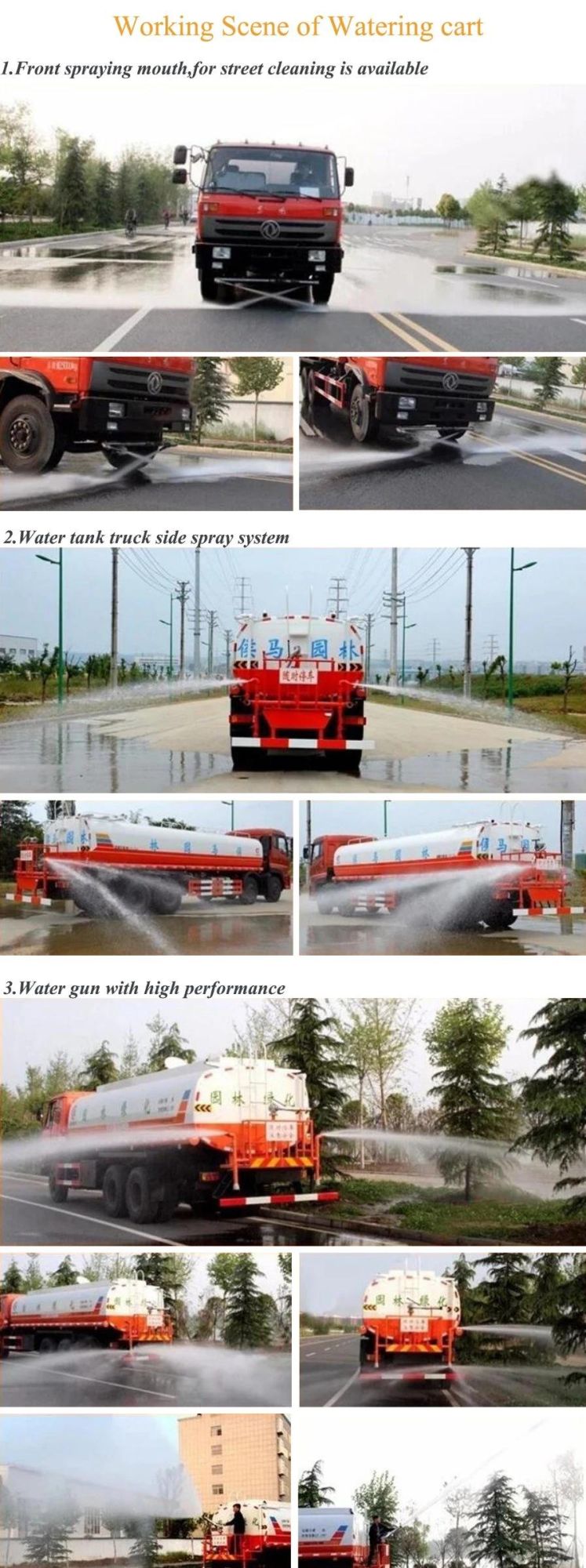

1. Front Spraying: to both right and left side, washing the dirt or dust off the road.
2. Back Spraying: dust control and wet the road.
3. Back Platform: High pressure gun which can watering tree and flower beside road.














Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
