Specialized Vehicle

7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

QINGDAO HETANCH TRUCK CO., LTD.
  • Warranty:1
  • Certification:ISO9000, CCC

Base Info

  • Model NO.:ZZ5257N4527
  • Transmission Type:Manual
  • Emission Standard:State four
  • Displacement:9
  • Payload:20T
  • Fuel:Diesel
  • Drive Mode:6x4
  • Maximum Horsepower:300-400hp
  • Condition:New
  • Power:Diesel engine mixer drum truck
  • Truck Type:Agitator Truck
  • Tire Design:Tubeless tyre, radial tire
  • Tire Certification:ISO concrete mixer truck
  • Drive Wheel:4WD cement mixer truck
  • Load Capacity:8,9,10,12m3 concrete mixer truck
  • Transport Package:Nude Packing
  • Specification:ISO
  • Trademark:FAW
  • Origin:China
  • HS Code:87054000
  • Production Capacity:30PCS,Month
  • Package size per unit product:9859.00cm * 2550.00cm * 3960.00cm
  • Gross weight per unit product:16580.000kg

Description

ItemParameterDeclared external dimension (mm)9400×2500×3990Chassis modelSino Truck ZZ1257N3847CCurb weight of complete crane (kg)Actual: 15340 (Declared: 15050)Rated load (Kg)24980Maximum vehicle speed (km/h)90/102Wheelbase (mm)3825+1350Front suspension /rear suspension (mm)1500/2725Approach angle/ departure angle (°)16/19Wheel track of front wheel (mm)2022,2041Wheel track of rear wheel (mm)1830/1830Tire12.00-20 Common tireAgitating volume (cubic meter)10Feed rate (cubic meter/minute)≥2.7Discharge rate (cubic meter/minute)≥0.65Discharging residual ratio (%)≤0.5Rotating speed of mixing drum (r/min)0-14Engine modelWD615.95ERated power of engine (kw/hp)247/336Air intake waySupercharging, inter-coolingClutchΦ430mm Single-sheet dry typeTransmissionHW15710Front axle (t)HF9Middle and rear axles (t)HC16 axlesFront suspensionNon-independent leaf springRear suspensionNon-independent leaf springCabHW76 flat-roofed and extended cab, equipped with single sleeping berthTire12.00-20 Common tireService brakeDual-circuit air brakeParking brakeAir brake braking by spring energy storage chamberAuxiliary brakingEngine exhaust brakeReductionTOP P68 reductionPumpARK Pump PV089 MHRMotorARK Motor MF089Product Details
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

Our Advantage
1) Manufacturer, more than 14yrs professional exporting experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custommade according to your design, or diversified needs.

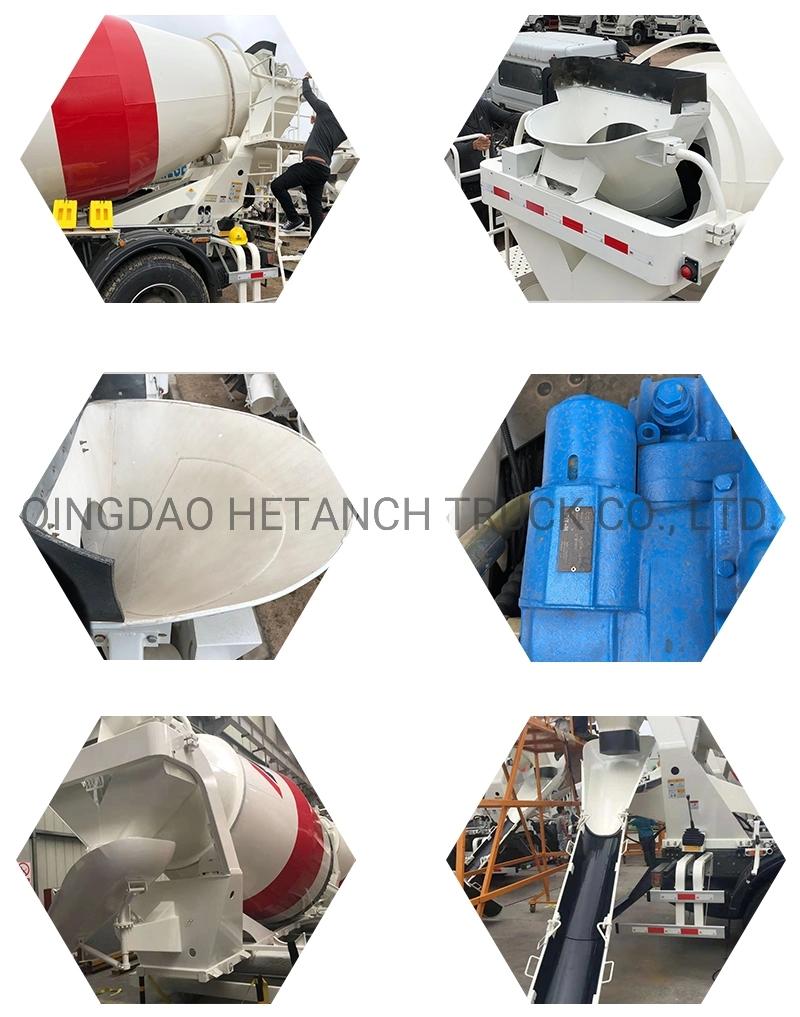

Product Parts
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

Certifications
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

Company Information

We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful  ,  Faithful  ,  Studious  ,  Innovative . Our progress never could leave your supporting. Warmly welcome your coming!
all types trucks, semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

Customer visit
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck

Packaging & Shipping
7 8 9m3 Cement mixer drum machine Agitator Truck/ 10m3 Concrete Mixer Truck
