Hot Sale heavy truck trailer/ 45, 000 Liters Water Transportation Vehicle
QINGDAO HETANCH TRUCK CO., LTD.- Warranty:1 year
- Fuel:Diesel
Base Info
- Model NO.:HTC9406GJZ
- Certification:ISO9000, CCC
- Emission Standard:Euro 2
- Condition:New
- Pay Load Capacity:45000L fuel transport trailer
- Type:Tank Semi-Trailer
- Material:Steel water transport trailer
- Scale:Heavy Duty water transport trailer
- Used for:Water, Food Oil, Milk transport trailer
- Components:Trailer Axles transport trailer
- Transport Package:Nude Packing, RO-RO Ship, Bulk Ship,
- Specification:ISO
- Trademark:SINOHTC
- Origin:Shandong
- HS Code:8701200000
- Production Capacity:200 Set,Sets , Month
- Package size per unit product:1240.00cm * 250.00cm * 360.00cm
- Gross weight per unit product:12600.000kg
Description
Technical Data
Weight Rating (kgs)
Tare Weight
12000
Pay Load
38000
Total Weight
50000
Dimension
Trailer
Overall Length
12480
Overall Width
2480
Overall Height
3800
Wheelbase
7000+1360+1360
Tank
Tank Dimension
Length12100 Max dia 2490 Min dia 2070
Total Volumem 3
46
Valid Volumem 3
45
Drift Diameterinch
System
4
Outlet
4
Material
Aluminum Alloy, stainless steel, carbon steel
End plate
6mm, by punching6mm
Spurn water
5mm, 20 inch manhole6mm
Parts for Tank
Manhole cover
3 sets of 400mm/Aluminum Alloy manhole fixed on top of Tank, with breather valve
Unloading valve
2 sets of DN80 fixed at button of Tank
Pipeline at button of tank
4seamless steel tube/Q235
Labeling system
Oil Type Indication
Anti-static electricity system
pulling, wire carrier, sheet copper (7 sheet-standard layout)
Other Parts

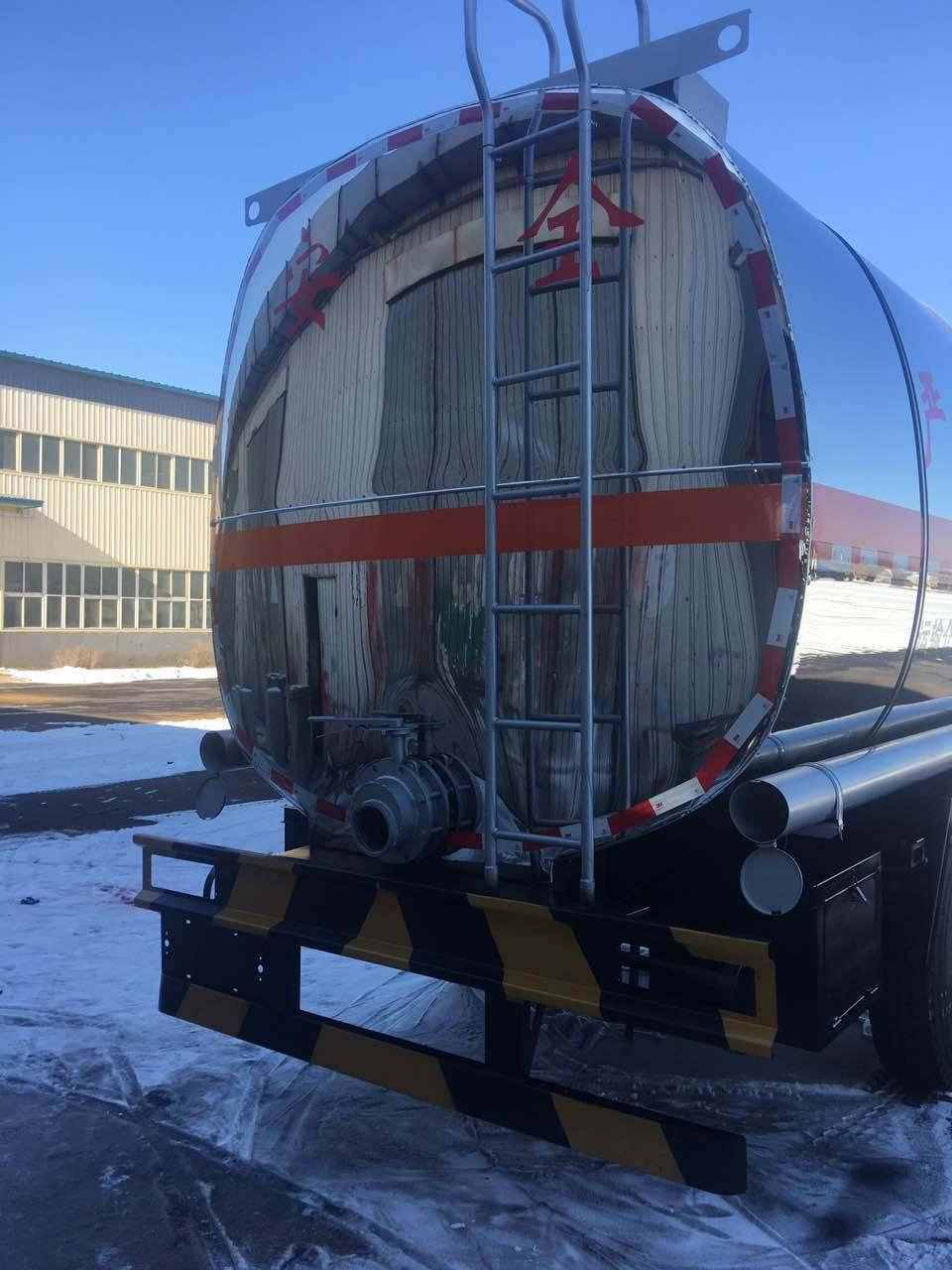

Ladder
1 unit at front of Tank
Guard on top of Tank
Zinc galvanized guard net
Oil hose box
Circular single hole tube, 1 unit on each side
Oil hose
2 unit, 3 x 6m size in black rubber
Side guard
cross bar-structure
Rear button guard
Fixed type
Work tank deck
Box type
Fire extinguisher box
2 units at the back of each side
Mud guard
Steel structure in trapezoid form
Lights and wire
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams
Heavy duty and extra durability designed;
Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
Axle
Three units of L1 (band)12 ton axle
Landing Gear
Two Speed Manual Operation
King Pin
One unit of 3.5SAE standard Jost bolt-in king pin
Suspension
SAF (band) German style mechanical Tri-axle suspension
with 11mm x 100mm 13- leaf springs
Pneumatic Braking System
A system with emergency brake and parking brake;
Dual line, air brake, piggyback spring on all axles;
Two units of WABCO RE 6 relay valve;
six units of T30/30 spring chamber;
two units of 40L air tank;
two units of standard copper air-connector.
Wheel rim
twelve units of 8.25.00R22.5rim
Tire
twelve units of 11R22.5 tubeless tyre
Painting
Sand blasting processing on rust cleaning
One coats of anticorrosive
Two coats of finish urethane paint
Colour as customer choice
Trailer
Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
Two Speed Manual Operation
King Pin
Suspension
with 11mm x 100mm 13- leaf springs
Pneumatic Braking System
Dual line, air brake, piggyback spring on all axles;
Two units of WABCO RE 6 relay valve;
six units of T30/30 spring chamber;
two units of 40L air tank;
two units of standard copper air-connector.
One coats of anticorrosive
Two coats of finish urethane paint
Colour as customer choice
