• Model NO.：JSX-0410
• Drive Mode：Optional
• Maximum Horsepower：300-400hp
• Condition：New
• Name：8m3 Concrete Mixer Truck Drum Concrete Mixer with
• Color：Can Be Customized
• Weight：5500kg
• Transport Package：by Bulk Cargo Ship , RO-RO, Frame Container
• Specification：optional
• Trademark：JUSHIXIN
• Origin：Mainland of China
• HS Code：8705400000
• Production Capacity：500units,Month

Basic Info.

Model NO. JSX-0410 Drive Mode Optional Maximum Horsepower 300-400hp Condition New Name 8m3 Concrete Mixer Truck Drum Concrete Mixer with Color Can Be Customized Weight 5500kg Transport Package by Bulk Cargo Ship / RO-RO/ Frame Container Specification optional Trademark JUSHIXIN Origin Mainland of China HS Code 8705400000 Production Capacity 500units/Month

Product Description

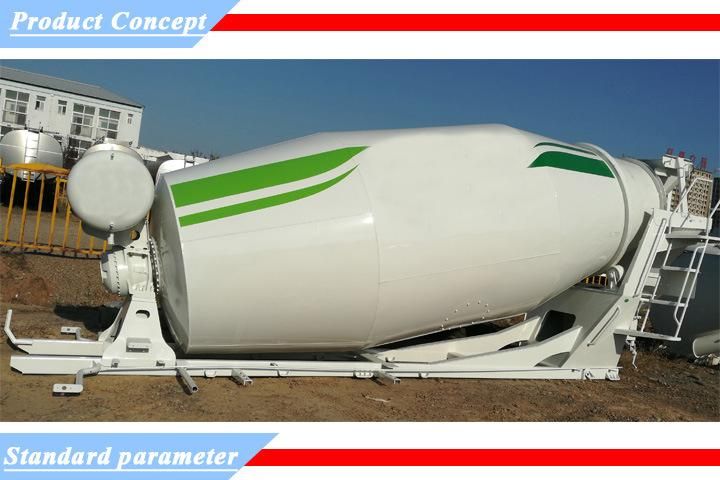

8m3 Concrete Mixer Truck drum Concrete Mixer with Drum Body


<sup>1. Configuration
The product parameters in the table below are just a reference, not absolute.If you think the configuration is
reasonable, you can order directly.If you have your own list of parameters, we can tailor it to your needs.
2. Price
The price shown in the product introduction is a range price, and the final price is determined according to the
configuration of the product and the quantity ordered.
3. OEM&ODM
We also accept OEM and ODM.If you want the product to embody your own brand, we can do it.Or if you are
interested in understanding our abilities and ways of cooperation, we are always welcome.
4. Service
Whether you want to buy our products or not, we are happy to serve you.As long as you have questions, we'll
give you the answer.</sup>




Mixing Capacity	12CBM
Geometrical capacity (m³)	20.5
Body thickness of cover / middle / rear(mm)	866
Concrete charging speed (m³/ min)	3
Concrete discharging speed (m³/ min)	2
Tank rolling speed (r/min)	0~14
Discharging residual ratio (%)	<0.9
Water Tank Capacity (L)	440
Model/Brand/Origin of hydraulic pump	089 / ARK / Italy
Model/Brand/Origin of hydraulic motor	090 / ARK / Italy
Model/Brand/Origin of reductor	P75S / TOPUNION / Italy
Other	With diesel engine
Recommended Wheelbase of chassis	6x4:4000mm+1350mm 8x4:1800mm+3200mm+1350mm
Color	according to the customer's request

<sup>Additional information:
1.The parameters of the above products are just common configurations, not absolute.The specific configuration
   of the product will be executed according to your needs.
2.The final price of all products is determined by the product configuration you choose.Therefore, if you are
   interested in purchasing products, please contact us in time.




About the details:
In order to produce a high quality product, the details are very important.The important parts we use, such as
engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.

About the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you
can see in the picture, the production process is very elaborate.Above all, our workers are very serious and
efficient.All I have said above is believable and guaranteed.</sup>



First:
Please supply the Auto CAD formed drawings for the chassis.

Second:
Please supply the direction of the turning(face to it) of the PTO flange,Dip angle of the PTO flange,and the relative
position of the PTO flange compared with the main beams.Please also see the following drawings.


TIP: Regarding the direction of the turning(please face to it), dip angle, relative position and size of the PTO flangedisc.please you have to let your customer supply us,or the body will not work because of the wrong match. Since the PTO flange for each type of the chassis maybe different even the same Brand.There are two flange discs-one is on the transmission shaft,the other is on the PTO mouth.If you need us to supply the transmission shaft,please you have to ask your customer supply the above information to us,or you can let your customer buy locally.

Third:
Please supply the following sizes of L1,L2,L3.
L1 is from the behind of the cabin to the end of the main beam.
L2 is from the PTO mouth to the end of the main beam.
L3 is the available length of the main beam.


TIP: Regarding L2 size,please you have to let your customer supply us,since we must design the transmission shaftaccording to L2 size(we have not found it on the drawings).As for the L1,L3,we can calculate them approximately,but can not be exact,since the sizes marked on the drawings are not the amplification of the same proportion when we enlarge it.So if your customer can measure it for us,it'svery helpful for us to design the good matched body.

Fourth:
Regarding the connecting way for the EFI throttle of the engine,please supply the photos;


TIP: Please it's better for you to ask your customer if their engine is the EFI throttle of the engine.If not, we should supply the matched accessories accordingly.Or please just let your customer to take the photos of it,our engineer can judge it from the photo.

Fifth:
Please supply more photos of the real chassis,mainly the behind of the cabin and the photos from the behind of
the cabin to the end of the main beam.


TIP: Please it's better for you to ask your customer to take more photos of the chassis,it's very helpful for us to design and make the body.And then you can save more trouble when your customer install the body.
