Mobile Ice Cream Cooling Box Truck Van Lorry Refrigerator Truck
Chengli Special Automobile Factory- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Payload：3ton
- Emission Standard：Euro 4
- Transmission Type：Manual
- Horsepower：＜150hp
- Fuel：Diesel
Base Info
- Bearing Capacity：Micro
- Car Type：Van
- Condition：New
- Driving Type：4X2
- Length of Van Box：2980mm
- Van Box Material：Glass Fiber Reinforced Plastics
- Chassis Brand：Changan
- Refrigeration Unit：Thermo King
- Refrigeration Type：RV380
- Temperature：-15ºC
- Insulation Thickness：80mm
- Refrigerant Type：R404A
- Colour：Optional
- Warranty：One Year
- Tire：175,70r14
- Gear Box：5speed+1reverse
- Engine：Jl473q
- Service Brake：Oil Brake
- Transport Package：Nude Packing
- Specification：3ton
- Trademark：CLVEHICLES
- Origin：China
- HS Code：8704210000
- Production Capacity：100units,Month
Description
Up-parts DescriptionVan box dimension(mm) 2980×1460×1600 Material of van box Glass fiber reinforced plastics Insulation thickness(mm) 80 Refrigeration units THERMO KING RV-380 Type Independent unit Temperature setting range -25ºC-+30ºC Refrigerant Type R404A Refrigerant Filling quantity (kg) 1.8 Compressor Model TK16 Refrigerating Capacity (w) mbient temperature 30ºC (A.T.P.) 0ºC 4050/ -25ºC 2300

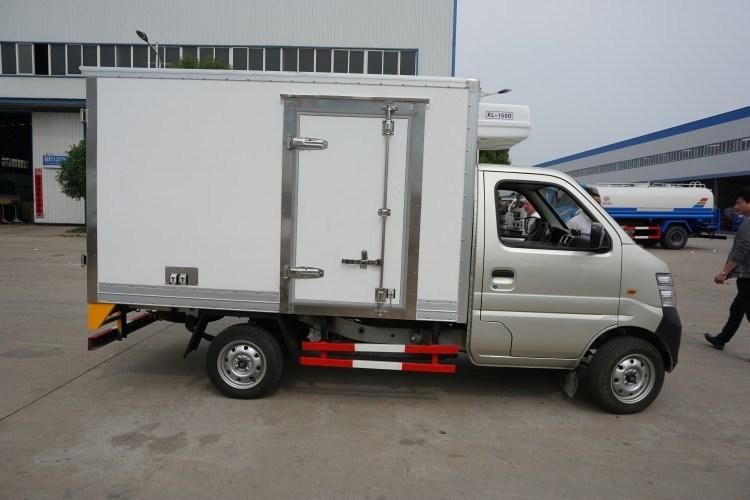

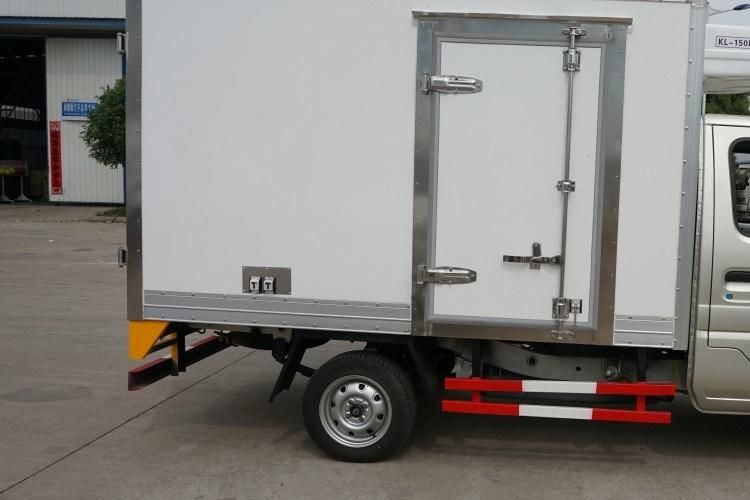

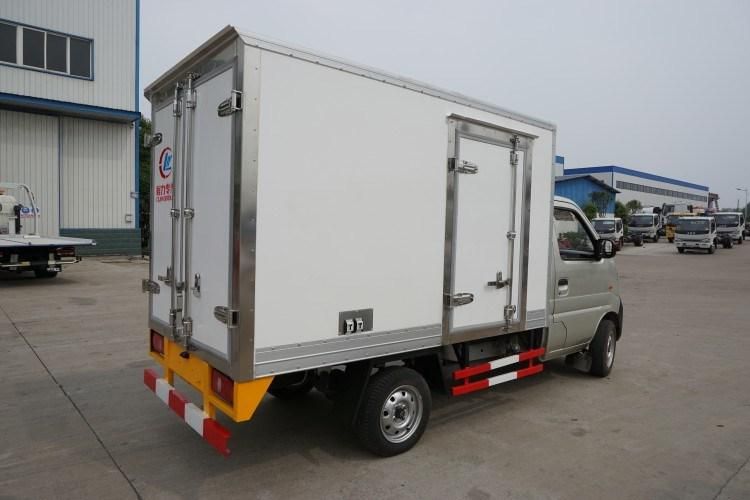

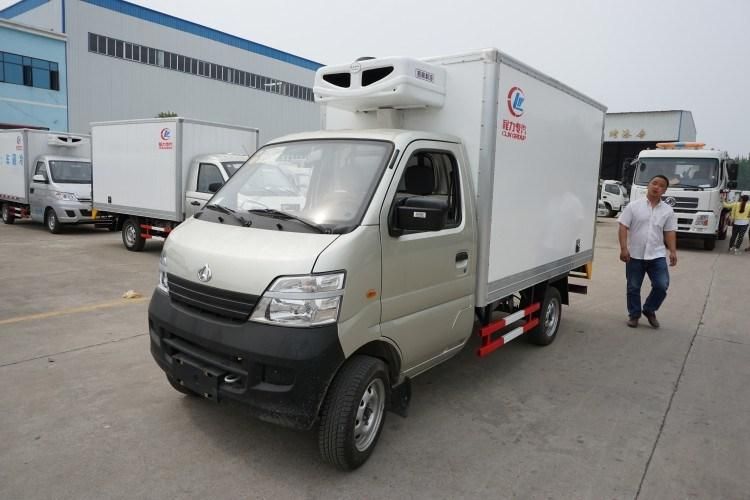

Product Images
Competitive Advantage
About Us
Contact Us
Charles Zhang
Sales department (7/24/365)
Web: clvehicles.en.made-in-china.com
clvehicles.en.made-in-china.com
China Factory Company: ChengLi Special Automobile Co.,LtdFactory Add: South Suburb, Chengli Automobile Industry Park, Suizhou City, Hubei Province, China
Product Images
Competitive Advantage

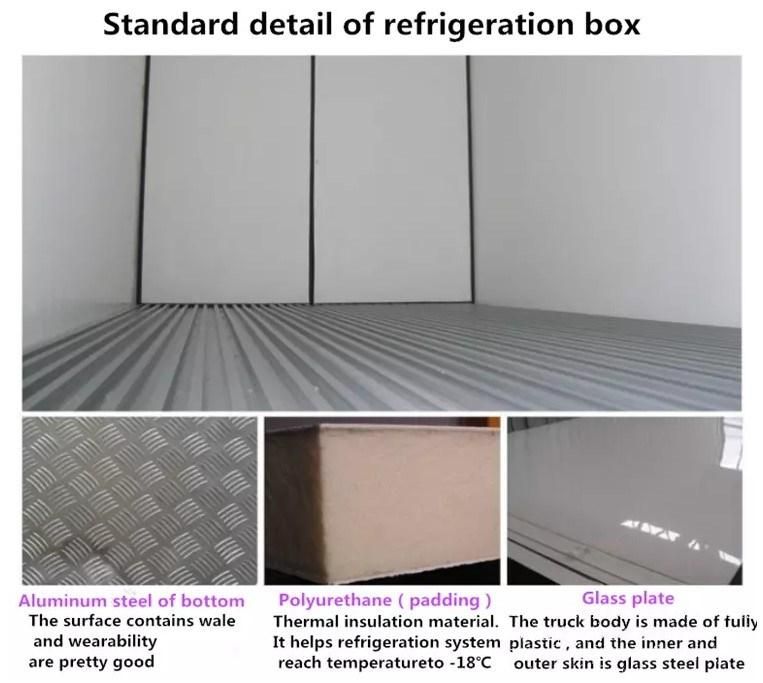

- The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
- Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
- The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane.
- Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
- Refrigeration unit: The well-known domestic brand of the refrigeration unit American Carrier or Thermoking overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees.
