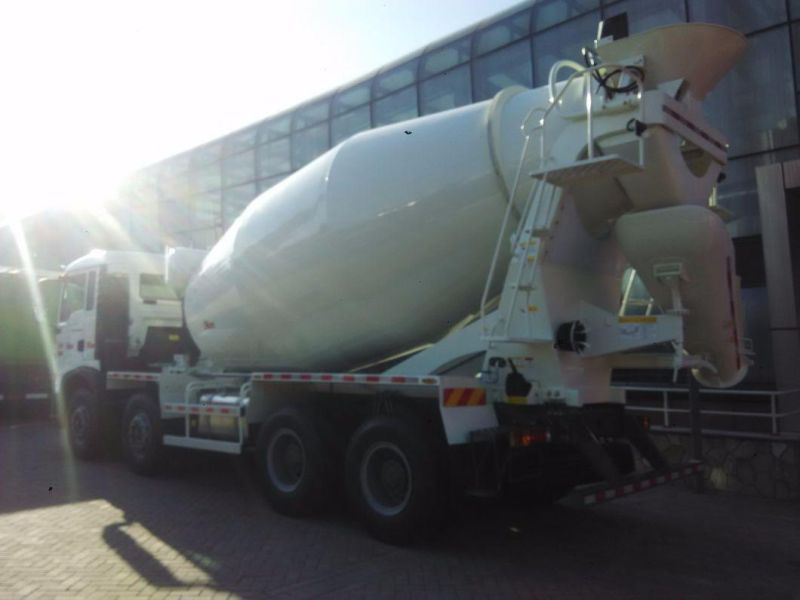

2017 HOWO 8X4 Concrete Mixer Truck! Hot Sale! !

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Transmission Type：Manual
  • Emission Standard：Euro 4
  • Displacement：8
  • Payload：30T
  • Fuel：Diesel

Base Info

  • Model NO.：ZZ3257N3447A
  • Drive Mode：6x4
  • Condition：New
  • Size：9980X2496X3630mm
  • Tank Capacity：12cbm
  • Gross Vehicle Weight：25000kg
  • Warranty：12 Months
  • Material of The Tank：Carbon Steel
  • Thickness of The Tank：5 (Seal Head 6mm)
  • Transport Package：Nude
  • Specification：9980x2496x3630mm
  • Trademark：sinotruck
  • Origin：China Shandong
  • Production Capacity：150 Units Per Month

Description

EngineWD615.47(371HP), Euro II emission standardEngine type: Diesel 4stroke direct injection engine,6cylinder inline with water cooling, turbo-charging & inter coolingCabHW76(one bed with A/C)TransmissionHW19710(10 Forward, 2 Revise)Front axleHF9 (9000kg)Driving axleHC16 (16000kg x 2)Steering systemZF8098Tire12.00R20 (11pcs, including one spare tire)Wheelbase(mm)3825+1350front/rear Overhang (mm)1500/2129Approach/departure angle(°)16/32Maximum speed(km/h)90Tank material16Mn, 8mm high-quality wear-resisting manganese alloy steelCharge speed≥3 m³/minDischarge speed≥1.5 m³/minSurplus rate≤0.5 %Drum revolving speed0-14rpm/min
