Sinotruck HOWO 6X4 9m3 Mixer Machine Concrete Mixer Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Transmission Type：Manual
- Emission Standard：Euro 2
- Displacement：>8L
- Payload：9m3
- Fuel：Diesel
Base Info
- Model NO.：ZZ1257N3841W
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Color：Optional
- Warranty：10 Months or 100000km, According Which Comes First
- Capacity：for Your Opt
- Delivery：45days
- Transport Package：Nude Packing
- Specification：9x2.5x3.6
- Trademark：HOWO
- Origin：China
- HS Code：87054000
- Production Capacity：500 Units ,Month
Description
Oil Capacity
(L)1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th R1 R2 14.28 10.62 7.87 5.87 4.38 3.26 2.43 1.8 1.34 1.00 13.91 3.18 1900 2600 363 12 Steering Gear ZF8118, German ZF hydraulic steering with power assistance Clutch Single plate φ430 diaphragm spring clutch Number of axle 3 Front axle
HF9 STEYR/HOWO drum brake front axle, axle loading capacity is 9000kg Driving axle
HC16 Rated loading capacity: 16T, Ratio: 4.42, 4.80/5.73
Double reduction, casting axle housing, drum brake
Front/Rear track(mm) 2022/1830 Overhang front/rear(mm) 1500/2210 Wheel base (mm) 3625+1350 Tires 12.00R20, radial tires, 10+1(spare tire) Approach/departure angle 16/23 (°) Maximum speed(km/h) 78 Fuel Tank 400L Van dimension 9M3 Suspension Steer Axle: Parabolic springs with shock absorbers and stabilizer
Drive Axle: Parabolic springs with divided balance shaft and stabilizer Electrical System Voltage: 24V
Batteries: 2x12V 165Ah
Starter: 24V, 5.5KW
Alternator: 28V/80A Braking System Service brake: Dual-circuit air brake
Parking brake: Spring brakes on rear axle
Auxiliary brake: Exhaust valve braking(EVB) Color Standard: red, yellow, green, white, blue, black
Optional: others you liked Overall Dimension(L X W X H mm) 9000×2496×4000 others With PTO, Rear spare tire rack Options ABS, Electrical tilting cab, MTCO tachographs
3. Why choose us?
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
4. FAQ
5. Concrete Mixer Truck Photos
6. Our Factory
7. Warranty
1. One year quality guarantee or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
8. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
If you are interested in our products,please contact with me.
(L)
HC16 Rated loading capacity: 16T, Ratio: 4.42, 4.80/5.73
Double reduction, casting axle housing, drum brake
Drive Axle: Parabolic springs with divided balance shaft and stabilizer
Batteries: 2x12V 165Ah
Starter: 24V, 5.5KW
Alternator: 28V/80A
Parking brake: Spring brakes on rear axle
Auxiliary brake: Exhaust valve braking(EVB)
Optional: others you liked
3. Why choose us?
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
4. FAQ
| Q1: I don't want this configuration |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |

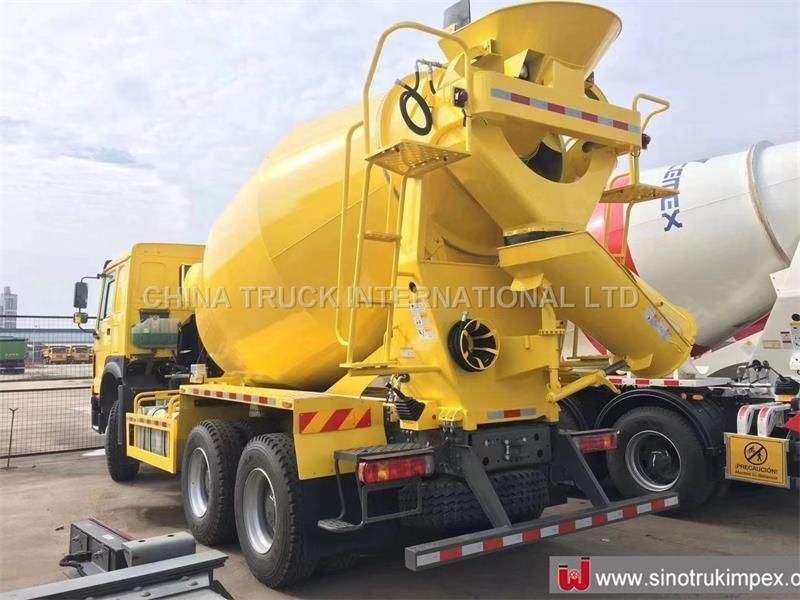

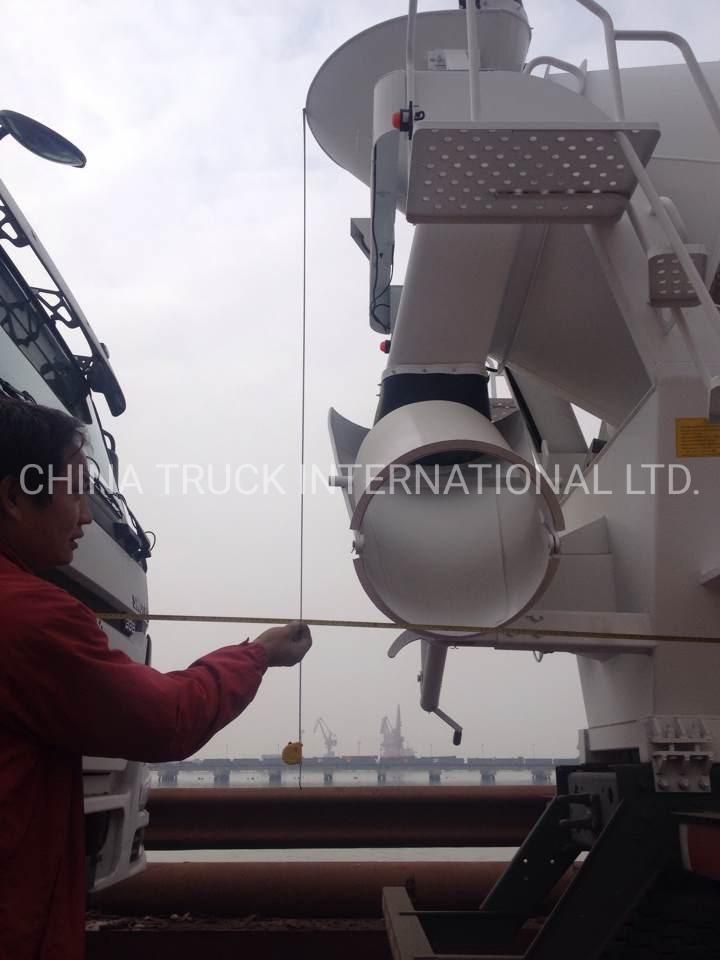

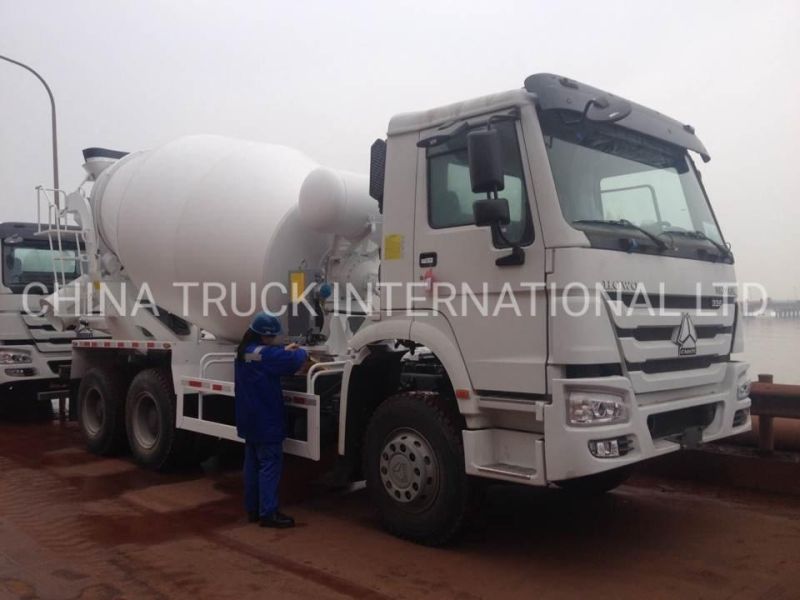

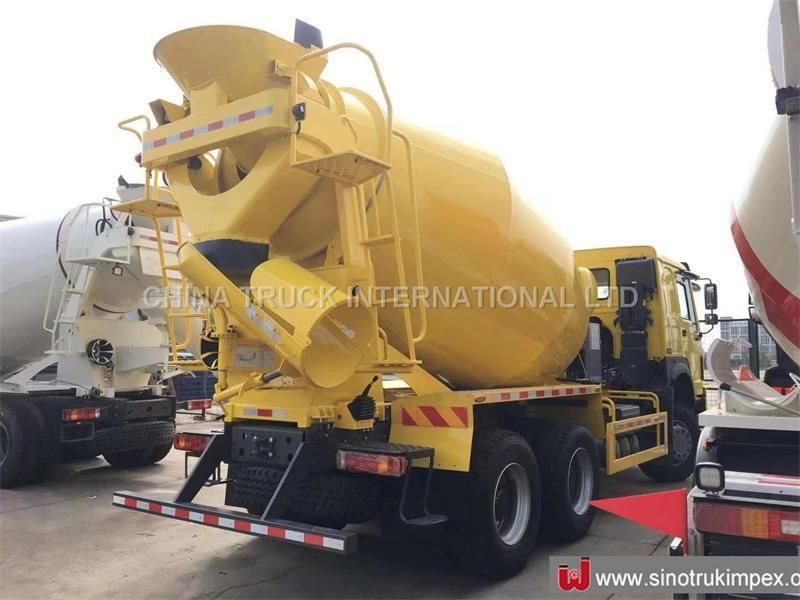

5. Concrete Mixer Truck Photos

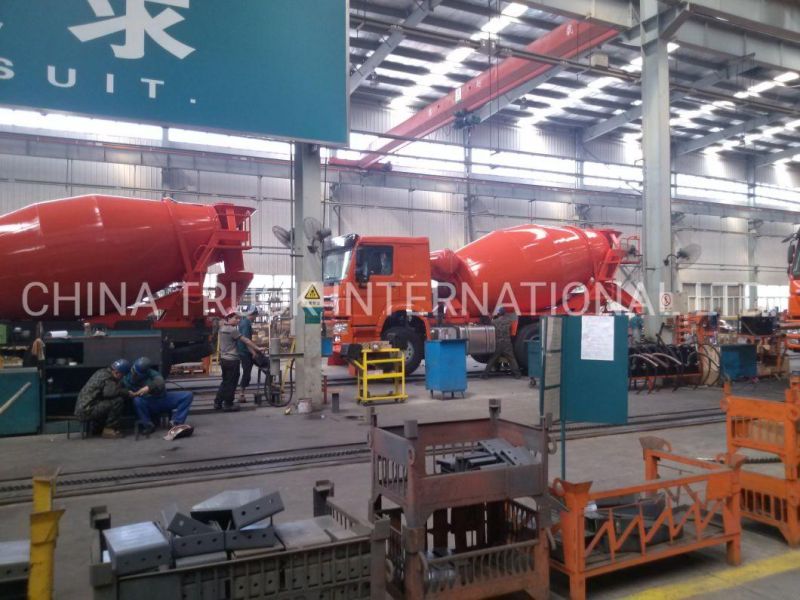

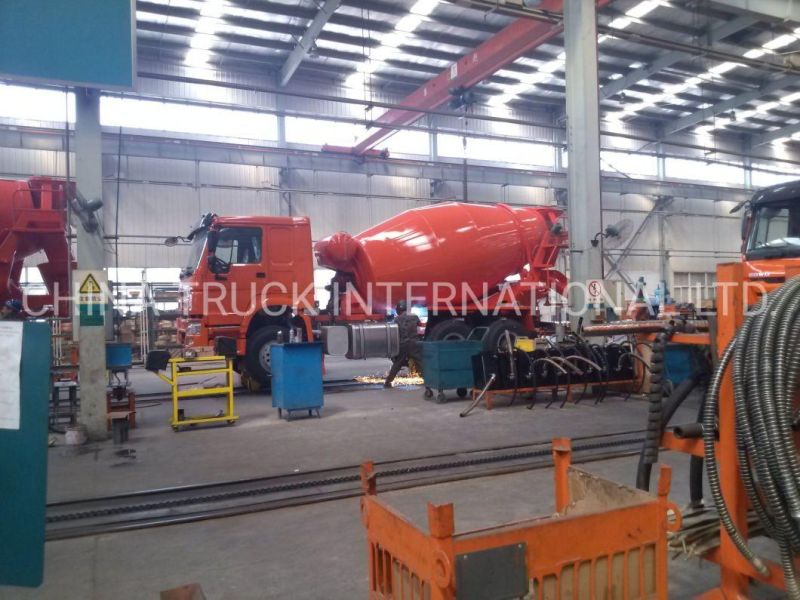

6. Our Factory
7. Warranty
1. One year quality guarantee or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
8. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
If you are interested in our products,please contact with me.
