Foton 10, 000 Liter Sewer Vacuum Truck Sludge Cleaning Truck
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 3
- Payload：10ton 11ton 12ton
- Transmission Type：Manual
Base Info
- Model NO.：WY797802cd
- Fuel：Diesel
- Tank Volume：6000L
- Drive Wheel：4x2
- Hoesrpower：150-250hp
- Condition：New
- Chassis Brand：FAW, Dongfeng, Foton, Sinotruk HOWO, I-Suzu, etc.
- Drive Model：Right Hand Drive & Left Hand Drive
- Wheelbase：4500mm
- Engine Power：210 HP
- Tank Capacity：10cbm 10m3 10cubic Meter 10000liters 6t 8t
- Tank Material：6mm Carbon Steel
- Vacuum Pump：Famous International Brand
- Sewage Suction Pipe：8m
- Suction Time：No More Than 5mins
- Effective Suction：No Less Than 8m
- Logo and Pattern：as Customer′s Request
- Transport Package：Bulk Ship, RO-RO, Container
- Specification：10cbm, 10000liters, 10000L
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Vehicle DescriptionOverall dimensions Tanker Capacity 10,000L Material 6mm thickness, high quality carbon steel Structure Welding, vacuum tank, Cylindrical Pump Type Double vacuum pump Flux 68(L/S) Rating speed 800~1000(r/min) Shaft power 5(kw) Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency Manufacture Hangzhou WEILONG Pump Co., Ltd. Pipe Suction and discharge pipe Special function Suction time ≤ 5mins,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45 Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically. Optional configuration Tanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank Chassis model FAW Cab Single cab, threee passengers allowed, with AC Traction type LHD or RHD Drive type 4*2 Wheelbase 4500mm Tire specification 10.00-20 Tire quantity 6+1 units Engine Engine model CUMMINS 170HP Emission level Euro 3 or 4 Displacement/output 5900ml/125kw Horse power 170hp Gear box Model Dongfeng Number of gears 6 forward gears& 1 reverse, synchronized Brake system Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake Axle Front 7T- Elliot type, I beam section Rear 10T*2-Single reduction, ratio 5.143 Suspension Front 8/8- Leaf spring with shock absorber Rear 9/9-Leaf spring Fuel tanker Type Steel fuel tank, with lockable cap Capacity 300L
Reference Photos

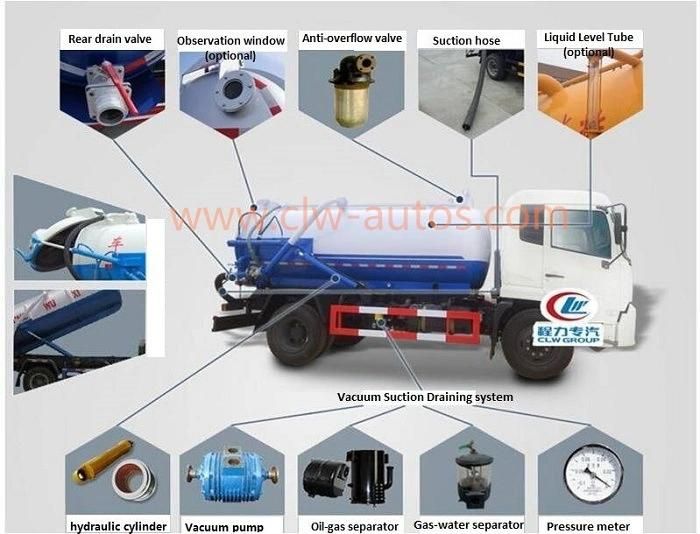

Main Structure

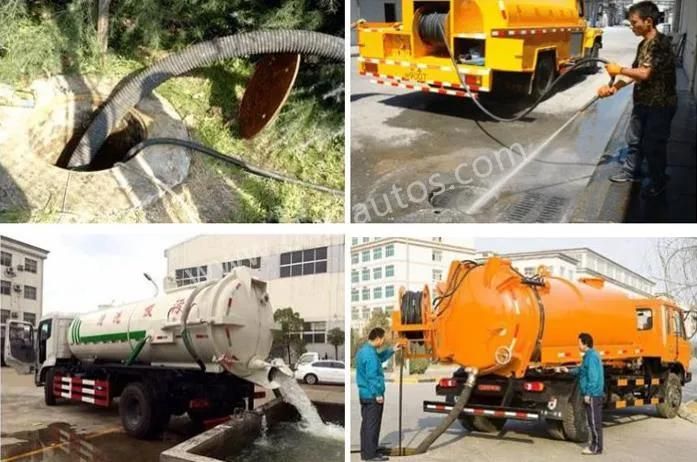

Working Scene
