• Model NO.：SCS5160JSQE-6
• Crane Brand：Changxing or Other Brand of Crane
• Crane Capacity：4000kg, 5000kg, 6300kg Can Be Selected
• Crane Type：Telescopic Boom Type or Knuckle Arm Type
• Cargo Box Dimension：4850X2300X600mm
• Transport Package：Naked Truck with Wax
• Specification：7760x2500x2845mm
• Trademark：SCS
• Origin：China
• HS Code：8705909990
• Production Capacity：4000unit,Year

Basic Info.

Model NO. SCS5160JSQE-6 Crane Brand Changxing or Other Brand of Crane Crane Capacity 4000kg, 5000kg, 6300kg Can Be Selected Crane Type Telescopic Boom Type or Knuckle Arm Type Cargo Box Dimension 4850X2300X600mm Transport Package Naked Truck with Wax Specification 7760x2500x2845mm Trademark SCS Origin China HS Code 8705909990 Production Capacity 4000unit/Year

Product Description

Dongfeng 6x6 off-road truck with 5 to 6.3 ton knuckle arm crane for sale.

Main parameters:

Product	Dongfeng 6X6 5-6.3ton off road truck with knuckle boom crane -- SCS5160JSQE-6
Brand	Donfeng
Chassis model	DFS5160GLJ
Drive type	6×6,   Left & Right hand drive selecable
Tire	12.5R20
Tire No.	6+1 (spare)
Braking System	Air braking
Transmission	6 forward gear,1 reverse gear,manual mechanical type
Engine
Model	YC6J180-42  / ISDe185 40  selecable
Horse Power(hp)	180 / 195
Displacement(cc)/Power(kw)	6494/132 , 6700/143
Emission standard	Euro IV, or Euro III
Main Parameters
Overall dimension (L*W*H/mm)	7760*2500*2845, 2925
Cargo dimension (L*W*H/mm)	4850*2300*600, 800
Wheelbase(mm)	3500+1250
Axles No.	3
GVW(kg)	16050
Curb Weight(kg)	7955
Rated Load	9000
Leaf spring No.	10/12
Approaching/Departure Angle(°)	35/36
Front/Rear trace(mm)	1916/1876/1876
Front/Rear suspension(mm)	1385/1625
Max speed(km/h)	95
Front/Rear Axle Load(kg)	4020/6015/6015
Crane
Crane Brand	XCMG
Crane Mode (selectional)	SQS125--5ton telescopic boom with 3 section SQS157--6.3ton telescopic boom with 3 section
Slewing	Full hydraulic, all rotation
Max Working Height (M)	SQS125 5ton - 11 SQS157 6.3ton - 11
Max Working Radius(M)	SQS125 5ton - 8 SQS157 6.3ton - 8
MOQ	1 set

Product Detail Display

Dongfeng 6x6 off-road truck with 5 to 6.3 ton knuckle arm crane, the truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate.

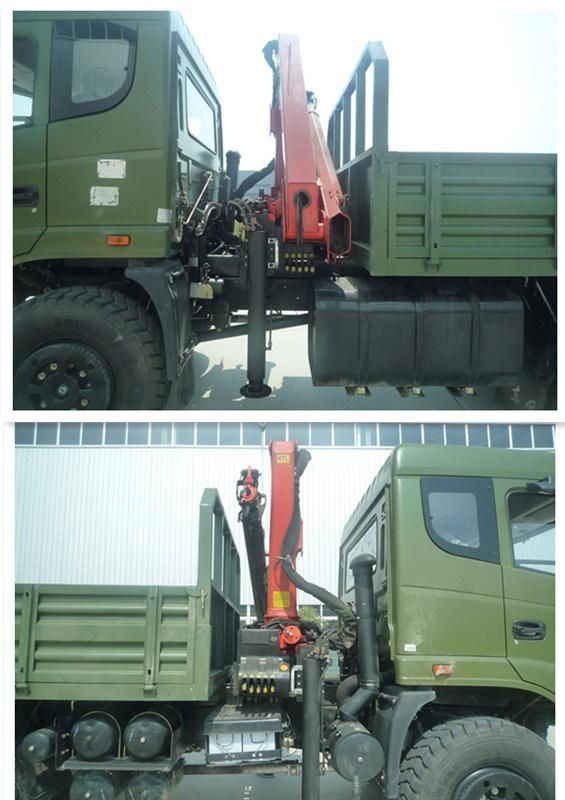

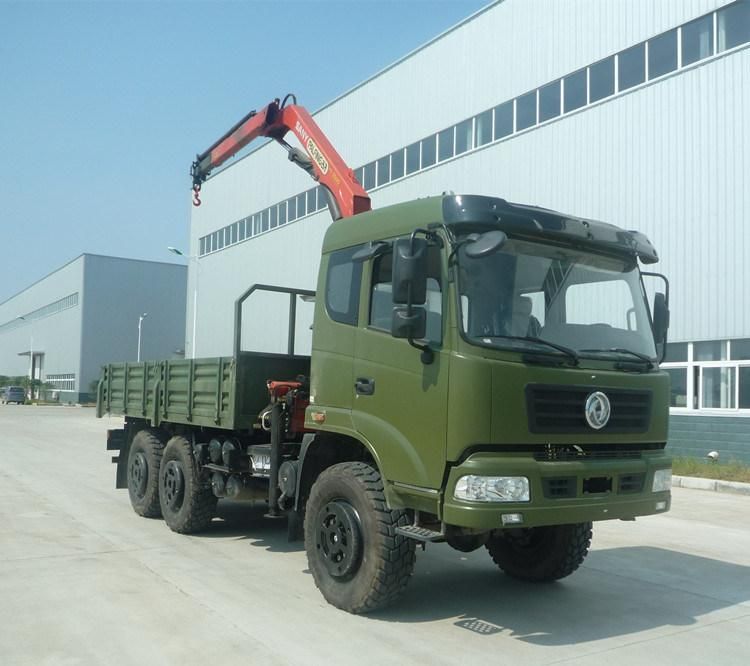

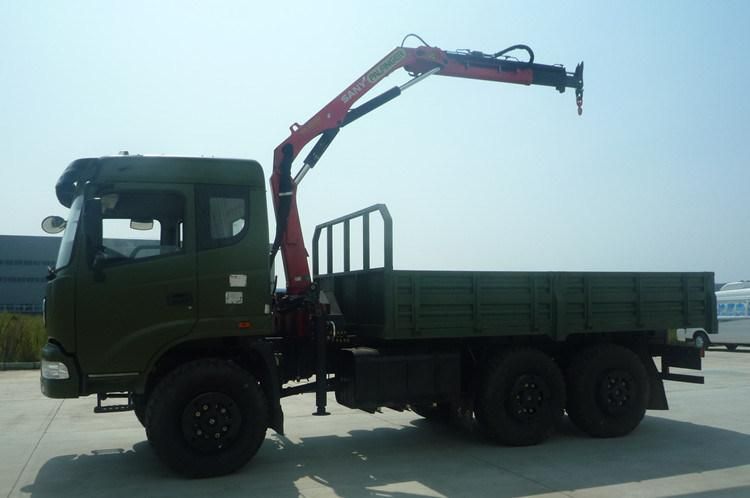

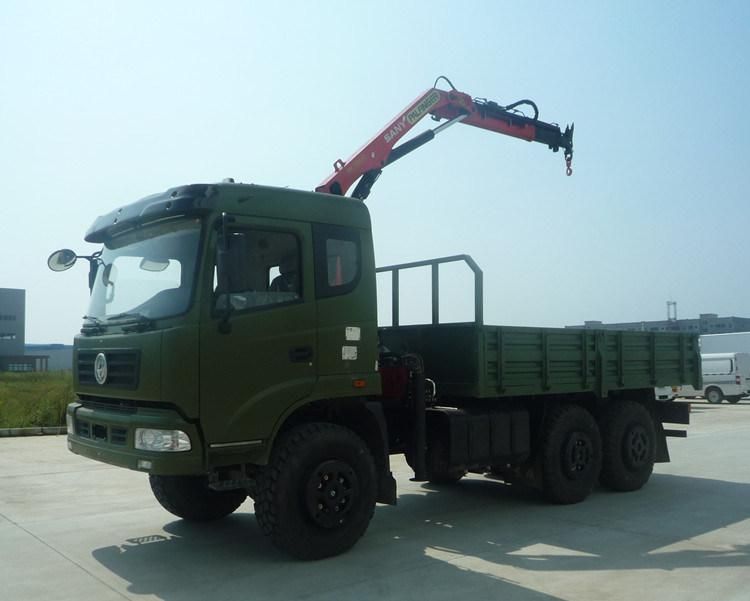

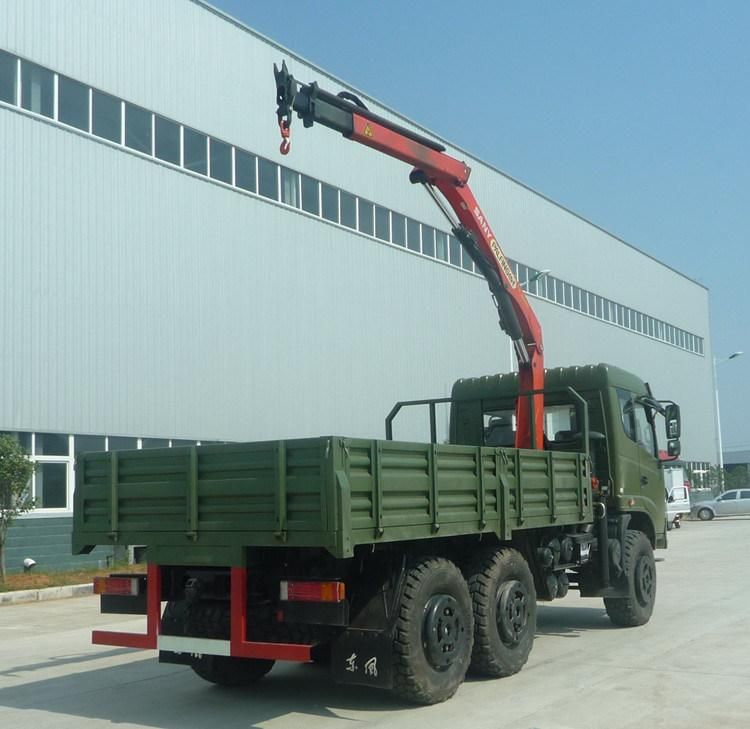

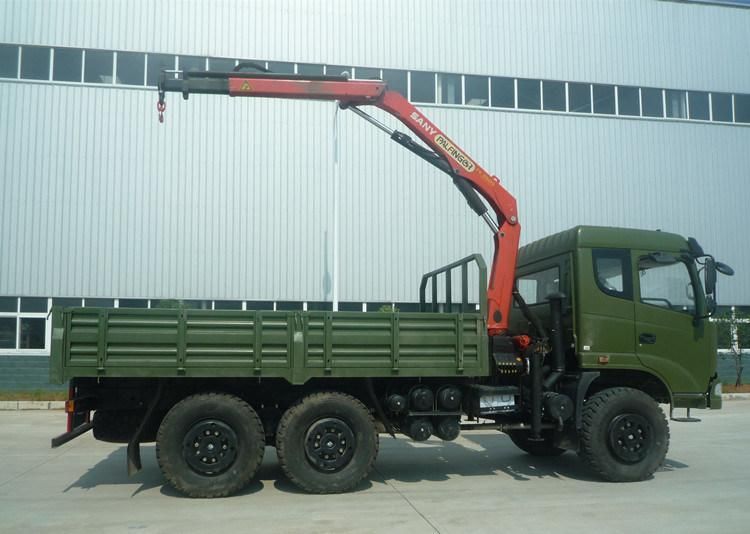

Dongfeng 6x6 off-road truck with 5 to 6.3 ton knuckle arm crane detail views are as below for you reference.



Related Products Display:

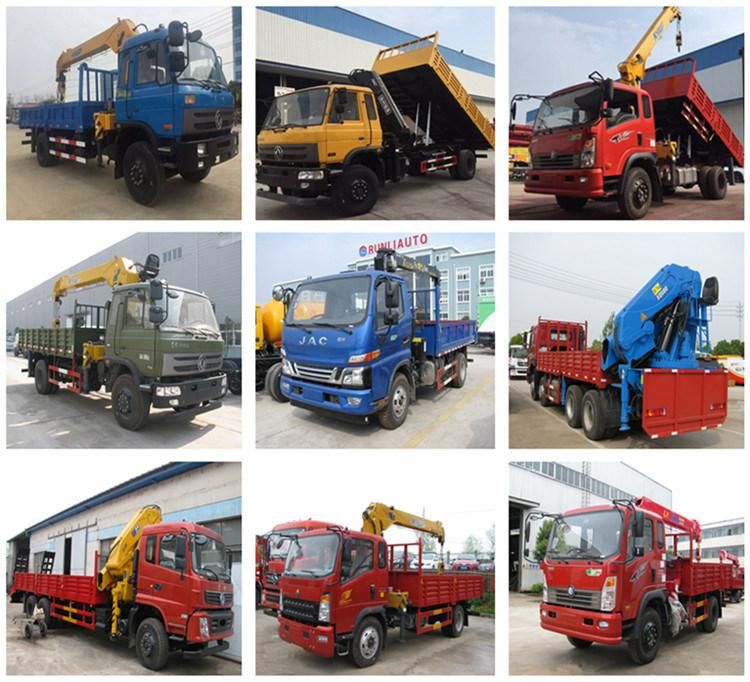

Except Dongfeng 6x6 off-road truck with 5 to 6.3 ton knuckle arm crane, we also have some other brand and different size of crane truck for sale as below photos, welcome to contact us for details checking. Thanks!



About factory:

With many years experience in the precise design and manufacture of special automobile, RunLi has become one of the leading special automobile manufacturers in the China.lie in famous chinese automobile city- Suizhou.

Runli has specialized in producing the following series of automobile.

1. Liquefied gas tanker;

2. Chemical liquid tanker;

3. Fueling truck and Refueling tanker;

4. Truck with crane;

5. Bulk powder goods tanker / Bulk cement tanker / Peak field cementing tanker;

6. Concrete mixer carrier;

7. Sprinkler truck/watering truck;

8. High-pressure cleaning truck;

9. Vacuum sewage suction truck / fecal suction truck;

10. Garbage truck;

11. Overhead working truck;

12. Wrecker tow truck

13. Fire-fighting truck / rescue apparatus

14. Self-Motion transporter / Low platfore semitrailer transporter

15. Storage truck / Van semitrailer transporter.

16. Food truck



Our Service:

FAQ

Q1: Are you a manufacturer or trading company?

We are manufacturer with 9 years of production experience.

Q2: What about the shipping methods?

Container, Bulk Shipment as well as Ro-Ro Shipment, it depends on truck overall dimension.

Q3: What about the payment methods?

We accept T/T and L/C.

Q4: How much does it cost to ship to my country?

It depends on seasons. Shipping Feight is different in different seasons. You can consult us at all times.

Q5: What's your delivery time?

Usually our production leadtime is 25-45 days after getting 50% deposit, it depends on quantity.

Q6: Can you customize based on my specification?

Yes, we have professional R&D centers to support you.



Services

The quality warranty period of our products is within 12 months after delivery of products.

1.For normal damaged parts claims, service team will reply the distributor with in 3 working days.

2. For serious vehicle problems, it will take us 5 working days to reply the distributor,

since our service team has to report it to our factory for final judgement.



Payment & Delivery time

1. TT or LC AT SIGHT 50% down payment, 50% balance paid before shipment,all by T/T or by 100% LC at sight.

2.Min order: 1 units

3.Delivery time: 25-45days after get the deposit or LC

4.Packing: nacked package, waxed before delivery by sea or land.

5.Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc.



Contact us:

We also have some other different brands, different size, and different price period of truck with crane for you choosing, welcome to contact us for detail checking.
