Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function

HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD.
  • Certification：ISO9000, CCC
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Towing Tonnage：8T
  • Fuel：Diesel
  • Bearing Capacity：Medium

Base Info

  • Model NO.：SCS5160JSQE
  • Brand：Dongfeng
  • Condition：New
  • Curb Weight：9000kg
  • Drive Type：4X4
  • Crane Brand：Changxing or Other Brand of Crane
  • Crane Capacity：4000kg, 32000kg, 2000kg Can Be Selected
  • Crane Type：Telescopic Boom Type or Knuckle Arm Type
  • Cargo Box Dimension：5250X2300X600
  • Transport Package：Naked Truck with Wax
  • Specification：8050x2490x3650mm
  • Trademark：SCS
  • Origin：China
  • HS Code：8705909990
  • Production Capacity：4000unit,Year

Description

1. If need to change the tyre to 10.00R20 Radial tyre, need to upcharge USD550/set.
2. The price not including Rear Outriggers as it is selectable parts for this truck, need to upcharge USD1000/set if fitted with.
3. With spare tyre, Air condition, hydrlic telescopic jack, wheel brace, tire sleeve wrench, axis head sleeve wrench, crowbar, small wrench, slip joint pliers, screwdriver, ring spanner, warning sign and other tools.
4. Also can equiped with 3.2 ton 2 joint of telescopic boom crane; 4 ton 3 joint of telescopic boom crane; 5 ton 3 joint of telescopic boom crane; 5 ton 4 joint of telescopic boom crane; but the price will be different. Pls find another work sheet for different model of crane price difference reference.
5. We also have some other brand or cheaper price of crane can be choosed if needed.

Product Detail Display

The procedure for using ruck mounted 4 ton crane with self-discharging function
1. Drive the truck to the working place, and parking it in the proper area where is easy to work (turn on packing brake lever).
2. Press the clutch pedal, turn on the Power Take Off (PTO), release the clutch pedal slowly.
3. Stretch out the support legs / outriggers.
4. Unfasten cable rope, extend the boom and load the goods into the hopper / cargo box.
5. Once finished loading, retract the boom and support legs / outriggers.
6. Press the clutch pedal,turn off the Power Take Off (PTO), release the clutch pedal slowly.
7. (Turn off packing brake lever) Drive the truck to the discharging area, and parking it in the proper area where is easy to work (turn on packing brake lever)..
8. Press the clutch pedal, turn on the Power Take Off (PTO), release the clutch pedal slowly.
9. Stretch out the support legs / outriggers
10. Slewing the crane boom to the front of truck.
11. Slewing the switch valve to the direction of hopper works,
12. Open the hopper / cargo box rear gate.
13. Pull the self dumping working lever and finishing dump.
14. Close the hopper / cargo box rear gate.
15. Slewing the switch valve to the direction of crane works,
16. Slewing the crane boom to the rear of truck.
17. retract the boom and support legs / outriggers.
18. Press the clutch pedal,turn off the Power Take Off (PTO), release the clutch pedal slowly.
19. (turn off packing brake lever) Drive the truck away from discharging area.
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function

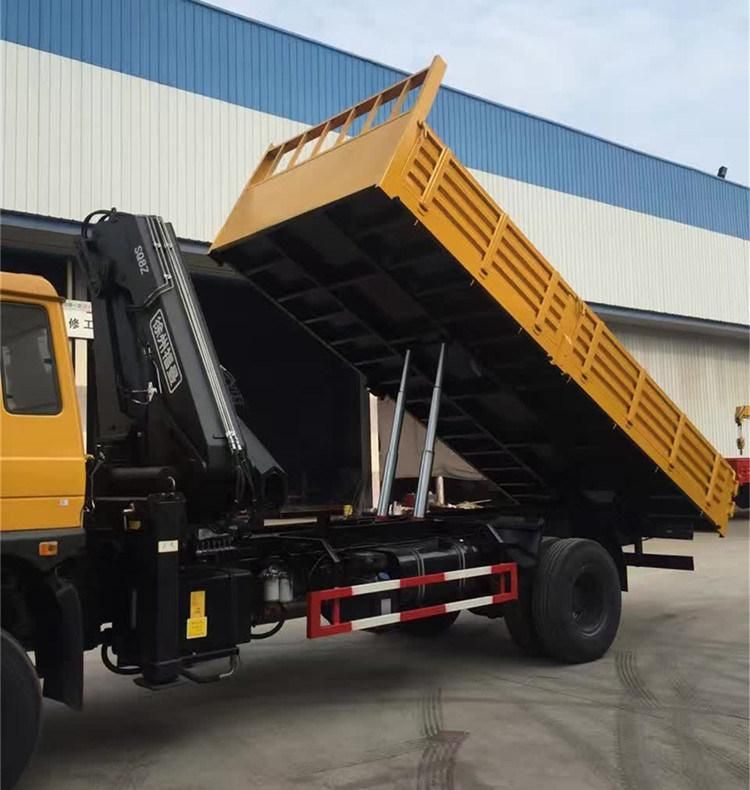

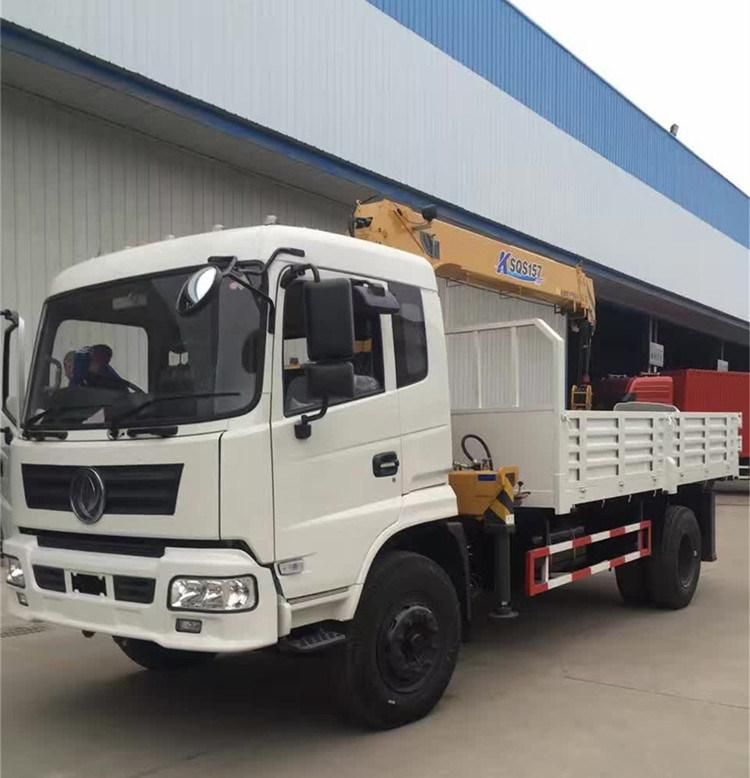

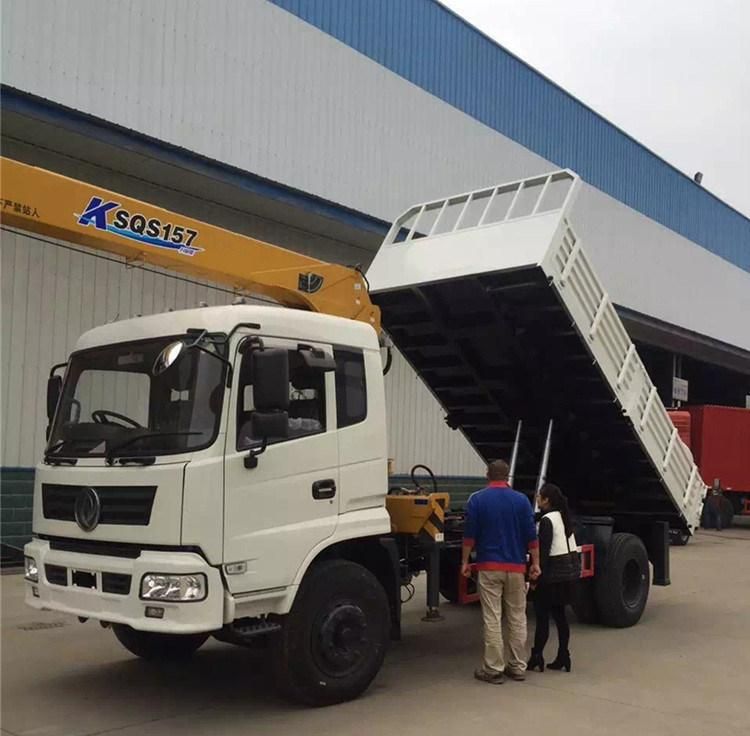

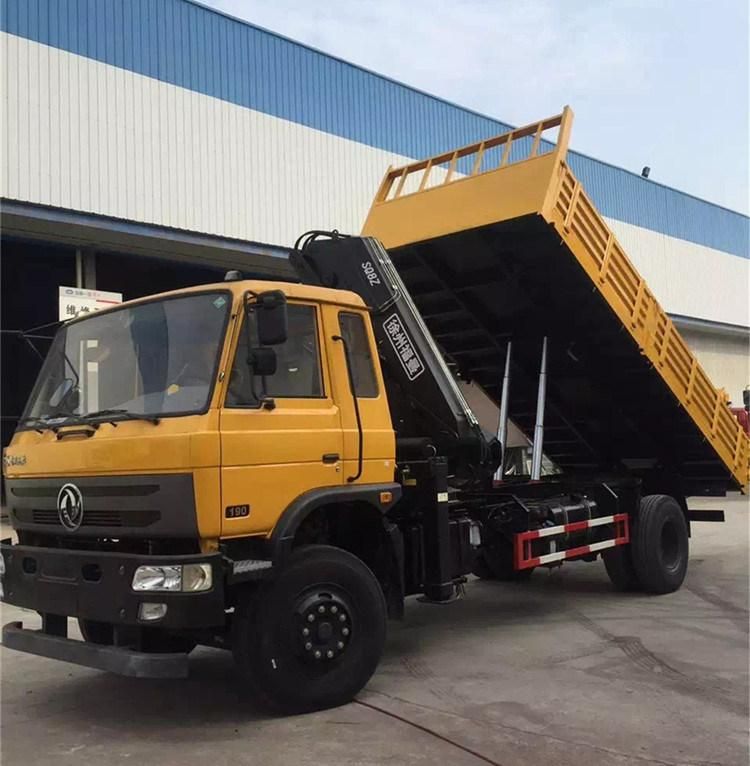

dump truck with 4 ton crane detail views are as below for you reference.

Related Products Display:

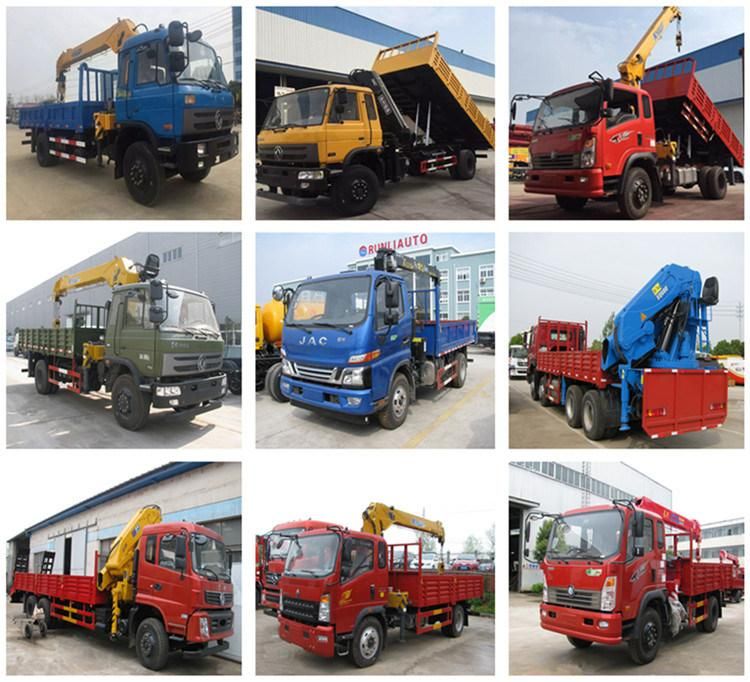

Excetp Dongfeng 4x4 all-wheel drive truck mounted 4 ton crane with self-discharging function, we also have some other brand and different size of dump truck with crane for sale as below photos, welcome to contact us for details checking. Thanks!

Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function

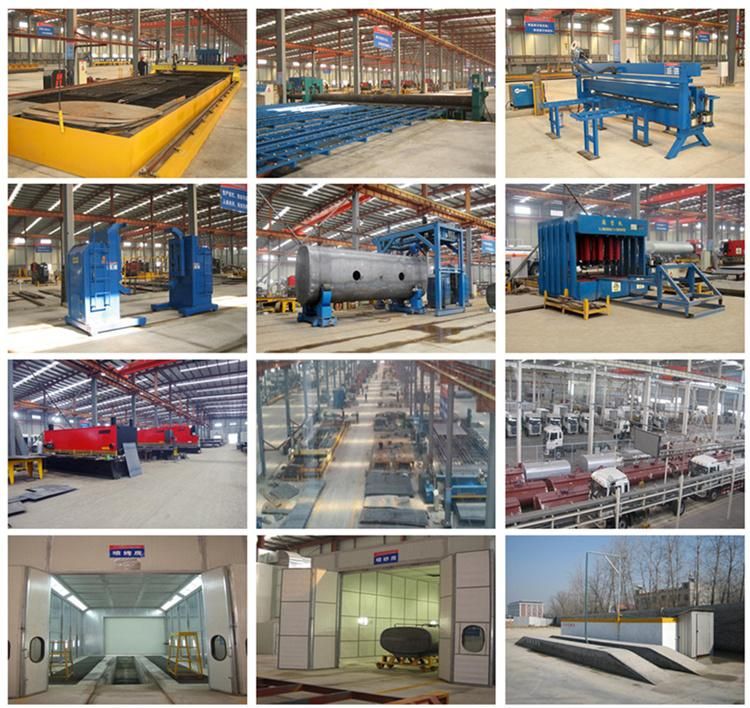

About factory:

With many years experience in the precise design and manufacture of special automobile, RunLi has become one of the leading special automobile manufacturers in the China.lie in famous chinese automobile city- Suizhou.

Runli has specialized in producing the following series of automobile.

1. Liquefied gas tanker;

2. Chemical liquid tanker;

3. Fueling truck and Refueling tanker;

4. Asphalt truck;

5. Bulk powder goods tanker / Bulk cement tanker / Peak field cementing tanker;

6. Concrete mixer carrier;

7. Sprinkler truck/watering truck;

8. High-pressure cleaning truck;

9. Vacuum sewage suction truck / fecal suction truck;

10. Garbage truck;

11. Overhead working truck;

12. Wrecker tow truck

13. Fire-fighting truck / rescue apparatus

14. Self-Motion transporter / Low platfore semitrailer transporter

15. Storage truck / Van semitrailer transporter.

16. Food truck


Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function
Dongfeng 4X4 All-Terrain Used Truck Mounted 4 Ton Crane for Sale with Self-Discharging Function

Our Service:

FAQ

Q1: Are you a manufacturer or trading company?

We are manufacturer with 9 years of production experience.

Q2: What about the shipping methods?

Container, Bulk Shipment as well as Ro-Ro Shipment, it depends on truck overall dimension.

Q3: What about the payment methods?

We accept T/T and L/C.

Q4: How much does it cost to ship to my country?

It depends on seasons. Shipping Feight is different in different seasons. You can consult us at all times.

Q5: What's your delivery time?

Usually our production leadtime is 25-45 days after getting 50% deposit, it depends on quantity.

Q6: Can you customize based on my specification?

Yes, we have professional R&D centers to support you.



Services

The quality warranty period of our products is within 12 months after delivery of products.

1.For normal damaged parts claims, service team will reply the distributor with in 3 working days.

2. For serious vehicle problems, it will take us 5 working days to reply the distributor,

since our service team has to report it to our factory for final judgement.



Payment & Delivery time

1. TT or LC AT SIGHT 50% down payment, 50% balance paid before shipment,all by T/T or by 100% LC at sight.

2.Min order: 1 units

3.Delivery time: 25-45days after get the deposit or LC

4.Packing: nacked package, waxed before delivery by sea or land.

5.Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc.



Contact us:

We also have some other different brands, different size, and different price period of truck mounted 4 ton crane for sale with self-discharging function for your choosing, welcome to contact us for detail checking.
