• Model NO.：CLW5086XWC
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：3800 mm
• Engine Power：170 HP
• Tank Capacity：6cbm 6m3 6cubic Meter 6000liters 6t 8t
• Tank Material：6mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：6cbm, 8cbm, 10cbm, 6ton 8ton 10ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

The parameters of chassisChassis ModelDFL1250Driving type4*2 left hand driveGross weight (kg)25,000Wheel base3950Front Tread (mm)1,986Rear Tread (mm)1860Front suspension(mm)1,460Rear suspension (mm)2340Tyre10.00-20Tyre number10+1(one spare tyre)Spring number8/9Max speed (km/h)90The parameters of EngineEngineManufacturer :Dongfeng cumminsRated Power170HPEngine typesix-cylinder, turbocharged and intercooledFuel typeDieselEmission standardEuro 3Tank volume and materialSewage tank volumelitres8,000Sewage tank material/Carbon steel Q235-ASewage tank thicknessmm5Water tank volumelitres4,000Water tank materialmm304 stainless steelWater tank thicknessmm3Jetting water pumpmodel/SLR212/200(Italy brand high pressure plunger pump )Max fluxL/min200Working pressureMpa20Jetting high pressure pipe/70 meters ¢19 , hydraulic operationPipe Retractable wring tensionKN≥10Pipe winding speedm/min0-25Jetting spraying nozzles/10 pcs carbon steel spraying nozzlesPipe reel rotation/180°Pipe reel rotation/Rear of tankVacuum pumpModel/PN84D (Italy brand)FluxL/min9000Max vacuum degree/92%Max pressurebar1.5Max powerKW11.2Max sewage suction depthm≥7.8Other configurationSewage tank lifting/Hydraulic lifting dumpingTank slope angle°≥5Sewage pipemm102Pumping timemin5-7Boom lengthmm1000Boom rotation angle°270Boom lifting angle°0-20Hydraulic pressureMpa16Control way/Manual and electronic controlHydraulic motor/Chinese brandMulti valve manufacturer/Chinese brandHydraulic pump/Chinese brandHydraulic cylinder/Chinese brand

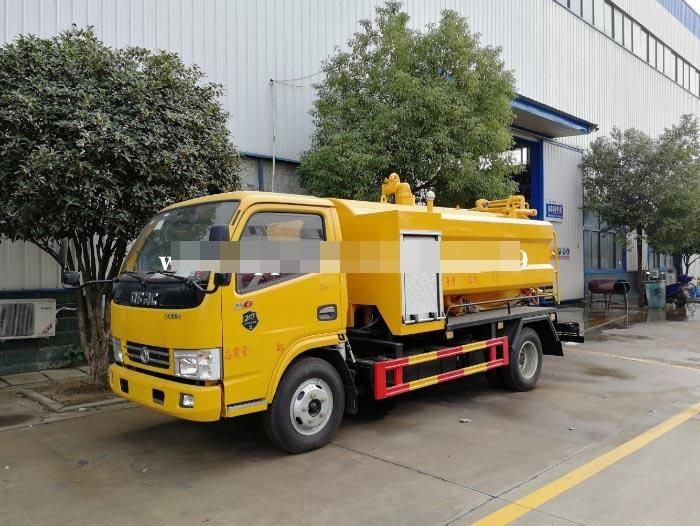

Reference Photos

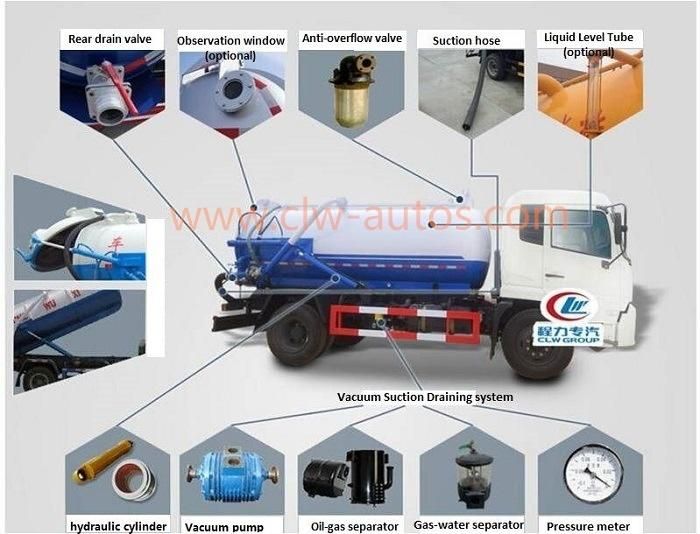

Main Structure
