China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Z
  • Certification：ISO9000, CCC, EEC, CE
  • Emission Standard：Euro 2
  • Hoesrpower：150-250hp
  • Payload：5-15ton
  • Fuel：Diesel

Base Info

  • Model NO.：CLW5086GKZ
  • Transmission Type：Manual
  • Drive Wheel：4x2
  • Condition：New
  • Produce Name：High Altitude Operation Truck
  • Lifting Height：14m, 16m, 18m, 20m, 22m
  • Bucket Loading Weight：200kg
  • Bucket Size：1000X650X1200mm
  • Turning Angle：360 Degree
  • Arm Type：Folded or Telescopic
  • Max Working Height：18meters
  • Max Working Radius：8.0meters
  • Working Radius in Max Height：3meters
  • Working Height in Max Working Radius：10.1meters
  • Front Legs：H Shape
  • Rear Legs：H Shape
  • Hook Weight：800kg
  • Max Hook Height：8.1meters
  • Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
  • Transport Package：Naked Package
  • Specification：18meters
  • Trademark：CLW WEIYU
  • Origin：China
  • HS Code：870590990
  • Production Capacity：500unit,Month

Description

 ISUZU Aerial Platform TruckOverall dimensions8450×2050×3100 mmWheel base3800 mmF/R track base1015/2280mmApproach/departure angle24/10°Front / Rear Axle2Ton / 4.8TonCabinISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, RadioEngine 4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IVDisplacement/ HP2999ml / 120hpGearboxISUZU 5 foward &1 reverseSteering GearHydraulic Power SteeringMax speed90 km/hTire specification7.00-16, 6 PiecesTraction system4x2Equipment1. Max operation height:16m
(including 1.7meter person height, net height is 14.3meter),
2. Max operation radius≤ 9.2m,
3. Max working platform height≤12.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg

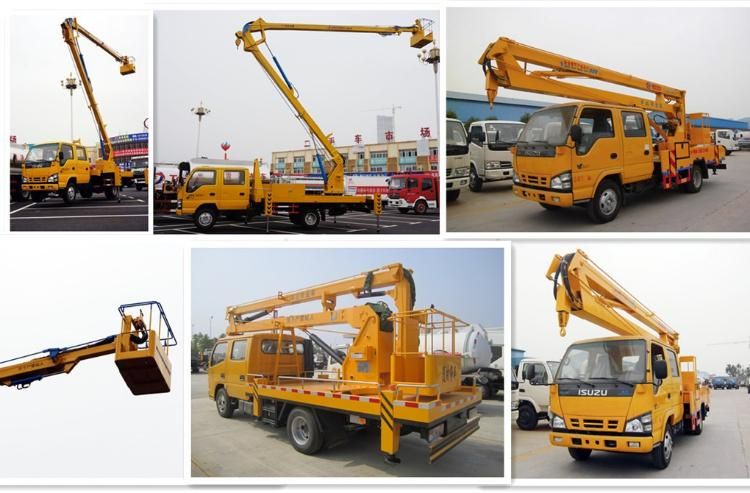

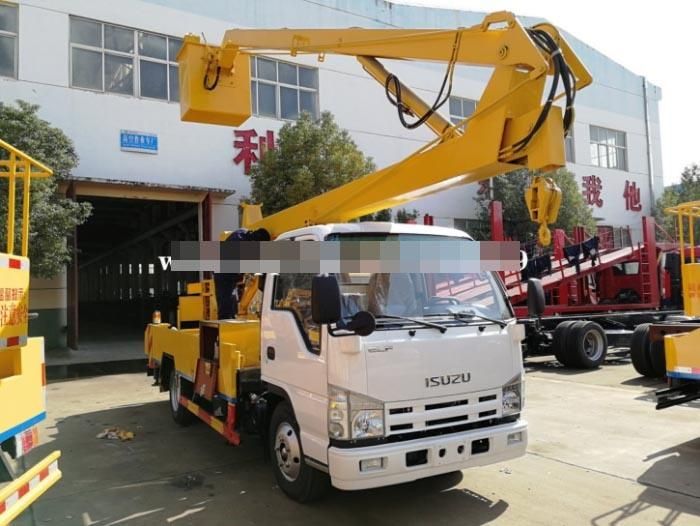

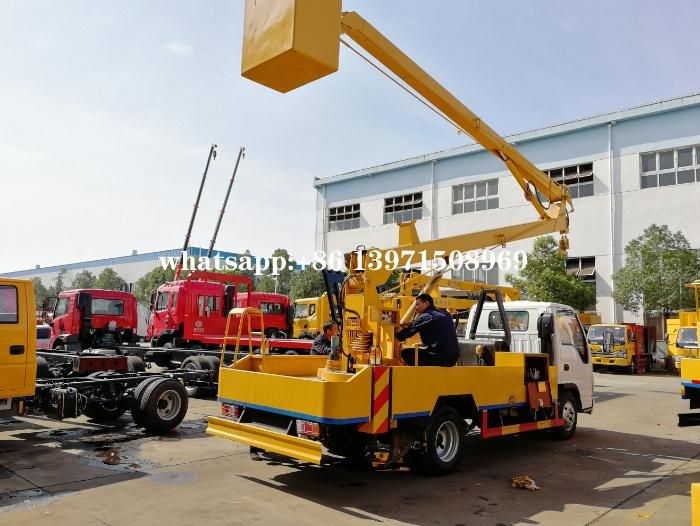

Reference Photos
China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck
China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck
China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck
China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck
China 18m 20m 22m 24m 26m Insulation Aerial Working Platform Trucks High Altitude Operational Bucket Boom Truck

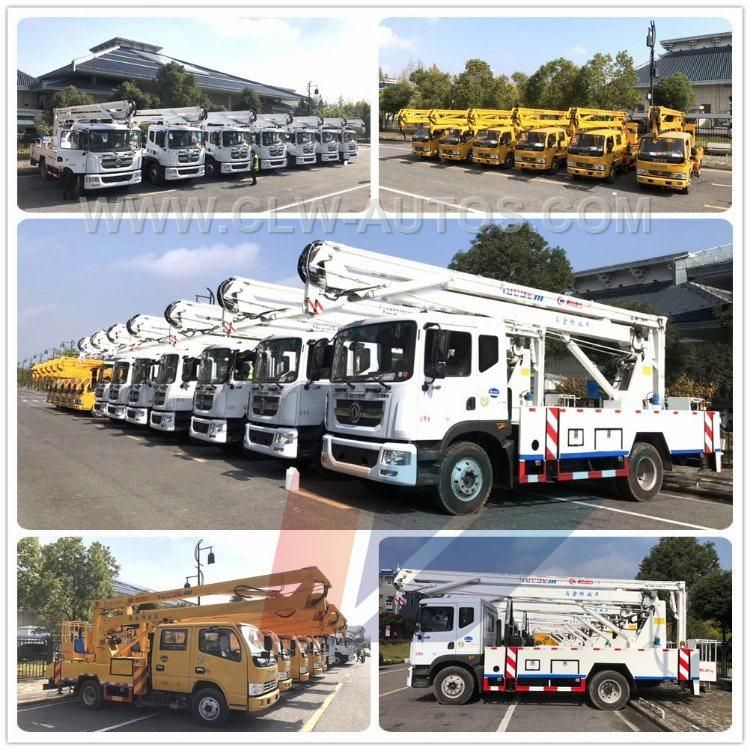

Successful Cases
