• Model NO.：ZZ1317M3861W
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Brand：Sinotruk_HOWO
• Engine：336HP, 371HP
• Transmission：Hw15710, Hw19710
• Front Axle：9t
• Rear Axle：16t
• Cabin：Hw76 with One Berth& AC
• Tires：12.00r20
• Fuel Tank：300L
• Transport Package：Nude Packing
• Specification：ISO CE EPA CCC ISO EEC
• Trademark：SINOTRUK
• Origin：Shandong China
• HS Code：8704230090
• Production Capacity：50000sets,Month

Products Technical SpecificationBrand-SeriesSINOTRUK HOWOProduct Name6*4  Concrete mixer truck Chassis ModelZZ1257N4048WEmission StandardEuro 2Fuel typeDieselCabin HW76,With A/C,SleeperWhole vehicle
main dimensions (mm)Overall dimensions (L×W×H) 9900*2500*3900Tank dimensions  12cbmWheel base       4100+1450Front overhang       1410Rear  overhang    2440Min. ground clearance 540Weight data (kg)G.V.W25000Curb weight (chassis)15200Max payload25000Whole vehicle

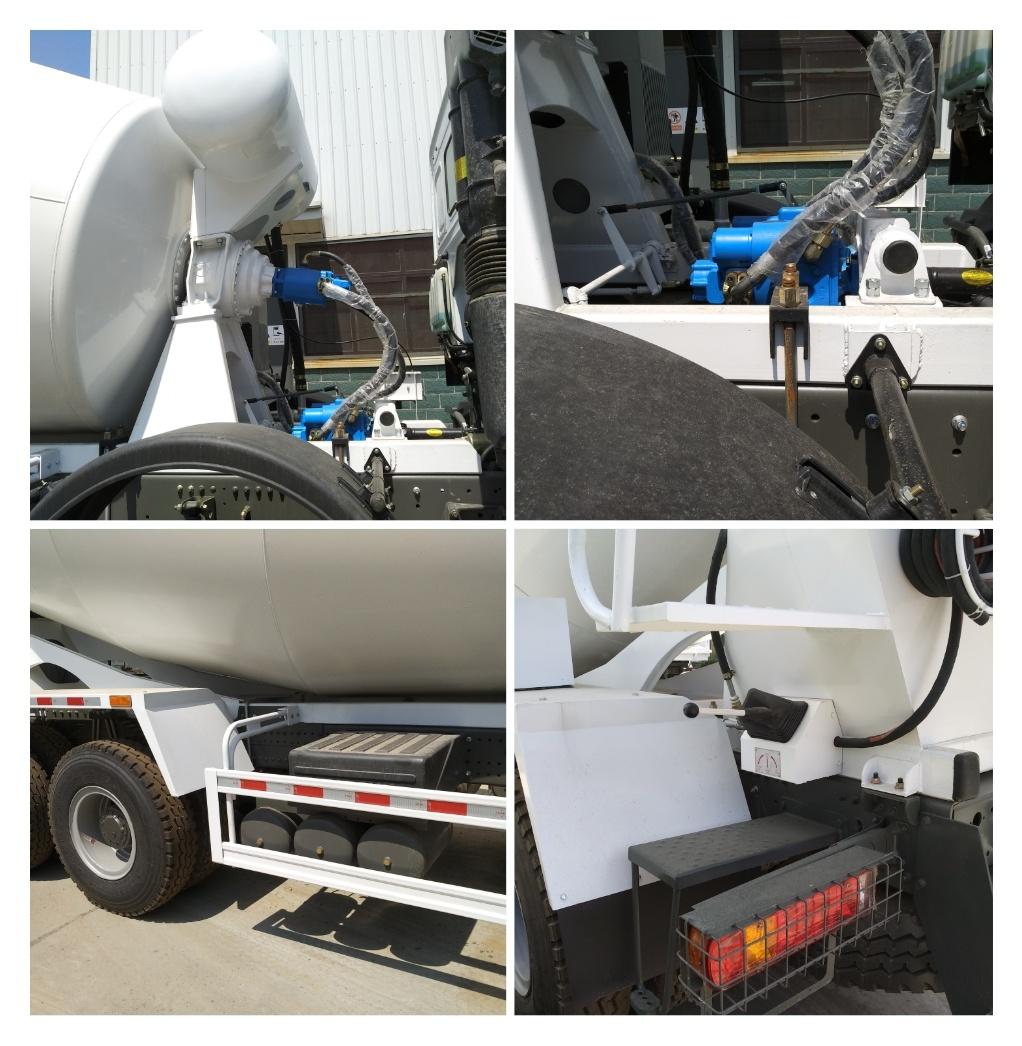

main performanceMax. speed (km/h)85Max. slope of climb (%)30EngineModelWD615.95EMaximum power247kw / 336hpNumber of cylinders6Displacement (L)9.726Engine ManufacturerWeichai Power Co., Ltd.TransmissionBrandHW13710Number of gears10 forward gears& 2 reverse  Axle Rear Load capacity (ton)HC16SuspensionLeaf spring10/13,Steering Wheelleft/right hand driveLHDBrake systemService brake Dual-circuit air brakeElectric deviceRated voltage24VTyres & Quantity12.00R20 & 10+1Mixing Tank DescriptionMaterial and ThicknessQ345,Cylinder wall thickness 5mm, headthickness 6mmMixing capacity12cbmMixing tube angle12.5 °Feed rate3 m3 / minThe feed speed≥ 1.5 m3/minFill Rate63%Residual Discharge rate<0.2%Slump range40 ~ 210 mm

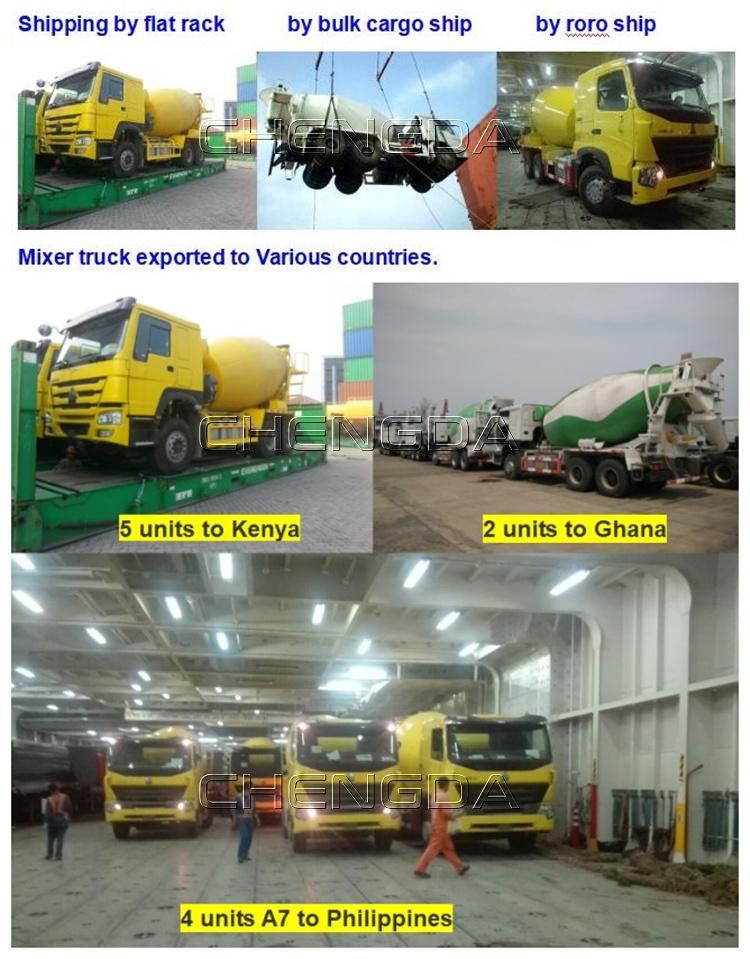

Packaging & Shipping

Rude packaging:

A.By ro-ro Ship:with  ro-ro ship or bulk ship or flat rack container

B.By container: we take apart the truck,and the customer  ou should reinstall in your country

Ship time :30 days after get the 30% deposit

Packaging: Nude or acoording to customers' demand

Our Service:

1. Quality Inspection of Chengli Truck:

    Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV,             Intertek, etc.



2. Spare Parts of Chengli Truck:

    1. Supplying quick-wearing parts at the truck delivery.

    2. Good quality parts produced by the truck manufacturing factory.

    3. Only charge cost price for customer convenience.



3. Warranty of Chengli Truck:

   One year's free warranty for major 3 components, including Engine, Gearbox, Axles.



4. After Sales Service of Chengli Truck:

   Email & Phone call tracking for each truck on timely manners, also possible engineer
   maintenace in customer's Country.

Our main products:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper

2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine

3. Truck with crane / Truck mounted crane

4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

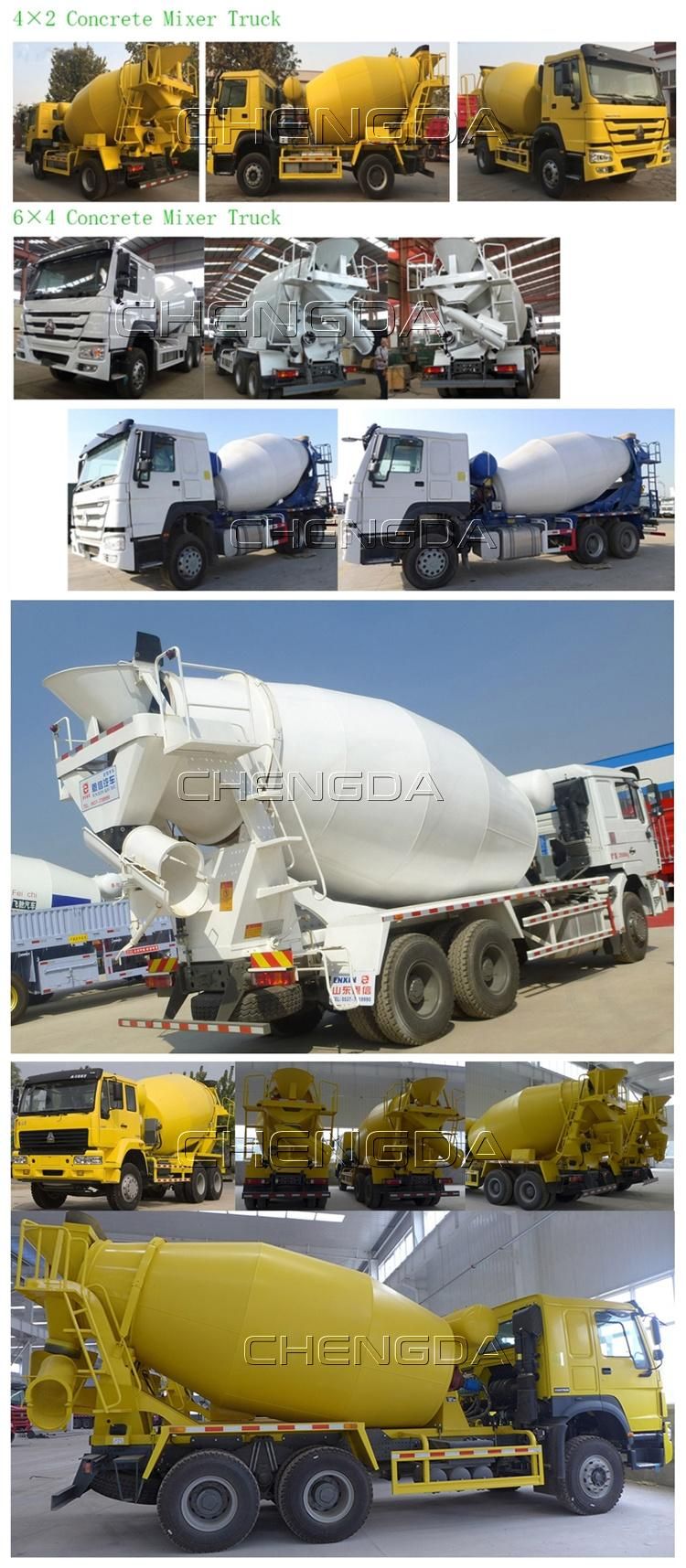

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,

12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Welcome to vist our factory!
