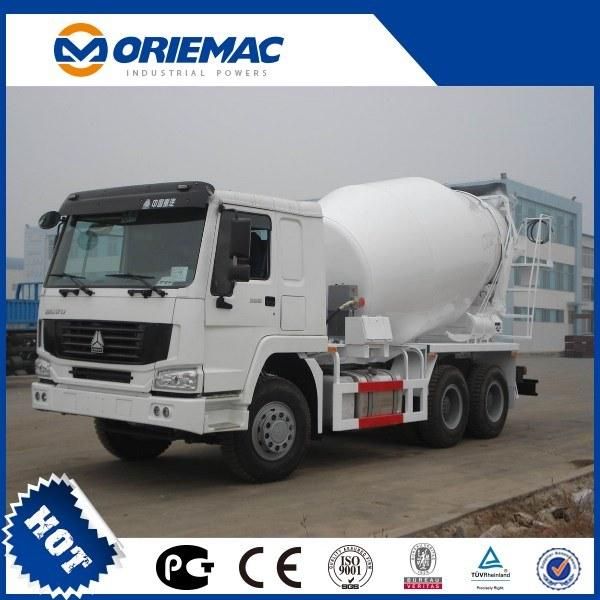

3138BY /6×4/3850+1450/Long-Flat Roof Cab |
Dimension | 9770×2500×3980 mm |
Approaching angle/Departure angle | 23/21° |
Overhang(front/rear) | 1515/2750 mm |
Wheel base | 4100+1450mm |
Max speed | 90km/h |
Curb weight | 15340 kg |
Loading capacity | 9530 kg |
Slope climbing capability | Max.40% |
Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement | 9.726L/Diesel |
Stroke | 126/130mm |
Max. power | 276/2200 (kw/rpm) |
Max.torque | 1460/1200-1600(Nm/rpm) |
Emission stantard | Euro III |
Fuel tanker capacity | 300L |
Clutch | 430, Single dry frictional disc,Hydraulic boosting |
Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 |
Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
Rear | Non-free standing stablization spring, balance suspension system, 13pcs |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake |
Park brake | Potential springs pressing on middle and rear wheels |
Steering system | TAS85,whole circulation in ball, hydraulic booster |
Frame | Fish belly shape, variable width, variable sections |
Front axle (German Technology) | Double-shoe pneumatic brake, non-driving steering axle |
Middle and Rear axle (German Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
Tyre | 12.00R20 Radial |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A |
Starter | 5.4Kw/24V |
Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
Main technical parameters of concrete mixer |
Drum performance parameter | Geometric Volume m3 | 26.1 m3 |
Effective Volume m3 | 16 m3 |
Filling Ratio % | 61.30% |
Gradient of the Drum ° | 9° |
Filling speed m3/min | ≥3 |
Discharging Speed m3/min | ≥2 |
Surplus Ration % | <1% |
Range of Slump mm | 20~300 |
Hydraulic System | Pump | Eaton 64 (ACA642337) |
Motor | Eaton 64 (HHD6423321) |
Gear Box | PMB7.8SP |
Water supply system | Volume of water tank | 400L |
Water supply type | Air pressure Type |
