Specialized Vehicle

Topmac SD4000m Mini Self Loading Concrete Mixer Truck for Sale

Jurong Topall Machinery Co., Ltd.
  • Warranty:6 Month
  • Certification:ISO9000, CE

Base Info

  • Model NO.:SD4000M
  • Transmission Type:Manual
  • Emission Standard:Euro 2
  • Displacement:1.8
  • Payload:11000kg
  • Fuel:Diesel
  • Drive Mode:4X4 Self-Loading Mobile Concrete Mixer
  • Maximum Horsepower:99HP
  • Condition:New
  • Applicable Industries:Construction Works , Energy & Mining
  • Core Components:Engine, Gearbox, Motor, Gear, Pump
  • Showroom Location:Nigeira ;Peru ;South Africa
  • After Warranty Service:Video Technical Support, Free Spare Parts, Enginee
  • Transmission:4 Wheel Drive
  • Product Name:Self Loading Mobile Concrete Mixer Truck
  • Video Outgoing-Inspection:Provided
  • Unique Selling Point:High Operating Efficiency
  • Machinery Test Report:Provided
  • Marketing Type:New 2020
  • Transport Package:No Nude
  • Specification:6000*2600*3200
  • Trademark:TOPMAC
  • Origin:Zhenjiang Jiangsu China
  • HS Code:84743100
  • Production Capacity:50 Unit,Month
  • Package size per unit product:640.00cm * 260.00cm * 345.00cm
  • Gross weight per unit product:11000.000kg

Description

Basic Info.

Model NO. SD4000M Transmission Type Manual Emission Standard Euro 2 Displacement 1.8 Payload 11000kg Fuel Diesel Drive Mode 4X4 Self-Loading Mobile Concrete Mixer Maximum Horsepower 99HP Condition New Applicable Industries Construction Works , Energy & Mining Core Components Engine, Gearbox, Motor, Gear, Pump Showroom Location Nigeira ;Peru ;South Africa After Warranty Service Video Technical Support, Free Spare Parts, Enginee Transmission 4 Wheel Drive Product Name Self Loading Mobile Concrete Mixer Truck Video Outgoing-Inspection Provided Unique Selling Point High Operating Efficiency Machinery Test Report Provided Marketing Type New 2020 Transport Package No Nude Specification 6000*2600*3200 Trademark TOPMAC Origin Zhenjiang Jiangsu China HS Code 84743100 Production Capacity 50 Unit/Month

Packaging & Delivery

Package size per unit product 640.00cm * 260.00cm * 345.00cm Gross weight per unit product 11000.000kg

Product Description

Product Application  for  SD4000M  self loading concrete mixer

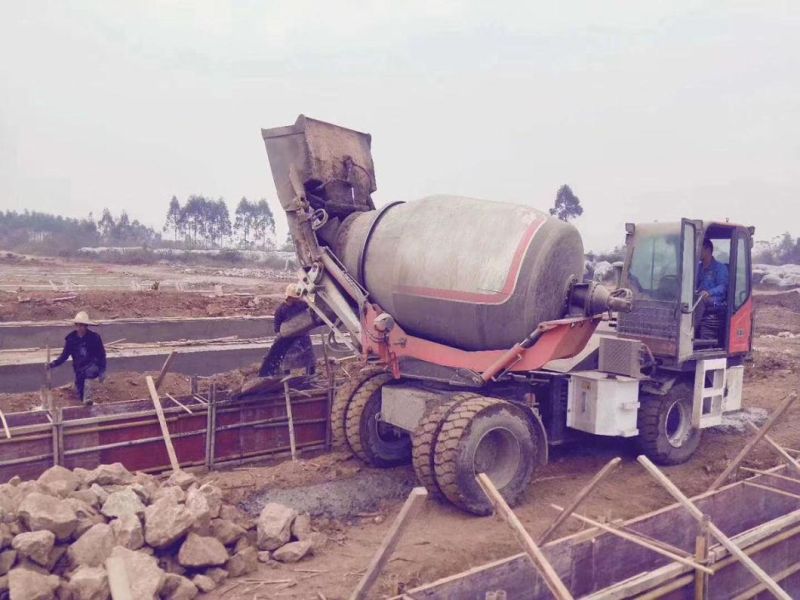

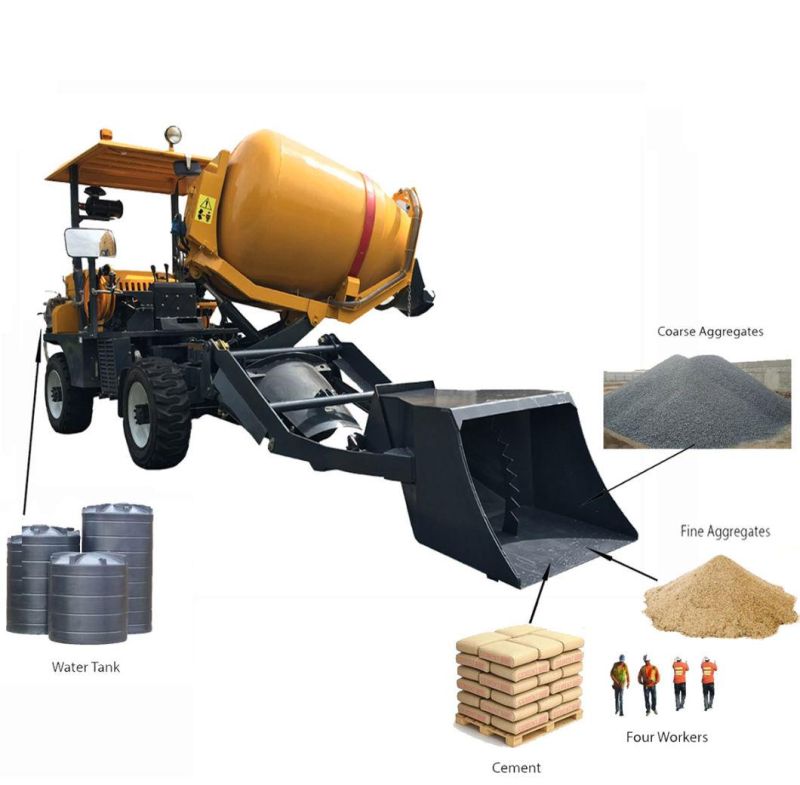

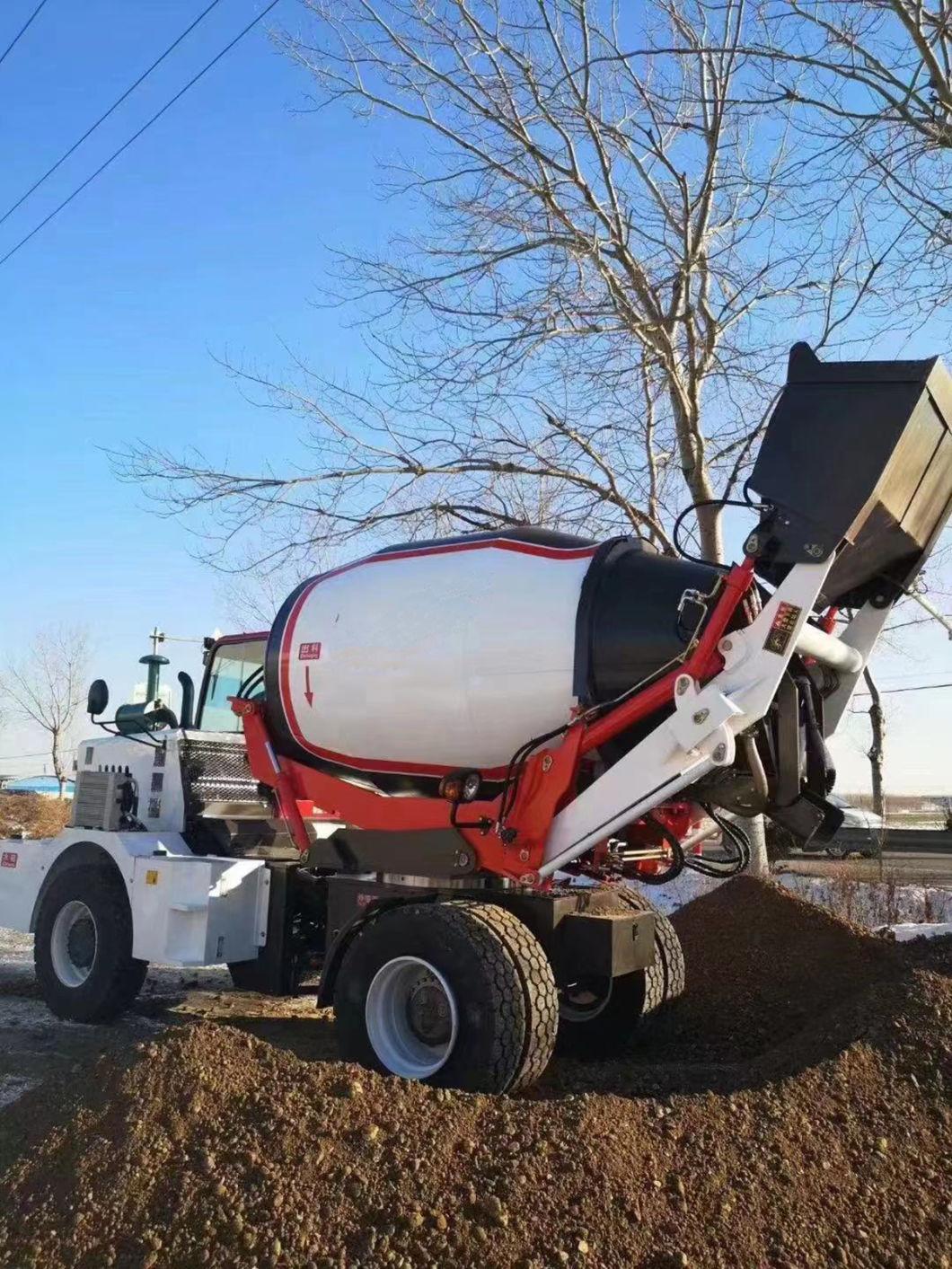

SD4000M Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful
99hp Yuchai 4102 diesel engine Diesel engine and 4 wheel  drive ,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin  could slew together through 180° for high discharge over

      The the Geometric Volume of Mixing Drum is 6.4m³. The concrete output is 4m3  per Batch, 20-28m3 per Hour.  The  specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
Topmac SD4000m Mini Self Loading Concrete Mixer Truck for Sale
Technical Parsmeters
ModelSD3000MSD4000MSD5000M
Effective capacity per batch3m34m35m3
Output Per Hour 15~21 m320~28m325~35m3
Drive typeArticular frame,4X4 drivingArticular frame,4X4 drivingArticular frame,4X4 driving
Max speed25~30 km/h25~30 km/h25~30 km/h
Grade ability30%30%30%
Mini turning radius≤7 m≤7 m≤7 m
Mini ground clearance≥248mm≥248mm≥248mm
Tire front wheel/ Rear wheel16/70-R22.5/ 16/70-R22.516/70-R22.5/ 16/70-R22.516/70-R22.5/ 16/70-R22.5
Clutch systemAll Hydraulic SystemAll Hydraulic SystemAll Hydraulic System
Gearbox2 High and 2 Low +2 Rear2 High and 2 Low +2 Rear2 High and 2 Low +2 Rear
Tipping systemHydraulic tipping and 180 angle dischargeHydraulic tipping and 180 angle dischargeHydraulic tipping and 180 angle discharge
SteeringHydraulic steeringHydraulic steeringHydraulic steering
Diesel engine115hp Yuchai 4105 diesel engine150hp Yuchai 4105 diesel engine125hp Deutz 6105 diesel engine
Weight9000kg11000kg12500kg
Bucket Capacity 0.6m30.65m30.7m3
Overall size6300×2450×3050mm6400×2600×3450mm6900×2950×3600mm
Topmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for Sale
Topmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleTopmac SD4000m Mini Self Loading Concrete Mixer Truck for Sale           Product Application  for  SD1000M  self loading concrete mixer
SD1000M Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful Xinchai ,30 kW Diesel engine and 4 wheel  drive ,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin  could slew together through 180° for high discharge over

      The the Geometric Volume of Mixing Drum is 1m³. The concrete output is 0.75m3  per Batch, 7-8m3 per Hour.  The  specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Topmac SD4000m Mini Self Loading Concrete Mixer Truck for SaleMobile Self-Loading Dumper Mixer Model SD1000M/SD1500M/SD2000M
Characters:
1. It is designed for hilly and narrow site, where big vehicle not accessible,
2. It save cost of labors, and also can give a good mixing concrete as batch plant,
3. The simple structure is easy to operate and maintenance, also cost less too.
Technical Parsmeters
ModelSD1000MSD1500MSD2000M
Effective capacity per batch1m31.5m32m5
Output Per hour5~7m38-11m310-14m3
Drive typeArticular frame,4X4 drivingArticular frame,4X4 drivingArticular frame,4X4 driving
Max speed25 km/h25~30 km/h25~30 km/h
Grade ability36%30%30%
Mini turning radius≤5.5 m≤7 m≤7 m
Mini ground clearance≥248mm≥248mm≥248mm
Tire front wheel/ Rear wheel10-16.5/10-16.520.5-16/ 20.5-1616/70-R22.5/ 16/70-R22.5
Clutch systemConstant-contact, single-disc ,dry clutchAll Hydraulic SystemAll Hydraulic System
GearboxFour forward +four rear2 High and 2 Low +2 Rear2 High and 2 Low +2 Rear
Tipping systemHydraulic tipping and 180 angle dischargeHydraulic tipping and 180 angle dischargeHydraulic tipping and 180 angle discharge
SteeringHydraulic steeringHydraulic steeringHydraulic steering
Diesel engine40hp Xinchai NC485 diesel engine 99hp Yuchai 4100 diesel engine106hp Yuchai 4102 diesel engine
Weight2450kg6200kg7500kg
Bucket Capacity0.25m30.4m30.5m3
Overall size3620×1800×2500mm5100×2350×2850mm5300×2350×2950mm
Load Container Plan1×20GP/1 Unit or 1×40HQ /3 Unit1×40HQ /2Unit1×40HQ /1 Unit
