140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification：ISO9000, CCC, TS16949, RoHS, CE
  • Transmission Type：Manual
  • Fuel：Diesel
  • Drive Wheel：4x2
  • Condition：New
  • Engine Type：Diesel

Base Info

  • Model NO.：CLW55XWC
  • Drive Model：Right Hand Drive & Left Hand Drive
  • Gearbox：6 Forwards & 1 Reverse
  • Tank Material：5mm Carbon Steel
  • Vacuum Pump：Chinese Brand, Italy Brand or Other Imported Brand
  • Fecal Suction Pipe：5m
  • Suction Time：<5min
  • Painting：Customized
  • Delivery Time：30 Days
  • Certificate：ISO CCC SGS BV
  • Tanker Volume：2m3, 3m3, 4m3, 5m3, 6m3, 8m3, 10m3, 12m3, etc.
  • Chassis Brand：Dongfeng, Foton, JAC, etc.
  • Tire：4 Tires with One Spare
  • Transport Package：Naked, RO-RO, Bulk, Container
  • Specification：4201*1475*1870mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：87059099
  • Production Capacity：500 Units,Month

Description

The Paremeters of EngineManufacturer/ModelLaidong/4801QBRated Power102hpFuel TypeDiesel oilDisplacement/Capacity3707mlEmission StandardEuro 6CylinderStraight/4/intercoolingMax. torque170N.mVelocity3200rpmThe Parameters of Equipment Tank Capacity3-5 M3 / 3000-5000LitersVacuum Pump Rotation Speed800r/m-1400r/mMax. Suction Lift>6mVacuum>500mmHgRotation Direction ClockwiseLength of Pipe5mTime for full suction<5minBasic Equipment Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. Optional Equipment Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

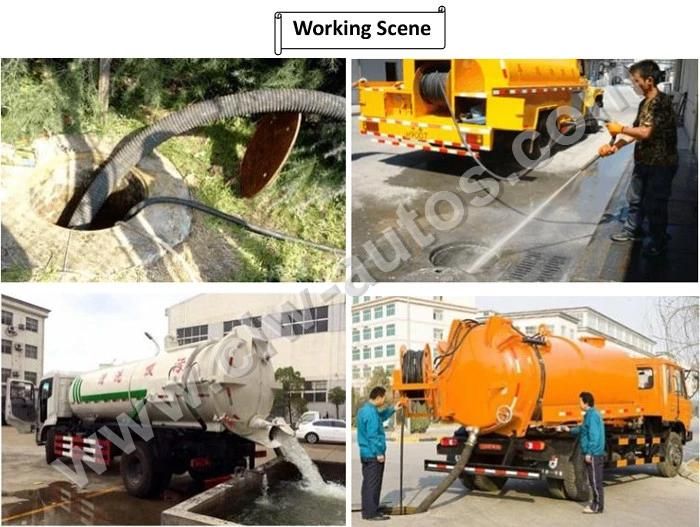

Reference photos

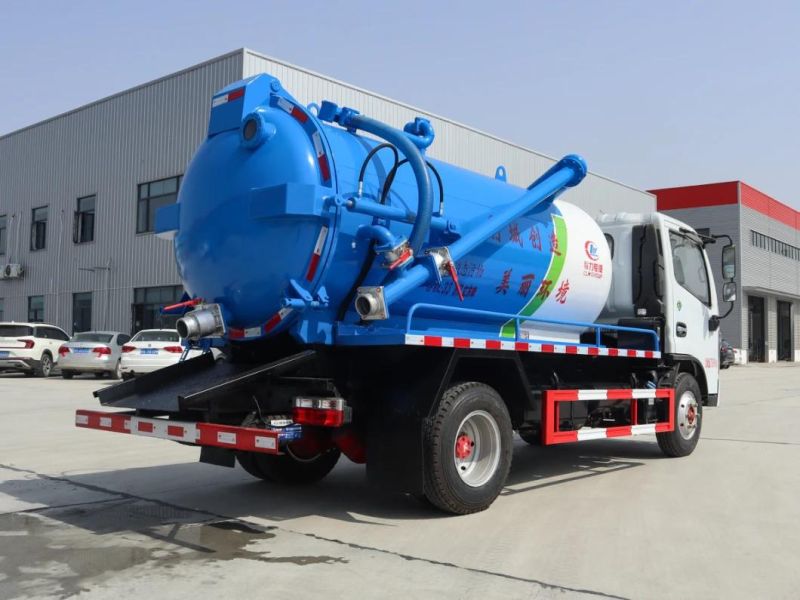

140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk

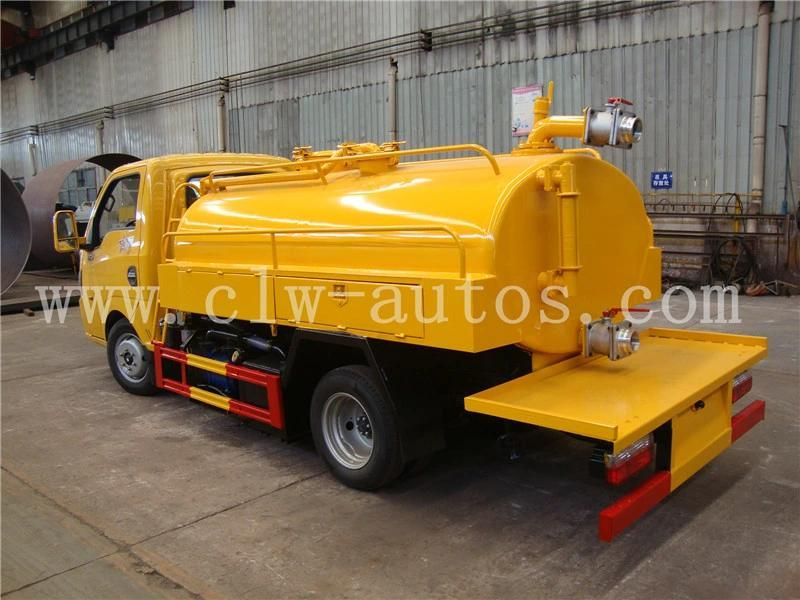

Other types of suction truck

140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk

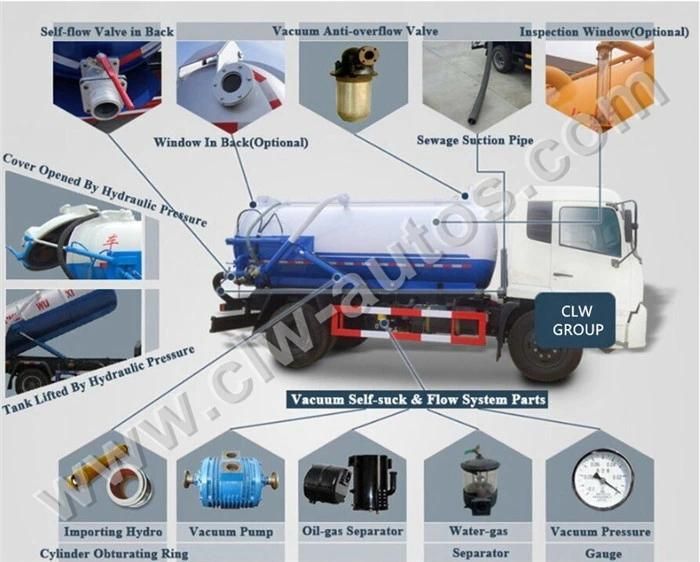

Truck diagram
140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk
140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk
140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk

The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk
140HP 4*2 Sweage Suction Truck with Vacuum Pump for Waste Water Fecal Transport Suction Trcuk
Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.


Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
