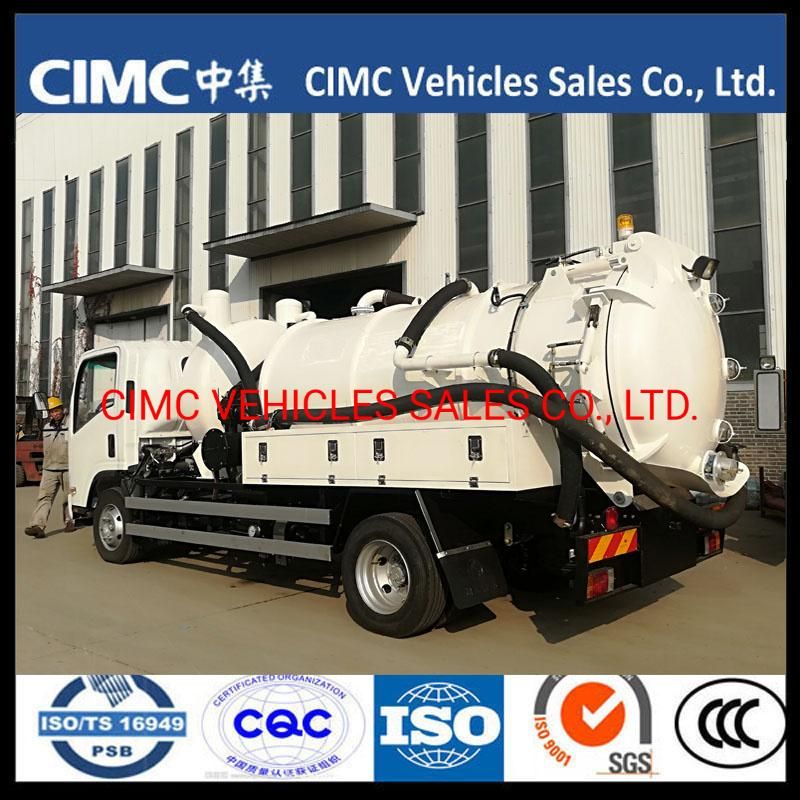

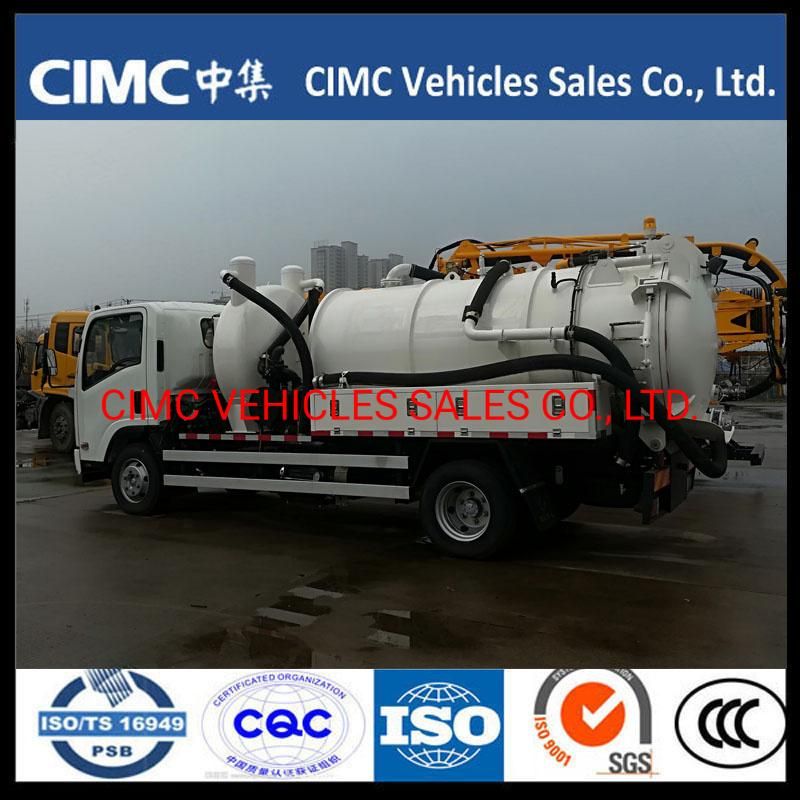

Isuzu Nqr 10cbm Sewer Suction Truck Mounted 10000L Sewage Tank 5000L
CIMC VEHICLES SALES CO., LTD.- After-sales Service：All Genuine Parts Available
- Warranty：1 Year
- Certification：ISO9000, CCC, TS16949
- Emission Standard：Euro 5
- Payload：10t
- Transmission Type：Manual
Base Info
- Fuel：Diesel
- Tank Volume：5000L
- Drive Wheel：4x2
- Hoesrpower：150-250hp
- Condition：New
- Engine：4HK1-TCL
- Cylinder No.：4
- Transmission：Mld-6q
- Wheelbase：3815mm
- Gvw：10000kg
- Vacuum Volume：5000L
- Tire：8.25-16, 7PCS
- Cabin：Isuzu Nqr
- Vacuum Pump：Water-Cooled Liquid Ring Vacuum Pumps
- Cooling Water Tank for Vacuum Pump：1000L
- Transport Package：Nude Packing
- Specification：ISO, TS16949, CCC
- Trademark：ISUZU
- Origin：China
- HS Code：8705309000
- Production Capacity：1000PCS,Month
Description
Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance BatteryUpper Body Specs
1 Superstructure
Vacuum tank Suitable for the transport of non hazardous waste products
2 Pressure/Vacuum tank
Shape Cylindrical shaped
Material St52
Capacity 4600L
Wall thickness 6mm
Head thickness 6mm
Design pressure full vacuum
Working pressure -0.98bar
Stiffening ring cold bend U-sectional external stiffening rings

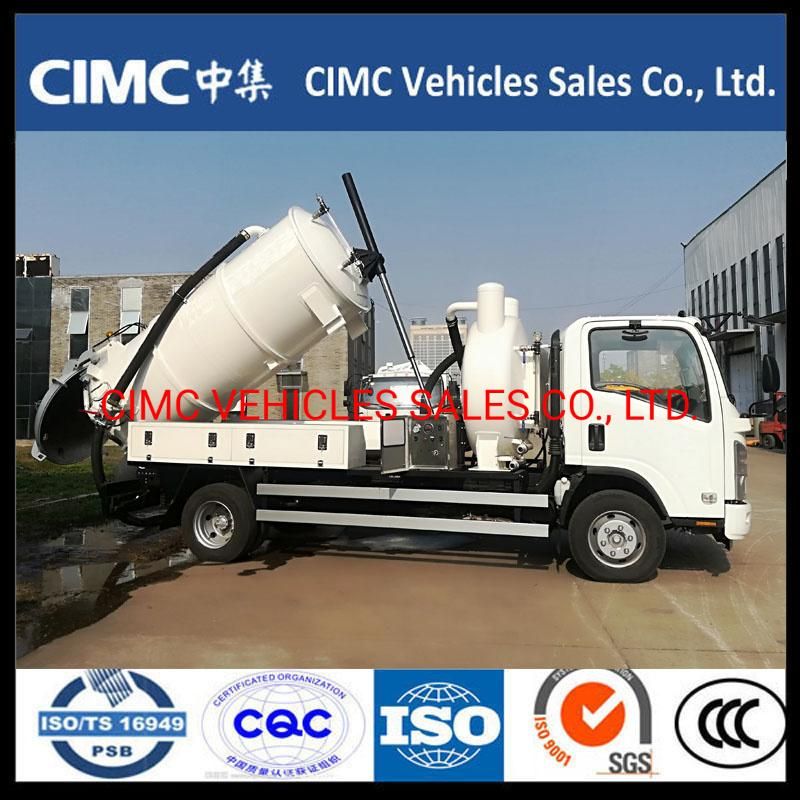

Tipping cylinder Front tipping cylinder for tank unloading at 45 degree
Safety support safety valve for easy working under a tipped tank
Liquid level mounted at the rear of tank body. Plugs at the top and bottom of indicator for removing sludge
Over pressure device over pressure valve at the top of tank
Vent Valve is mounted to control the vacuum inside the tank
Discharge Gutter At the rear of the tank in order to keep the rear of the vehicle clean
3 Rear cover
Operation hydraulic operation
Safety Hydraulic valve automatic check
Hinges Heavy duty, adjustable hinges
Locking mechanism Hydraulic operated clamp
Seal Positive seal with rubber seal in neoprene
Inlet valve check valve ND100mm
Outlet valve check valve ND100mm
4 Vacuum pump
Type Water-cooled liquid ring vacuum pumps
Model 2BE1-153, Kenflo brand
Air flow 800 m³/hr
Max Vacuum 98%
Power requirement 20 kW
Speed Max 1500 rpm
The vacuum pump engaged and disengaged from main control panel
Mounting within wheelbase
Drive line engaged and disengaged in cab
Pump protection 1)venting ball valve inside tank body
2)filter 3)automatic vacuum sniffer valve
5 Cooling water tank for vacuum pump Capacity 1000 L
Material St52
Wall thickness 4 mm
Type Cylindrical tank, mounted just behind the cabin.
Fittings 2" filling device with 2" ball valve, coupling and a no back siphonhydrant
2" vent line,2" discharge duct with 2" ball valve and coupling. Full depth plexi sight glass with approved isolation valves.
Manhole 1 Off manhole, diam. 450mm
6 Suction duct
Diameter ID100mm(4")2.5m Length
Material PVC Mild steel and rubber hosing
Accessory 4" non-return valve
Ductwork over the rear hinge, so duct can work even when tank is lifted
7 Sub-frame
Sub frame Executed in solid steel profile and mounted according to the prescriptions of the chassis supplier
Hinge shafts The tank is at the back provided with solid and flexible hinge points
Tank support The tank is fitted at the front with one supports provided with elastic blocks of gum
8 Hydraulic installation
Hydro-pumps The necessary hydraulic pumps and cylinder are mounted
Oil reservoir big diameter oil tank
Commands Hydraulic commands for rear door open/close
rear locking/unlocking tipping tank
9 Additional safety
Emergency stop Emergency stop situated on main control panel
Working lights One off positioned at the right of vehicle in accordance withcustomer
10 Equipment
Hose Storage Full length open hose storage-box on right sides of the chassis. Boxes to be in steel
Tool box One lockable aluminum watertight box to be mounted
Traffic regulations All necessary items to comply with all current traffic regulations.
Mud wings Thermoplastic mud wings with spray suppression
11 Control
Controls All necessary controls needed for good operation are provided
Controls All controls are mounted in a PVC watertight box
Labels The whole unit is foreseen with clearly engraved labels where necessary
12 Painting
Sandblasting All steel and SS parts are sand blasted to SA 2.5 prior to painting
Painting The whole unit is painted with primer and finished paint
Easy worn spare parts list
Contact
Mr. Allen
Company information
CIMC VEHICLES SALES CO., LTD.
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.
Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Website: yzcimc.en.made-in-china.com
1 Superstructure
Vacuum tank Suitable for the transport of non hazardous waste products
2 Pressure/Vacuum tank
Shape Cylindrical shaped
Material St52
Capacity 4600L
Wall thickness 6mm
Head thickness 6mm
Design pressure full vacuum
Working pressure -0.98bar
Stiffening ring cold bend U-sectional external stiffening rings
Tipping cylinder Front tipping cylinder for tank unloading at 45 degree
Safety support safety valve for easy working under a tipped tank
Liquid level mounted at the rear of tank body. Plugs at the top and bottom of indicator for removing sludge
Over pressure device over pressure valve at the top of tank
Vent Valve is mounted to control the vacuum inside the tank
Discharge Gutter At the rear of the tank in order to keep the rear of the vehicle clean
3 Rear cover
Operation hydraulic operation
Safety Hydraulic valve automatic check
Hinges Heavy duty, adjustable hinges
Locking mechanism Hydraulic operated clamp
Seal Positive seal with rubber seal in neoprene
Inlet valve check valve ND100mm
Outlet valve check valve ND100mm
4 Vacuum pump
Type Water-cooled liquid ring vacuum pumps
Model 2BE1-153, Kenflo brand
Air flow 800 m³/hr
Max Vacuum 98%
Power requirement 20 kW
Speed Max 1500 rpm
The vacuum pump engaged and disengaged from main control panel
Mounting within wheelbase
Drive line engaged and disengaged in cab
Pump protection 1)venting ball valve inside tank body
2)filter 3)automatic vacuum sniffer valve
5 Cooling water tank for vacuum pump Capacity 1000 L
Material St52
Wall thickness 4 mm
Type Cylindrical tank, mounted just behind the cabin.
Fittings 2" filling device with 2" ball valve, coupling and a no back siphonhydrant
2" vent line,2" discharge duct with 2" ball valve and coupling. Full depth plexi sight glass with approved isolation valves.
Manhole 1 Off manhole, diam. 450mm
6 Suction duct
Diameter ID100mm(4")2.5m Length
Material PVC Mild steel and rubber hosing
Accessory 4" non-return valve
Ductwork over the rear hinge, so duct can work even when tank is lifted
7 Sub-frame
Sub frame Executed in solid steel profile and mounted according to the prescriptions of the chassis supplier
Hinge shafts The tank is at the back provided with solid and flexible hinge points
Tank support The tank is fitted at the front with one supports provided with elastic blocks of gum
8 Hydraulic installation
Hydro-pumps The necessary hydraulic pumps and cylinder are mounted
Oil reservoir big diameter oil tank
Commands Hydraulic commands for rear door open/close
rear locking/unlocking tipping tank
9 Additional safety
Emergency stop Emergency stop situated on main control panel
Working lights One off positioned at the right of vehicle in accordance withcustomer
10 Equipment
Hose Storage Full length open hose storage-box on right sides of the chassis. Boxes to be in steel
Tool box One lockable aluminum watertight box to be mounted
Traffic regulations All necessary items to comply with all current traffic regulations.
Mud wings Thermoplastic mud wings with spray suppression
11 Control
Controls All necessary controls needed for good operation are provided
Controls All controls are mounted in a PVC watertight box
Labels The whole unit is foreseen with clearly engraved labels where necessary
12 Painting
Sandblasting All steel and SS parts are sand blasted to SA 2.5 prior to painting
Painting The whole unit is painted with primer and finished paint
Easy worn spare parts list
| Item | Description | Size | Quantity |
| 1 | ISUZU chassis tools | 1set | |
| 2 | Spare tyre | 1pc | |
| 3 | Tyre stopper | 2ps | |
| 4 | Warning cone | 2ps | |
| 5 | Special suction pipe | 4" | 1pc |
| 6 | Wrench for big ball valve | Special | 1pc |
| 7 | Fire extinguishing water hose(with quick couplings) | DN65 | 1set |
| 8 | Strength suction hose with steel wire inside) | 4" | 2.5m |
| 9 | Alu alloy quick coupling | CB100-C-T | 1set |
| 10 | Single-ear stepless clamp | ID95mm | 2ps |
| 11 | Stainless steel clamp | 33-57 | 2ps |
| 12 | Sight glass tube | ID90*5 | 1m |
| 13 | Combined sealing ring gasket | ID18*2 | 2ps |
| 14 | Combined sealing ring gasket | ID27*2 | 2ps |
| 15 | Combined sealing ring gasket | ID32*2 | 2ps |
| 16 | Quick insert pneumatic connector | PL06-02 | 2ps |
| 17 | Quick insert pneumatic connector | PL08-02 | 2ps |
| 18 | Quick insert pneumatic connector | PE08 | 2ps |
| 19 | Quick insert pneumatic connector | PE06 | 2ps |
| 20 | fuse | 15A | 2ps |
