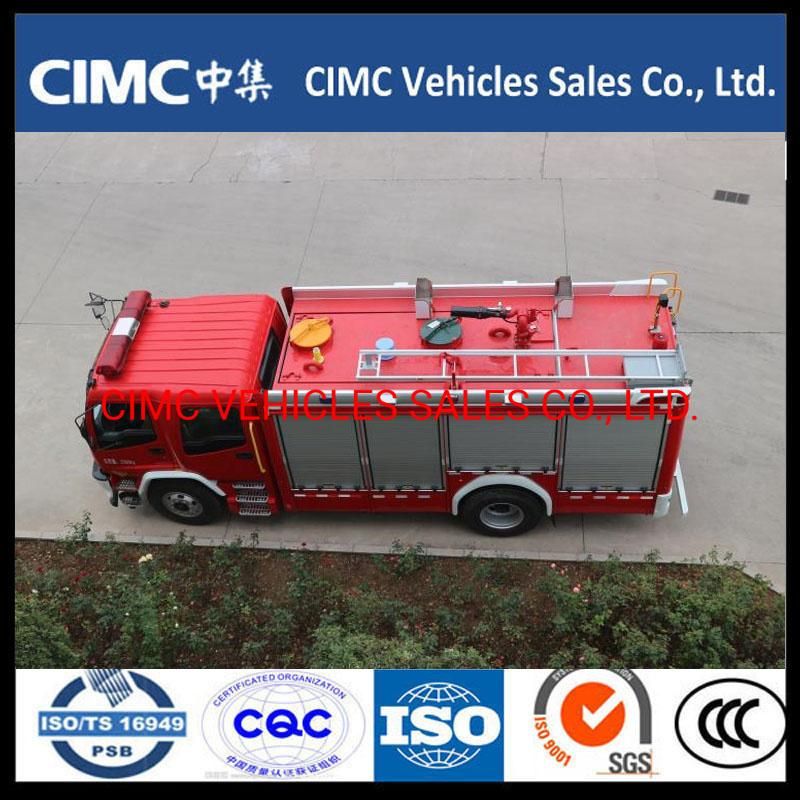

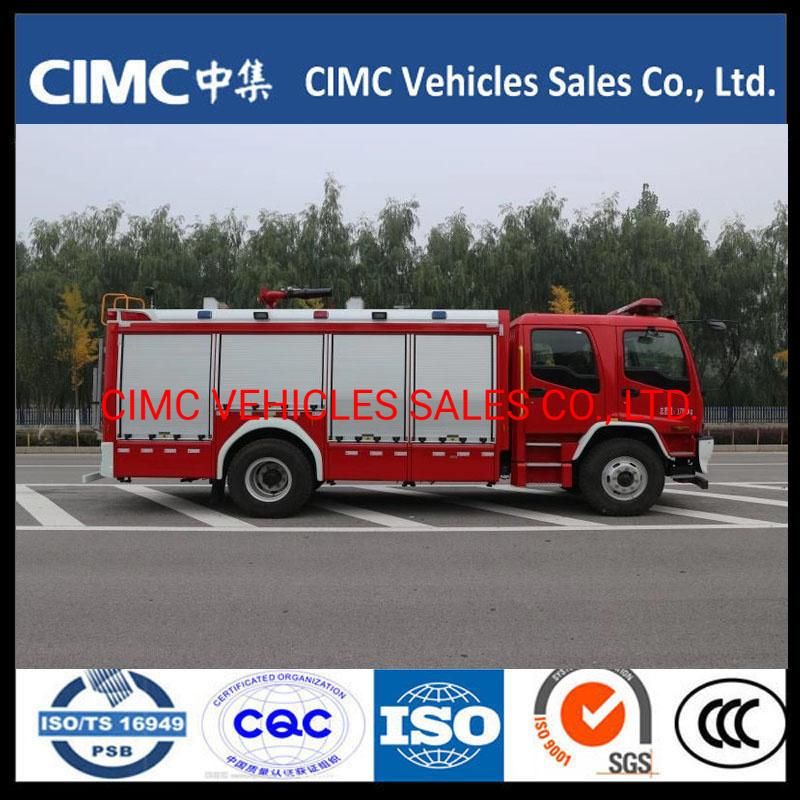

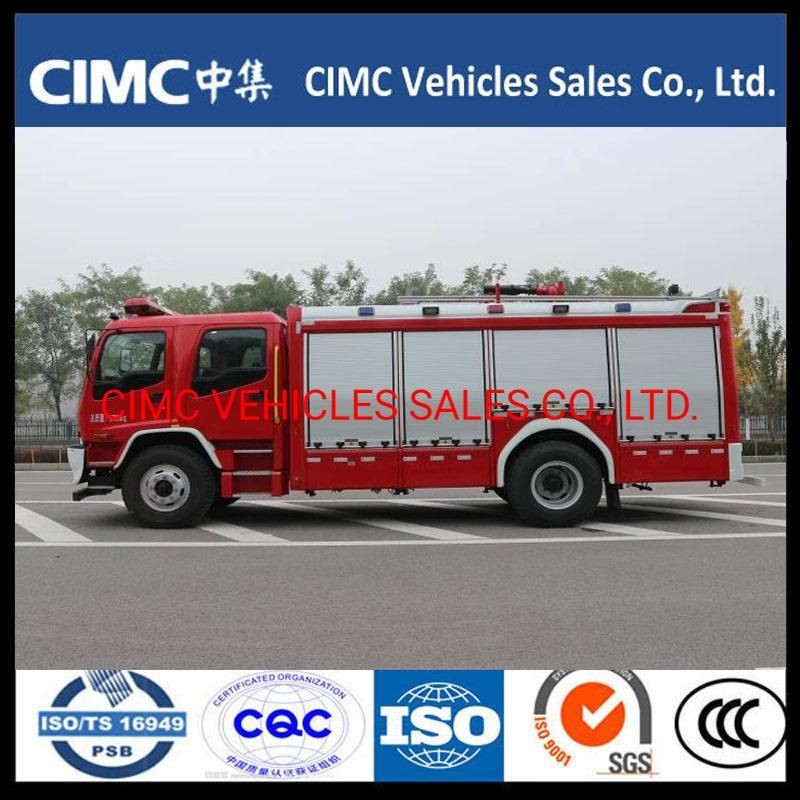

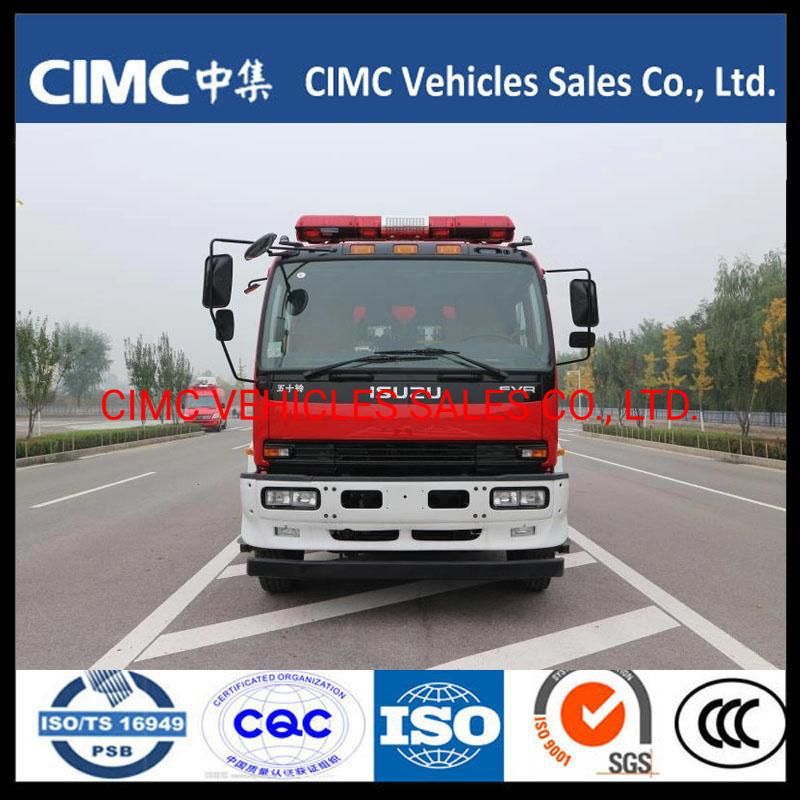

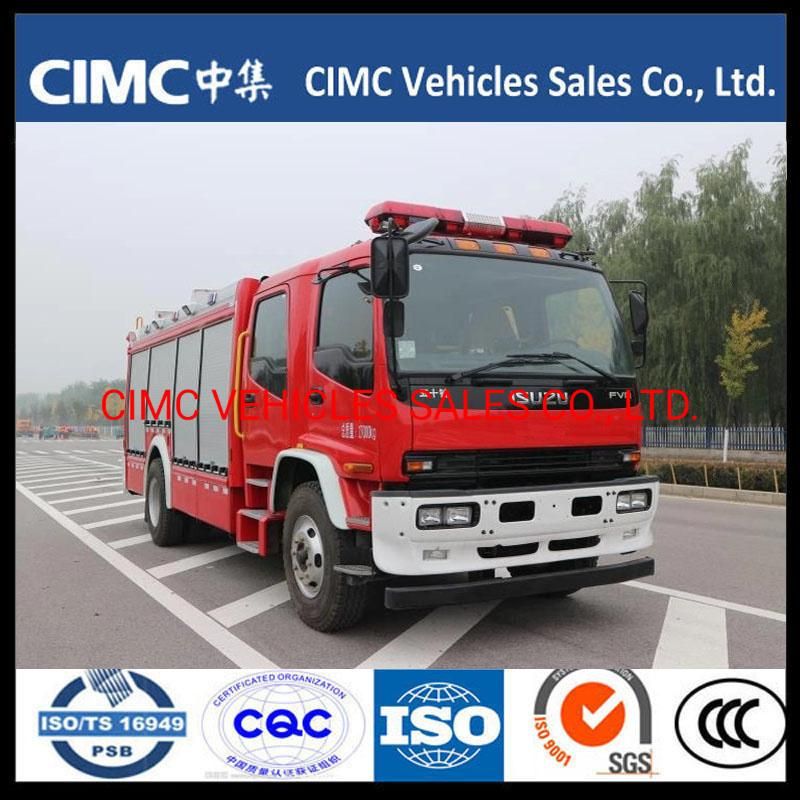

Isuzu Forward Fvr 6HK1 6000L 7000L Water and Foam Tank Fire Fighting Vehicle
CIMC VEHICLES SALES CO., LTD.- After-sales Service：All Genuine Parts Available
- Warranty：1 Year
- Type：Fire Truck
- Certification：ISO9000, CCC, TS16949
- Volume：3001-5000L
- Emission Standard：Euro 5
Base Info
- Transmission Type：Manual
- Payload：20T
- Fuel：Diesel
- Drive Wheel：4×2
- Horsepower：251-350hp
- Condition：New
- Engine：6HK1-TCL
- Cylinder No.：4
- Transmission：Mld-6q
- Wheelbase：4500mm
- Tire Size：11r20-16pr
- Gvw：17000kg
- Transport Package：Nude Packing
- Specification：ISO, TS16949, CCC
- Trademark：ISUZU
- Origin：China
- HS Code：8706002200
- Production Capacity：1000PCS,Month
Description
EngineEngine model:6HK1-TCL Power:241HP( 177kw) Max Torque:981N.m/1450rpm Displacement:7.79L Emission:Euro5 Fuel Type:Diesel Transmission MLD-6Q, 6 forward & 1 reverse PTO Full Power PTO Tyre 11R20-16PR, 7PCS Cab Structure 4 doors 2 row Standard configuration Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance Battery, Data Recorder 500mm Water tank inlet hole with green tank cover 1 DN125 overflow port of water tank 1 Liquid level indicating sensor 1 Drain outlet of water tank,DN50 Manual ball valve control 1 DN150 Water tank outlet 1 DN65 Water injection from pump to tank
Pipeline System
Control cabinet and instrument panel
Electrical system
Vehicle data
Contact
Mr. Allen
Company information
CIMC VEHICLES SALES CO., LTD.
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.
Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Website: yzcimc.en.made-in-china.com
| Position | Between cab and tank |
| Structure | Steel frame, aluminum alloy mask |
| Internal equipment rack | Aluminum alloy profile, aluminum alloy partition |
| Rolling shutter door | One left and one right, pull rod type, with lock |
| Interior lighting | LED white light band, open and close with rolling shutter door |
| Flip pedal | Under the roller shutter door, bearing 150kg, yellow flashing warning light |

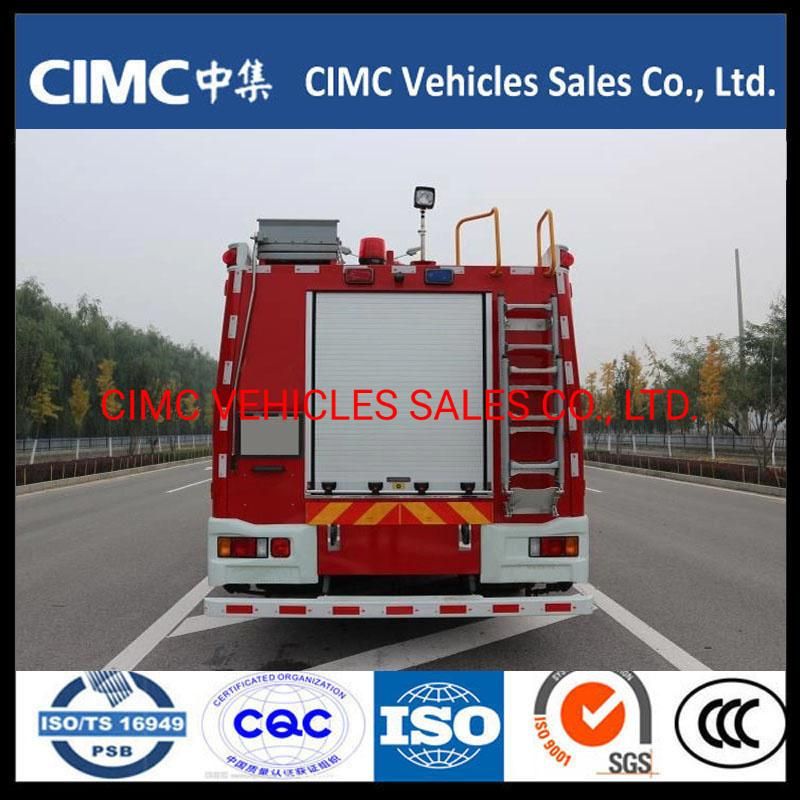

| Position | Rear vehicle |
| Structure | Steel frame, aluminum alloy mask |
| Internal equipment rack | Aluminum alloy profile, aluminum alloy partition |
| Rolling shutter door | One left and one right, pull rod type, with lock |
| Interior lighting | LED white light band, open and close with rolling shutter door |
| Flip pedal | Under the roller shutter door, bearing 150kg, yellow flashing warning light |
| Back stairs | Foldable, aluminum alloy, on the right side of the rear of the vehicle |
| Suction pipeline | One DN150 internal buckle type interface, equipped with filter screen and blind cover |
| Outlet pipeline | Low pressure pipeline: 4 DN80 manual ball valves, with interface and blind cover Medium pressure pipeline: 2 DN65 manual ball valves, with interface and blind cover |
| External water injection pipeline | Up turn type, 2 DN80 manual ball valves, with interface and blind cover |
| Turret outlet pipeline | One DN100 electric pneumatic butterfly valve |
| Tank filling line | One DN65 electric pneumatic butterfly valve |
| Other function settings | Automatic water reception |
| Position | Pump room rear outside |
| Material | Cast aluminum alloy |
| Technology | The surface of control cabinet is treated by sandblasting and anodizing |
| Control cabinet accessories | lock up flap, instrument panel light, buzzer alarm |
| Control switch and key | Instrument lighting, water diversion, tank injection, tank outlet, turret outlet, automatic water receiving, hand throttle, emergency stop, etc. |
| Instrument display | Speed value, vacuum value, pressure value, water level value and liquid level value |
| Main power switch | installed |
| Alarm lamp | one LED red long row alarm light on the top of the cab; three red and blue LED strobe lights on the upper part of both sides of the vehicle |
| Alarm light alarm controller | Power 100W, with handheld loudspeaker in the cab |
| Electronic search lamp | 70W, at the rear of the roof |
| Working light | Two upper parts on both sides of vehicle , LED lighting |
| Back Guide Monitor | 7-inch color LCD in the cab |
| Other electrical accessories | Fast dispatch support system (for charging chassis battery) |
| Data name | Amount |
| Chassis frame number rubbings | 1 |
| Engine number rubbings | 1 |
| Driver's Manual | 1 |
| Product warranty manual, warranty card | 1 |
| Vehicle conformity certificate | 1 |
| Chassis 3C certification mark | 1 |
| Vehicle operation and maintenance instructions | 1 |
| Vehicle certificate | 1 |
| Vehicle 3C certification mark | 1 |
| Electrical schematic diagram of upper garment | 1 |
| Operating instruction of fire pump | 1 |
| Operating instruction of roof Turret | 1 |
| Vehicle conformity certificate | 1 |
