• Model NO.：SY5150GSS
• Transmission Type：Manual
• Payload：10t
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Cab：Rhd,LHD, Sinotruk Golden Prince L2000
• Engine：Yc6j190 33 190HP
• Gear Box：6-Speed
• Tire：9.00-R20
• Water Tank Material：Carbon Steel, Stainless Steel
• Water Tank Material Thickness：4-5mm
• Water Pump：Optional
• Front Water Sprinkler：Optional, Sprinkling Width>14m
• Rear and Side Water Sprinkler：Optional, Sprinkling Width>14m
• Rear Working Platform with Water：Optional, Range>28m
• Transport Package：Nuke
• Specification：8200*2500*2900
• Trademark：SUNY
• Origin：Hubei, China
• HS Code：8705909990
• Production Capacity：5000 Units , Year

Overview

Product Description

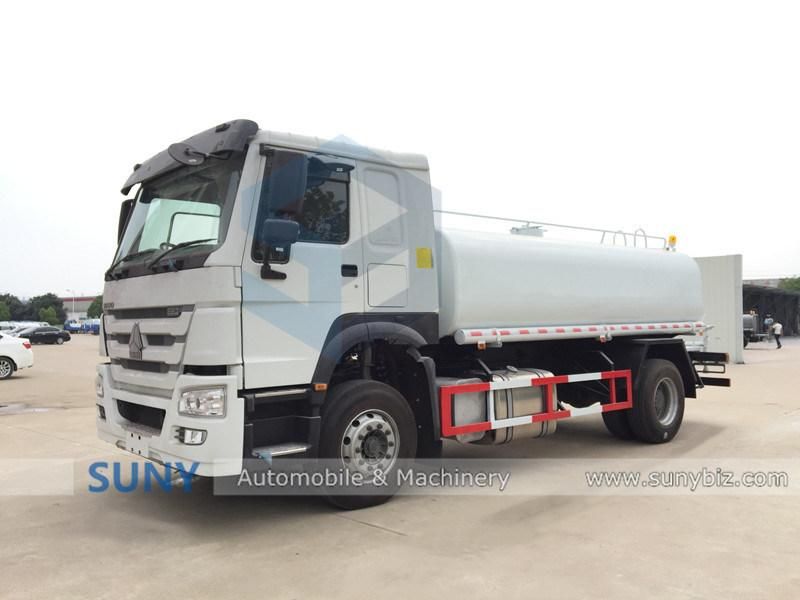

Sinotruk Golden Prince 190hp RHD LHD 15000L Water Tank Truck
A. RHD / LHD water truck
B. Euro 3 190Hp engine
C.12-15CBM tank truck

1. Water truck Brief introduction:

Tank volume is 3-30M3,watering tank with pump,when water truck is transporting drinking water , inner face must make anti-corrosive paint.
Water tank truck is used for garden environment-keeping, Municipal maintains, area virescence, road building, large  government department transporting drinking water.
2. 3-30T water tank truck advantage :

(1).  More type for choosing.
(2).  Specialized in water truck 10 years
(3).  A competitive price.
(4). With certificate of CCC,ISO9001,BV,SGS,etc.
(5). Chassis could choose DFAC,DONGFENG,FOTON,SINOTRUK,SHACMAN,JAC,Northbenz,JMC,I-S-U-Z-      U,Style,CAMC,FAW,JAC,IVECO,etc.
(6).Engine could choose Commins,Yuchai,Changyang,Weichai,Sinotruk,etc.and the horse power could choose by the chassis and your requirement.
(7). The tank volume is 3000-30000L
(8). Material:carbon steel or stainless steel
(9) .Produce as you requirement

3. Water tanker truck Special function details:

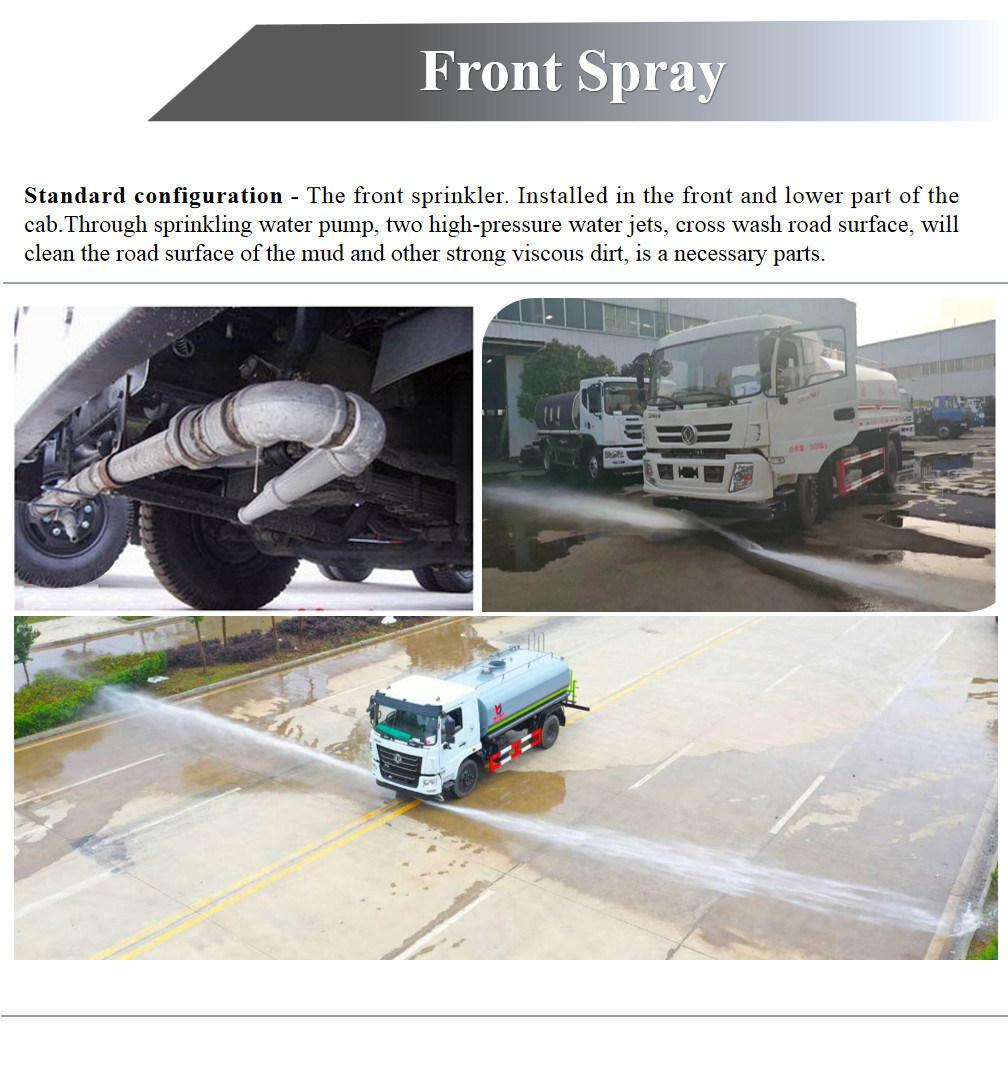

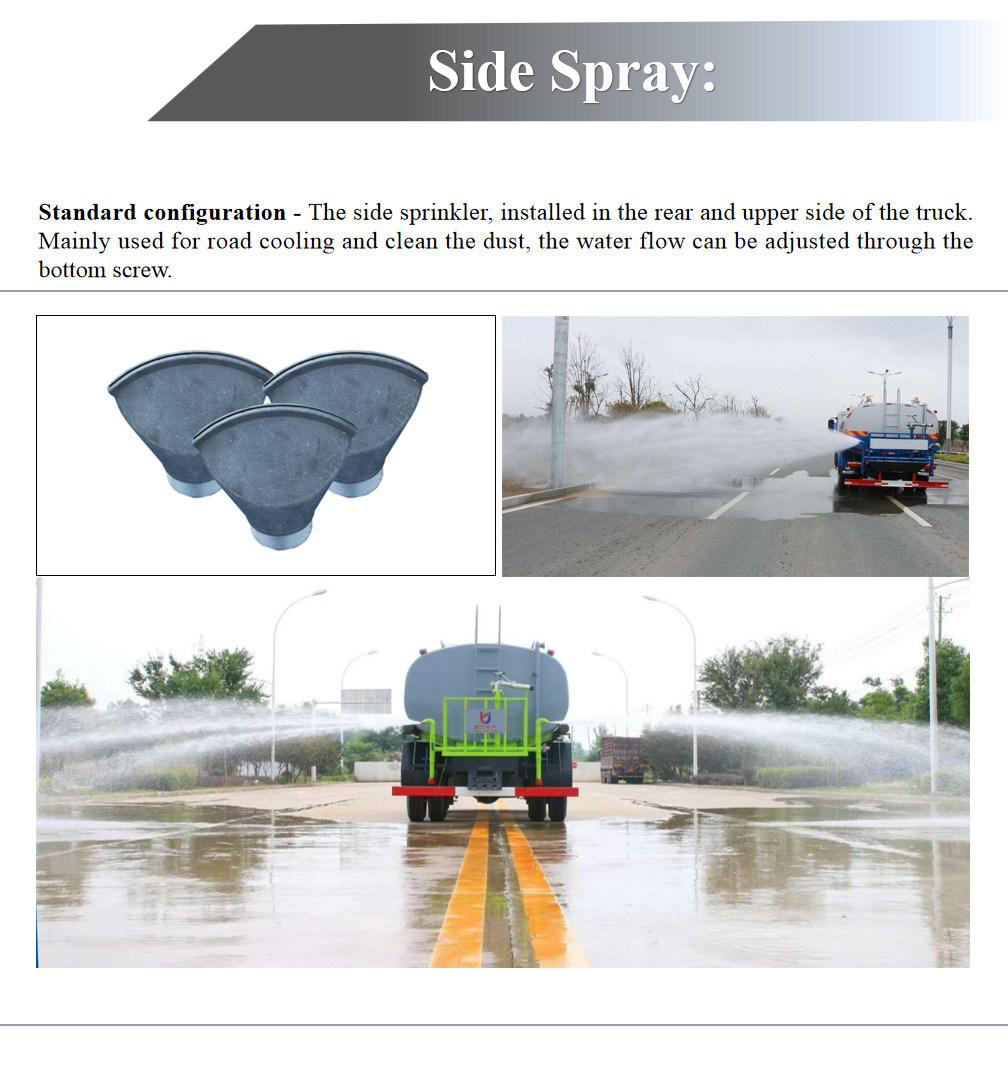

A. Front (rear ,side)sprinkler :sprinkling width is more than 14m
B. Rear working platform with water cannon: range is more than 28m
C. Pump(optional)
    a. 65QZ40/45 ,flux(m3/h):40,rating speed(r/min):660,pumping head(m):45,self-suction height(m):6.5,
    b. 80QZ60/90,flux(m3/h):60,rating speed(r/min):1000,pumping head(m):90,self-suction height(m):6.5.
D. Water truck Material: high quality carbon stell,use 4mm to 6mm.
E. Water truck Structure: welding, there is clapboard inner when fill drinking water.

Product Parameters

4. Water tank truck specificattion:

Products Technical SpecificationType 4*2 Water Tank TruckBrandSinotruk golden princeCab L2000,One and half row, with A/C ,RHD or LHDVehicle Description  Overall dimensions(mm)8200*2450*2900G.V.W (kg)16000Curb weight(vehicle) (kg)6255Loading capacity (kg)15000Max speed (Km/h)90Engine Description Engine modelYC6J190 33Maximum power140KW/190HPDisplacement (lit)4500Emission standardEuro 3Chassis Description Wheel base(mm)4700,4500Type of fuelDieselGear box 6-speed with over driveBrake system Air brakingOperation control systemSteering wheelElectric system24VTyres&Tire quantity9.00-R20Cargo Body DescriptionFact volume:12-15M3
Thickness:4-5mm
Material: Q235 carbon steel
Equipped with front(rear, side)sprinkler(sprinkling width>14m )
Equipped with rear working platform with water cannon (range>28m)
Equipped with Wei Long pump(suction lift>6m)
Equipped with fire valve, water valve, and filter gauze

Company Profile

Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and quality win for the purpose of customers' intentions.

We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which are widely used in environmental protection, city construction, transportation and many other fields.

Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers all over the world and Chinese main manufactures.

With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and efficiency, meanwhile continuously promoting our service for all the customers all over the world!

5. Product List :

1.  Fuel tank truck/trailer/semi-trailer/container.
2.  Water tank truck/trailer/semi-trailer/container.
3.  Chemical tank truck/trailer/semi-trailer/container.
4.  Bitumen tank truck/trailer/semi-trailer/container.
5.  Bulk powder tank truck/trailer/semi-trailer/container.
6.  Gas tank truck/trailer/semi-trailer/container.
7.  Dump truck/trailer/semi-trailer
8.  Truck mounted crane
9.  Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

6. truck more optional:

---Steering control : Left hand drive ( LHD ) / Right hand drive ( RHD )
---Drive type : 4x2 ~ 4x4 ~ 6x2 ~ 6x4 ~ 6x6~8x4
---Emission standard: Euro 1 , Euro 2 , Euro 3 , Euro 4 , Euro 5
---Truck brand : DONGFENG , SINOTRUK , SHACMAN , FOTON , FAW , BEIBEN , JAC , IVECO , JMC , YUEJIN , HINO , UD , ISUZU etc.

7. Contact information

And more customize products.
All more detailed specification of truck
please kindly contact with



We warmly welcome you to our factory fr inspection.
We also produce other different kinds of special automobile.
