• Model NO.：CLW
• Payload：20T
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Truck：Fire Fighting Truck
• Allowable Passengers in Cab：2+3
• Water Diversion Time：Less Than 35s
• Air Conditioner：A,C or Without A,C
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Steering Wheel：LHD or Rhd
• Water Rated Flow：30L,S
• Fire Monitor Range：More Than 45m
• Transport Package：Naked, Waxing and So on
• Specification：CCC, ISO9001
• Trademark：CLW
• Origin：Hubei, China
• Production Capacity：800sets,Month

ItemunitparameterVehicle model   DONG-FENG 5-10CBM Fire Fighting TruckChassis model EQ1126KJ1Overall dimensionsmm8300*2500*3300 Curb Weightkg7500Payload4200 Wheel base      mm4700 F/R track base1900/1800Exhaust/hpml/ps5900/190Max speedkm/h90Tire specification
 9.00R20Engine type
 B190 33Traction system
 4*2Transmission
 6-speed with over driveNumber of axles
 2Axle Load
 3900/8600Leaf Spring8/10+7Allowable passengers in Cab3+3Engine Cummins,6-cylinder in-line with water cooling   GB3847-2005 emission standardEquipmentCabin: Flat head, metal-enclosed cab, double-row seat, four door, panoramic curved windshield
Water Tank Capacity 4000L, Powder Tank Capacity1000L
Fire Monitor range: ≥ 45M
Pump: type ES30, Water Diversion Way: circulation,
Water Diversion Time: ≤35s, Rated Flow: 30L/s
Pump Room: Middle or rear-mounted pump. Left and right side of the pump room, storage compartment side have
the new style high-strength alloy aluminum rolling doors
Electrical Equipment: The top of cab equipped with long-lined light, the back of the truck equipped with 24V, 60W fire
lighting, the top of both sides of the truck equipped with red and blue matched strobe lights, the down side installed
security lights. Crew rooms, storage compartment and pumping room equipped with lights plus 100W siren, rotary
light switches and reserved communication equipment ports.

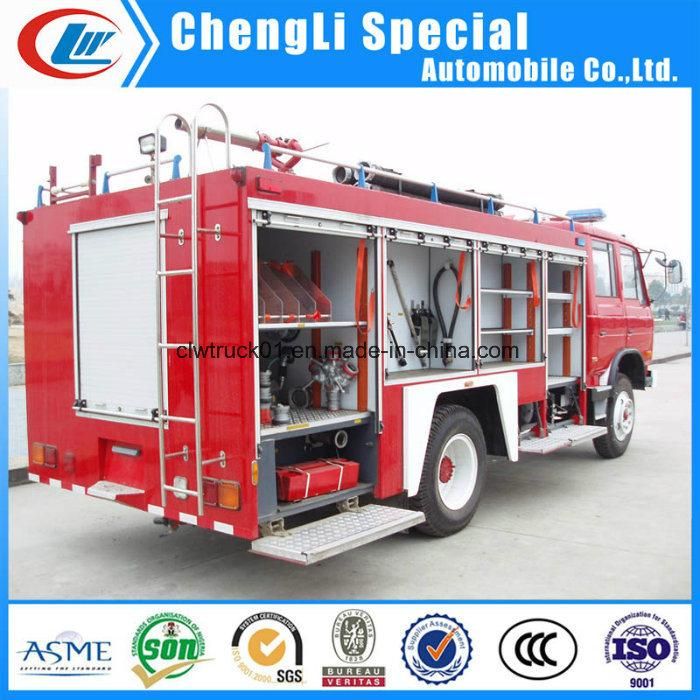

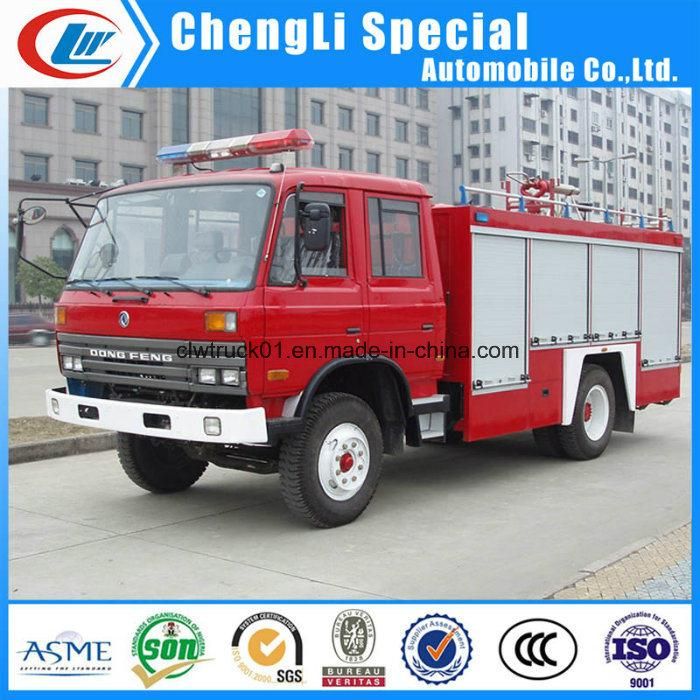

 Product photo for reference:




Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Packing and Shipping



Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.

Other Products


1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
