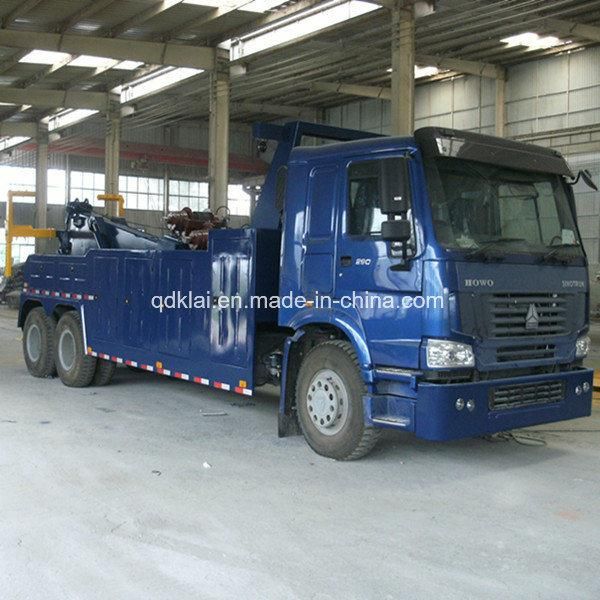

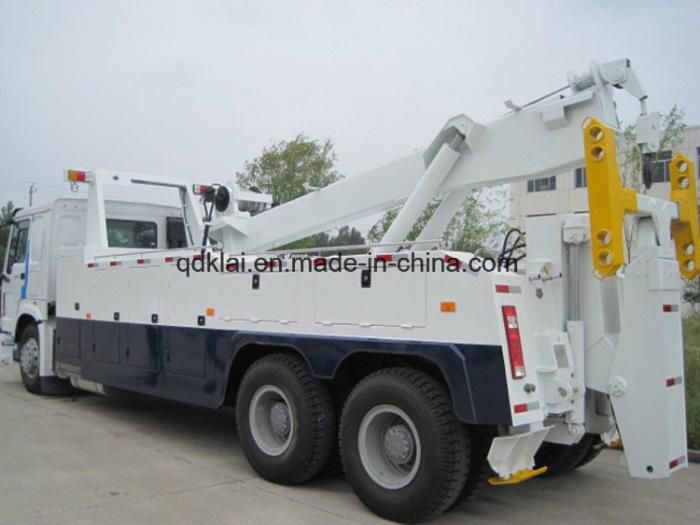

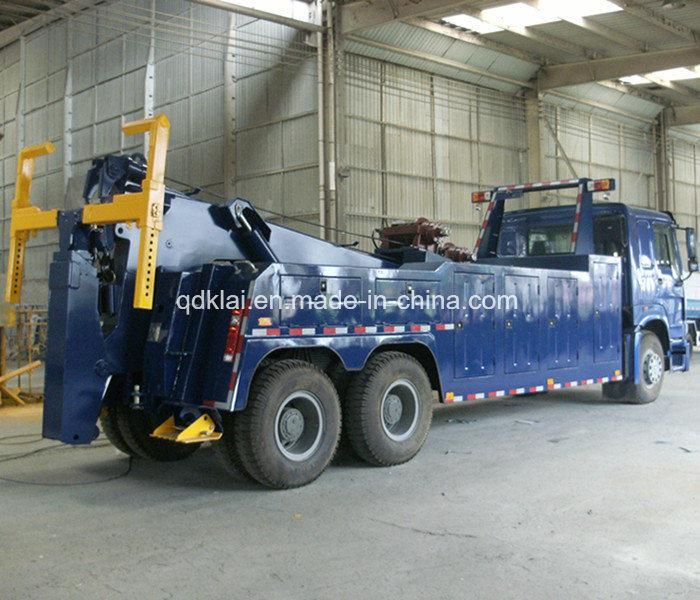

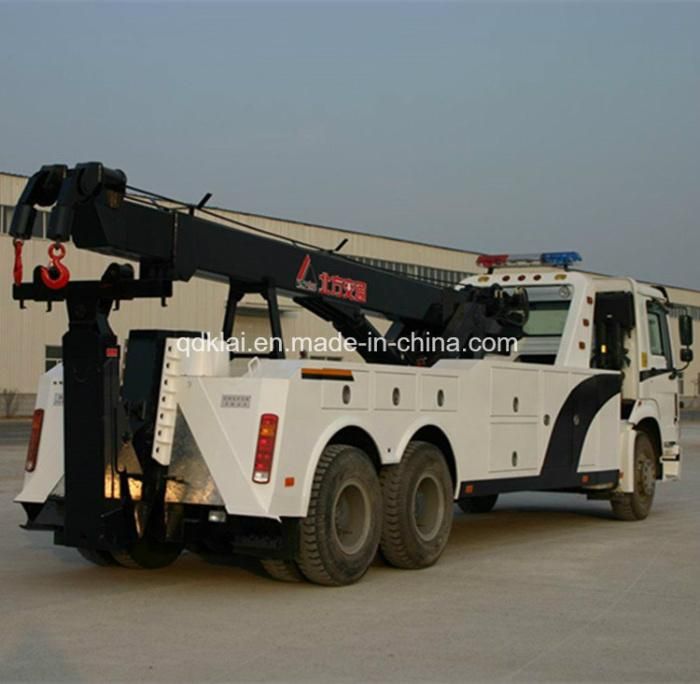

China Brand New HOWO Emergency Towing Truck Road Wrecker Truck
Qingdao Seize The Future Automobile Sales Co., Ltd.- Certification:ISO9000
- Emission Standard:Euro 2
- Transmission Type:Manual
- Towing Tonnage:60T
- Fuel:Diesel
- Bearing Capacity:Medium
Base Info
- Model NO.:ZZ1257M5847W
- Brand:HOWO
- Condition:New
- Chassis Brand:Sinotruk HOWO
- Engine Brand:Wd615
- Transmission:Hw19710
- Tire:Radial, Tubeless
- Color:Optional
- Transport Package:Nude Packing
- Specification:CCC
- Trademark:HOWO
- Origin:China(Mainland)
- HS Code:123
- Production Capacity:60000PCS,Year
Description
ItemsUnit Value Lifting Structure Lifting weight kg 7500 Max. Lifting weight kg 12435 Max. Lifting weight of original place g 14000 Max. Lifting weight of full extension boom kg 4000 Rated towing weight kg 32000 Max. Designed towing weight kg 60000 Effective length of boom mm 3415 Extension traveling of boom mm 1700 Folding angle of boom ° 90 Under lift Structure Max. Rated hanging weight kg 14000 The height from hook to the ground mm 9430 Extension traveling of lifting boom mm 3045 Turning angle ° 360 Numbers of winch piece 2 Rated pulling power of winch kg 10000×2 Dia. Of steel cable mm 18 Length of steel cable m 40 Min. Speed of steel cable m/min 7 Rotation angle ° 54 Vehicle
Parameters External dimension mm 10410×2500×3185 Chassis model ZZ1257M5847C Drive 6×4 Axle base mm 5825+1350 The whole weight of empty load kg 19435 Load of front axle of empty load kg 7205 Load of rear axle of empty load kg 12230 The whole weight of full load kg 32000 Load of front axle of full load kg 7000 Load of rear axle of full load kg 25000= Wheel base (front/rear axle) mm 2022/1830 Front suspension mm 1500 Rear suspension mm 1205 Approach angle º 16 Departure angle º 23 Min. Ground clearance mm 260 Min. Turning diameter m ≤24 Grade ability % ≥30 Max. Speed km/h 90 Engine model - WD615.93E Engine emission L 9.726 Rated power kw/r/min 247/2200 Max. Torque n@m/r/min 1350/1100~1600 Fuel type
DieselStandard of emission EN III Tire size 11.00-20,11.00R20
12.00-20,12.00R20 Persons 2 Optional Engine Engine model WD615.92 Rated power 196 Engine emission 9726 Engine model WD615.92E Rated power 196 Engine emission 9726 Engine model WD615.93 Rated power 213 Engine emission 9726 Engine model WD615.92C Rated power 198 Engine emission 9726
Parameters
Diesel
12.00-20,12.00R20
