• Model NO.：CA5256GJB
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Volume：6,8,9,10,12 CBM

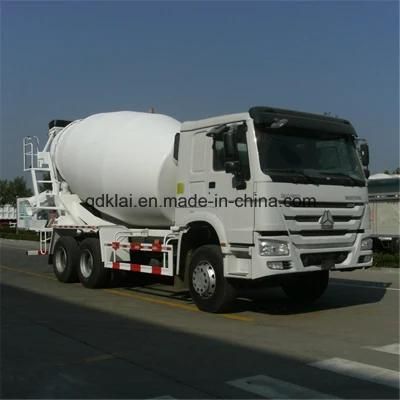

• Type：Concrete Mixer Truck
• Steering：LHD,RHD
• Driving type：6X4
• Color：WHITE,RED,BLUE
• Motors：Italy
• Pump：Italy
• Transport Package：Nude
• Specification：CCC
• Trademark：FAW
• Origin：China
• HS Code：8705909990
• Production Capacity：100PCS,Month

Main technical parametersItemModel8m39m310m312m3Mixing DrumGeometrical area(m3)13.9415.1817.920.5Effective Mixing Volume(m3)9101214Mixing Capacity(m3)5555Drum Inner Max Diameter(mm)2300230024002400Drum Length(mm)4750503954746069Angle of Inclination13131210.8Mixing speed(r/min)0-140-140-140-14Slump(mm)40-21040-21040-21040-210Hydraulic systemOil pump type/Max working pressureREXROTH/EATON/SAUERREXROTH/EATON/SAUERREXROTH/EATON/SAUERREXROTH/EATON/SAUER42*9042*9042*9041.5*105.5Motor type/Max working pressureREXROTH/EATON/SAUERREXROTH/EATON/SAUERREXROTH/EATON/SAUERREXROTH/EATON/SAUER42*8042*8042*8041.5*105.5Gear Reducer type/Max working torque/speed ratioPMP/SAUER/TOP/BONFIGLIOLIPMP/SAUER/TOP/BONFIGLIOLIPMP/SAUER/TOP/BONFIGLIOLIPMP/SAUER/TOP/BONFIGLIOLI60000/99.960000/102.865000/120.375000/129.94Oil cooler type/VolumeFLJ-9X YLF-201AFLJ-9X YLF-201AFLJ-9X YLF-201AFLJ-9X YLF-201A18181818Water supply systemWater supply ModeCompressed Air ModeCompressed Air ModeCompressed Air ModeCompressed Air ModeWater Tank Capacity(L)450450450450Truck parametersLxWxH(mm)9135*2490*38109135*2490*38109810*2500*39859810*2500*3985Total Weight(kg)25000250002500025000Device Weight(kg)13170131701370013700Axle Load(kg)7000/180007000/180007000/180007000/18000Wheel Base(mm)3800+13503800+13503800+13504000+1400Wheel Base(Front/Back)(mm)1939   1850/18501939   1850/18502036   1850/18502036   1850/1850Max Running Speed(km/h)77777777
all types trucks, semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect

1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
