• Model NO.：5tons refrigerated truck
• Bearing Capacity：Medium
• Car Type：Van
• Condition：New
• Product Name：Cooling Van 4X2 5tons Refrigerated Truck
• Freezer Brand：Thermo King, Hanxue, Korea Brand etc
• Loading Capacity：3 Tons, 4 Tons, 5 Tons 6tons 8tons 10tons 12tons
• Material Type：8cm Middle Polyfoam Insulation
• Body Material：Strong Fiberglass Inner and Outer Wall
• Truck Brand：Dongfeng FAW Foton Sinotruk JAC Isuzu
• Truck Drive Wheel：4*2 4*4 6*2 6*4 6*6 8*4 8*6 8*8
• Emission Standardruck：Euro II
• Certifications：ISO9001 CCC ASME
• Applications：Freezer Food, Fruit, Beer, Fish, Vege
• Transport Package：Nake Package RO-RO Ship Container Ship
• Specification：11980*2600*3620mm
• Trademark：Chusheng
• Origin：China
• HS Code：8705909990
• Production Capacity：366660

Basic Info.

Model NO. 5tons refrigerated truck Bearing Capacity Medium Car Type Van Condition New Product Name Cooling Van 4X2 5tons Refrigerated Truck Freezer Brand Thermo King, Hanxue, Korea Brand etc Loading Capacity 3 Tons, 4 Tons, 5 Tons 6tons 8tons 10tons 12tons Material Type 8cm Middle Polyfoam Insulation Body Material Strong Fiberglass Inner and Outer Wall Truck Brand Dongfeng FAW Foton Sinotruk JAC Isuzu Truck Drive Wheel 4*2 4*4 6*2 6*4 6*6 8*4 8*6 8*8 Emission Standardruck Euro II Certifications ISO9001 CCC ASME Applications Freezer Food, Fruit, Beer, Fish, Vege Transport Package Nake Package RO-RO Ship Container Ship Specification 11980*2600*3620mm Trademark Chusheng Origin China HS Code 8705909990 Production Capacity 366660

Product Description

Cold Chain Logistics Transport cooling van 4x2 5tons refrigerated truck for hot sale in Philippines Vietnam

Refrigerator truck:
Refrigerated truck is a full sealed van used to transport the frozen food or fresh goods, and is also kind of special transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.
Transportation category:
Refrigerator truck is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug etc.
Construction:
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.
For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.
Refrigeration unit classification:
non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using external refrigerator,
for a few mini refrigerated truck,using internal refrigerator.
Choice for insulated body:
good thermal insulation property,light weight,not easy to be damaged.
Vehicle classification:
According to the different chassis model, we have minitype,middle-sized,large-scale etc refrigerator trucks for your choise with different brands.
Vehicle steering direction:
RHD or LHD is available.



Technical Parameters of Sinotruk Howo refrigerated truck with cold room

Item No.	Parameters
Overall Dimension	8995×2440×3550 (mm)
Gross Vehicle Weight	15995 kg
Curb Weight	5995 kg
Loading Weight	10,000 Kg
Wheel Base	5200 mm
Front/rear Tread	1240/2555mm
Approach/Departure Angle	17/20 degree
Front Axle	5355 kg
Rear Axle	10640 kg
Engine	4110 Yucai engine
Engine horsepower	160 HP EURO II
Max Driving Speed	95 km/h
Cabin	3 Passenger allowed
Tire	9.00R20 (6 pieces)
Van Box Size	6800×2300×2300
Tank Material	Strong Fiberglass Inner and Outer Wall, with 80mm Middle Polyfoam Insulation.
Refrigerator	High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 10 centi-degree

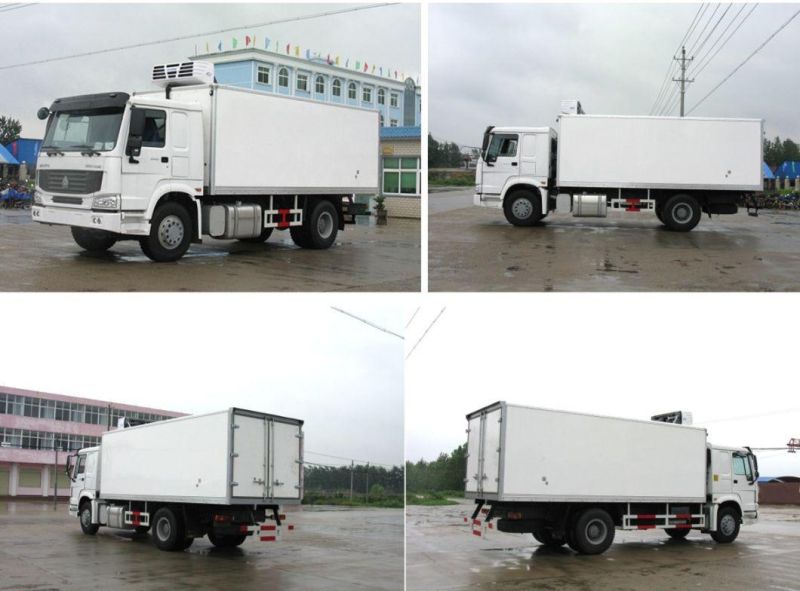

Detailed pics for HOWO refrigerated truck from different angle




Advantages of Insulated Freezer Van body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

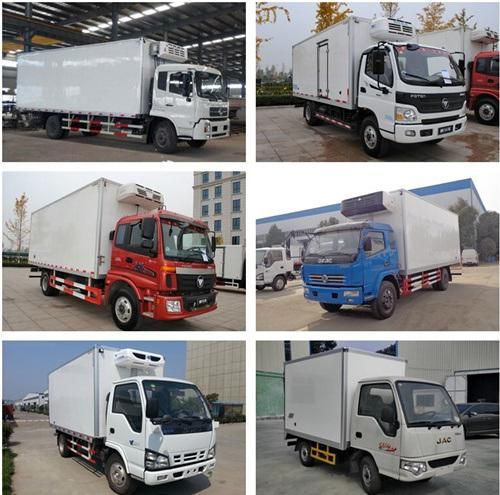

Different Payload refrigerated van truck we can produce:

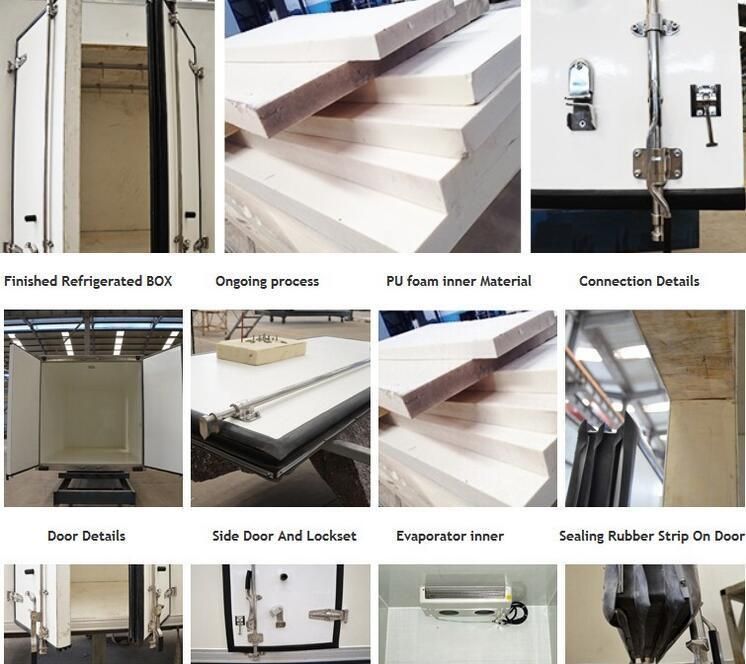

Cooling Van Box details


Customer reference
