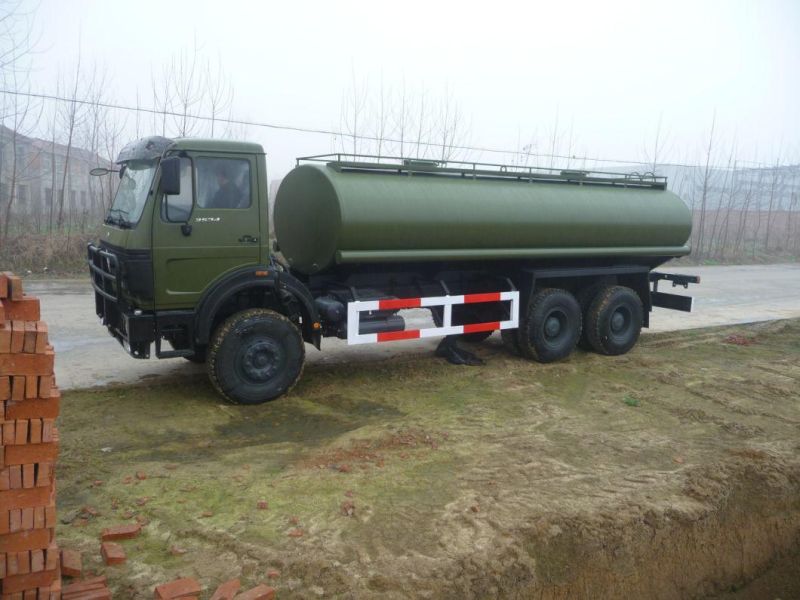

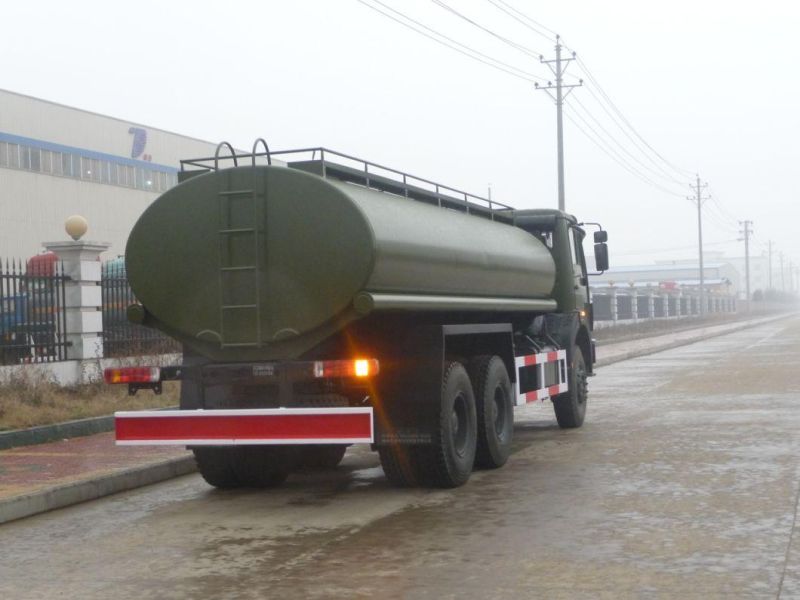

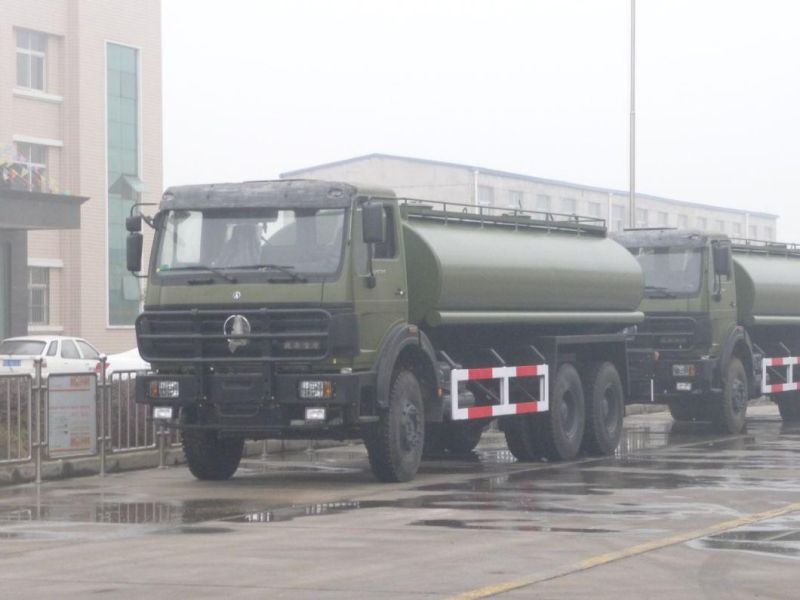

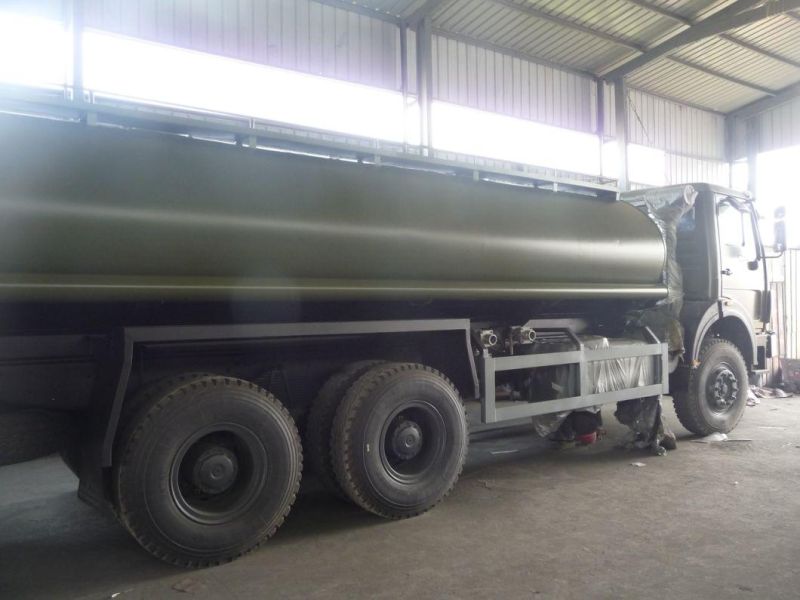

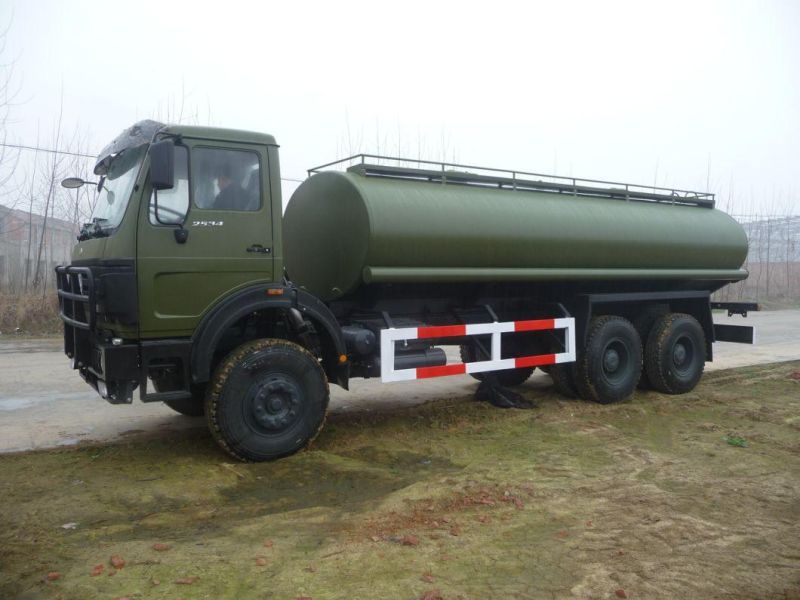

North Benz 20cbm Water Tanker Truck (Beiben 2534 Off road 6X6 All Wheel Drive 18m3)
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- Warranty:24
- Volume:10001 - 15000L
Base Info
- Model NO.:2534
- Certification:ISO9000, CCC
- Emission Standard:Euro 3
- Sprinkling Area:12 - 16m
- Transmission Type:Manual
- Payload:20T
- Fuel:Diesel
- Drive Wheel:6×6
- Engine Capacity:>8L
- Condition:New
- Tire:12.00-20, 12.00r20, 12.00r24
- Alxes:Mercedes Benz Technology
- Engine:Weichai, Hino
- Steering System:Zf8098
- transmission:9js or 12js200t, 9~12-Speed, Single, Dry
- Emission Standards:Euro 2, Euro 3, Euro 5-6
- Transport Package:Nil
- Specification:military standard.
- Trademark:BEIBEN
- Origin:China
- HS Code:8705909990
- Production Capacity:10000
- Package size per unit product:9500.00cm * 255.00cm * 360.00cm
- Gross weight per unit product:12000.000kg
Description
Overview
North Benz 18000-20000L water tank truck(6*4 /6x6,336hp) Emission Standard EUR 3 Model Name TIC5251GSSND Chassis factory code 2534 Driving Type 6×4 Dimensions Wheelbase(mm) 5050+1450 4500+1450 Overall Dimension(mm) 9450*2500*3050 Loading box size(mm) 6780*2300*1500 Weights GVW(kg) 25000 Payload weight(kg) 25000-30000kg Curb weight(kg) 11735 Front axle load(T) 7 Ton Rear axle load(T) 16Ton (16Ton with 2 axle combined) Front axle span(mm) 1,940 Rear axle span(mm) 1847/1847 Front/rear overhang(mm) 1410/2190 Approach angle(°) 12 Departure angle(°) 13 Calculated Performance Max speed(km/h) 110 Grade ability % 60 Min. Turning radius(m) 7.5 Engine Engine model WP10.336 Engine type 4 stroke water-cooled,overhead camshaft,direct injection, turbo
charge,Intercooling engine No. of cylinders straight-six cylinders Displacement(L) 11.596L Max.output/rated speed 247kw(336hp)/1900rpm Max.torque/speed Drive Line Cluth description Dry single plate, hydraulic control booster,mechnical operation Transmission Brand:FAST FULLER, Model:RT11509C
9 forwarder,1 reverse gear,synchronous meshing
Manual operation Braking system Service brake Brake gap can be adjusted automatically

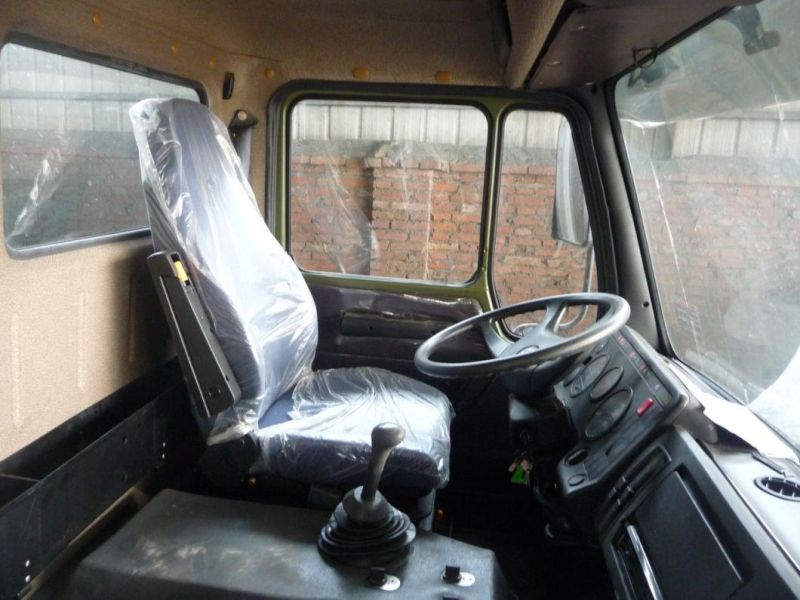

double circulation air brake system Assistant brake WEVB(Engine exhaust brake) Park brake Spring brake effect to middle and rear tires Suspension system Front Axle Semi-elliptic leaf springs shock absorbers Rear Axle Torsion bar semi-elliptic leaf springs Electrical Equipment Voltage 24V Batteries 2X12V/120Ah Tanker body Tanker body size(mm) 6780*2300*1500 (Tank capacity: 18000-20000L) Tire specification Tire specification 12.00-20 standard tire,10 tires Cab description 1. Full steel skeleton structure cab
2. The cab can turn over 70 degree
3. One sleeper bed in the cab,with Air-conditioner
4.Air- damping driver s seat,with fairwater cone
5. CD player AM/FM radio, Power steering
6. Front air suspension Special function of water tank truck Sprinkling Area(m) ≥20m Suction lift(m) ≥7m Water cannon Water cannon installed on the rear of the truck,with operation plateform,
It can be used to clean road,trees,also for emergency fire fighting.
Water cannon range:≥60m,it can rotation with 360°degree freely Manhole Man way acces hole on top of tank; 2 units 00mm manhole Front spray fuction Front spray bar with fan sprayer on both sides,spray range: ≥20m Man walk way With skid resistance man walk way on top of tank Horse reels Two 75 ft hose reels at each side of the truck Water pump Water pump flow rate(L/m): 1000L/m
Head of delivery(m): 60m
Suction height (m): 22.5m
Efficiency(%):95% 6x6 off road tanker2527A/6*6/4450+1450/WP10.270N/199 9T-160 TAS85 12.00-20 12.00R20 11.00-20 11.00R20 2527A/6*6/5050+1450/ WP10.270N/199 9T-160 TAS85 12.00-20 12.00R20 2530A/6*6/5050+1450/ WP10.300N/221 9T-160 11.00-20 11.00R20 2534A/6*6/5050+1450/ WP10.336/247 9T-160 TAS85 12.00-20 12.00R20 2538A/6*6/5050+1450/ WP10.375/276 RT11509C
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 25000L+ 5% expansion
Euro 3, 6*4ND1255B44 4450+1450 WP10.290 ND1252B44 WP10.336 6*4 ND1253B45J 4500+1350 WP7.270E30 8*4 ND13105D44J 1700+4425+1350 WP10.270 Euro 46*44450+1450 ND12500B44J WP10.300E40 9JS150A WP10.336E40 8*4 1950+3900+1450
1950+3700+1450 ND13101D39J WP10.336E40 12JS160T WP10.375E40 12JS200T 8*8 1500+4150+1450 ND2311G41J WP10.336E40 12JS160T 6*4 5050+1450 ND12500B51J6Z00 WP10.270E40 9JS135 WP10.300E40 9JS150A 6*4 4450+1450 ND12501B45J7 WP10.336E40 9JS150A 8*4 1950+3100+1450 ND13103D31J7 WP10.336E40 12JS160T WP12.375E40 12JS200T 8*4 1950+4600+1450
1950+4300+1450 ND13104D46J WP10.336E40 12JS160T WP12.375E40 12JS200T 6*4 3800+1450 ND12505B38J WP10.336E40 12JS160T WP12.375E40 12JS200T 6*6 3800+1450 ND2250F38J WP10.300E40 9JS150A WP10.336E40 9JS180 8*4 1950+2800+1450 ND13103D28J WP10.336E40 12JS160T WP12.375E40 12JS200T 8*4 1950+2800+1450 ND13101D28J7 WP10.336E40 12JS160T WP12.375E40 12JS200T 6*4 5050+1450 ND12500B51J WP10.336E40 9JS150A WP12.375E40 9JS180 8*4 3800+1450 ND12505B38J7 WP10.336E40 12JS160T WP12.375E40 12JS200T 8*4 1500+4750+1450 ND13109D47J WP10.300E40 12JS160T WP10.336E40 12JS160T WP12.375E40 12JS200T 8*4 1950+3100+1450 ND13101D31J WP10.336E40 12JS160T WP12.375E40 12JS200T Our beiben water tanker trucks feature:
* Three patented items: Design patent, sde washing road device for vehicle and pneumatic pipe clean device.
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional .
Best design for beiben 4*2 water truck and beiben 6*4 water truck.
2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms?TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
charge,Intercooling engine
9 forwarder,1 reverse gear,synchronous meshing
Manual operation
double circulation air brake system
2. The cab can turn over 70 degree
3. One sleeper bed in the cab,with Air-conditioner
4.Air- damping driver s seat,with fairwater cone
5. CD player AM/FM radio, Power steering
6. Front air suspension
It can be used to clean road,trees,also for emergency fire fighting.
Water cannon range:≥60m,it can rotation with 360°degree freely
Head of delivery(m): 60m
Suction height (m): 22.5m
Efficiency(%):95%
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 25000L+ 5% expansion
Euro 3, 6*4
1950+3700+1450
1950+4300+1450
* Three patented items: Design patent, sde washing road device for vehicle and pneumatic pipe clean device.
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional .
Best design for beiben 4*2 water truck and beiben 6*4 water truck.

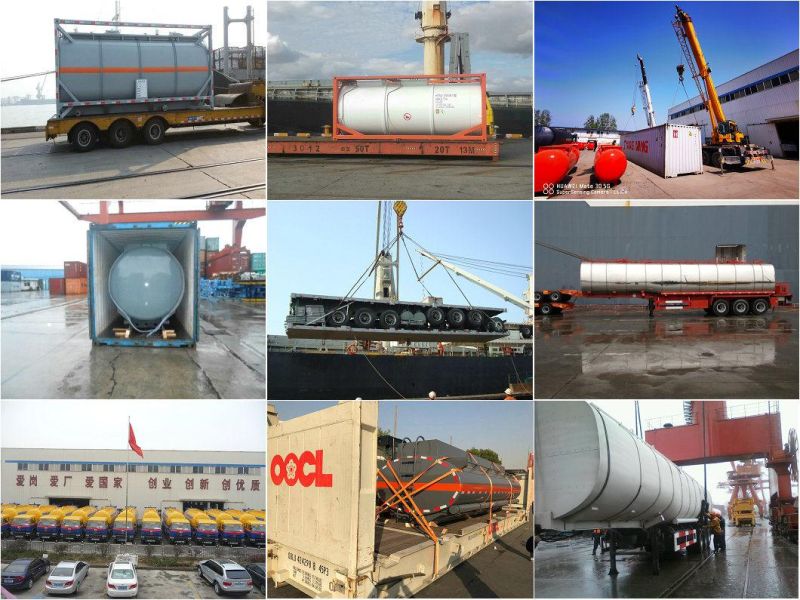

CertificationsPackaging & ShippingFAQ
