• Model NO.：HOWO Vacuum tanker
• Fuel：Diesel
• Tank Volume：1500~22000L
• Drive Wheel：4x2
• Hoesrpower：251-350hp
• Condition：New
• Tire：11.00-20, Total 10 Tires
• Alxes：Sino Truck Technology
• Engine：Wd615
• Emission Standards：Euro 2, Euro 3, Euro 6
• Driving Type：LHD ,Rhd Optional
• Wheelbase (mm)：4800
• Transport Package：Nil
• Specification：Customizing
• Trademark：HOWO
• Origin：China
• HS Code：8705909990
• Production Capacity：10000

Overview TANK BODYTankCapacity3~5CBMDimension2100*1400mm(Length*Diameter)MaterialQ235 high tension steelThickness4mmPUMPVacuum Suction PumpModelSK-6Vertical Suction Range9~10MFlow Rate1.5m³/minRubber tube7MAdequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance



Equipment tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 5-8 meter, equipped with special sewage suction pipe;



Vehicle Main Dimensions(L x W x H)mm8600x2500x3200 Wheel base (mm)4600Wheel track (front/rear) (mm)2022/1830Approach/Departure angle(°)16/14Weight in KGSTare Weight10150Loading Capacity13000Front axles loading capacity(HF7 drum)1x7000Rear axles loading capacity(ST16)2x16000Max. driving speed(km/h)90EngineBrandSINOTRUKModelWD615.87Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)290HPEmission standardEuroGearboxHW15710, 10 forwards & 2 reverseSteering GearZF8098,power steering, hydraulic steering with power assistanceFuel tank (L)400LTire12.00 R20 all steel radial tire , 11 piecesBrakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Tank Body

Sewage body capacity10m³Tanker Body Material6mm steel / Q235 high tensile strength steelEnd plate6mm steel sheet/Q235 high tensile strength steel



HOWO 15000 liters sewage suction tank truck
 Emission Standard<o:p>
 EUR 2<o:p>
 Driving Type <o:p>
 6×4<o:p>
 Sewage tank volume (L)<o:p>
 15000 liters<o:p>
 Dimensions<o:p>
 Wheelbase(mm)<o:p>
 4325+1350<o:p>
 Overall Dimension(mm)<o:p>
 8400×2480×3460<o:p>
 Weight parameters<o:p>
 GVW(kg)<o:p>
 25000<o:p>
 Rated Payload (kg)<o:p>
 13350<o:p>
 Curb weight(kg)<o:p>
 11650<o:p>
 Front axle load(T)<o:p>
7 Ton front axle load capacity<o:p>
 Rear axle load(T)<o:p>
Styre 16x2 Ton rear axle load capacity<o:p>
 Front axle span(mm)<o:p>
 1939<o:p>
 Rear axle span(mm)<o:p>
 1800/1800<o:p>
Front/rear overhang(mm)<o:p>
 1560/2133<o:p>
 Max speed(km/h)<o:p>
 90<o:p>
 Engine performance<o:p>
 Engine model<o:p>
 WD615 series<o:p>
 Engine manufacture<o:p>
 CNHTC<o:p>
 Engine type<o:p>
Straight in-line,6 cylinders,water-cooling,direct injection<o:p>
With exhaust braking Charge inter-cooling(after-cooling)<o:p>
 Displacement(L)<o:p>
 9.726L<o:p>
 Max. output(kw/Hp)<o:p>
 196kw/266hp<o:p>
 Drive line system<o:p>
 Clutch<o:p>
GF420J styre technology, Dry-type single shock spring clutch<o:p>
 Transmission<o:p>
 9 forwarder,1 reverse gear, Mechanical control, manual operation<o:p>
 Spring suspension type-Leaf spring mechanical suspension<o:p>
 No. of leaf of spring<o:p>
 6/10/12+1<o:p>
 Brake system<o:p>
 Service braking<o:p>
Pneumatic braking system<o:p>
 Parking braking<o:p>
Spring brake, acting on the front and rear axle, emergency braking<o:p>
 Cab description<o:p>
Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable<o:p>
Forwardly, all metal enclosed cab.<o:p>
Tire specification<o:p>
 Tire specification<o:p>
 11.00-20,total 10 tires<o:p>
Sewage suction tanker system description<o:p>
 Suction pump<o:p>
Vacuum sewage suction pump<o:p>
 Vacuum degree (kpa)<o:p>
90Kpa<o:p>
 Pump type<o:p>
vacuum pump model:50QZXDG-30/40<o:p>
 Rated speed (R/min)<o:p>
500r/min<o:p>
 Pump speed (L/s)<o:p>
318m3/h<o:p>
 Suction range (m)<o:p>
»8m<o:p>
 Lift angle of tank (°)<o:p>
30°<o:p>
 Tank material<o:p>
Q235A<o:p>
 Full suction time (m)<o:p>
About 6 minutes<o:p>
 Absolute working pressure (Mpa)<o:p>
10Mpa<o:p>
 Inlet /outlet hole diameter (mm)<o:p>
DN100Certifications

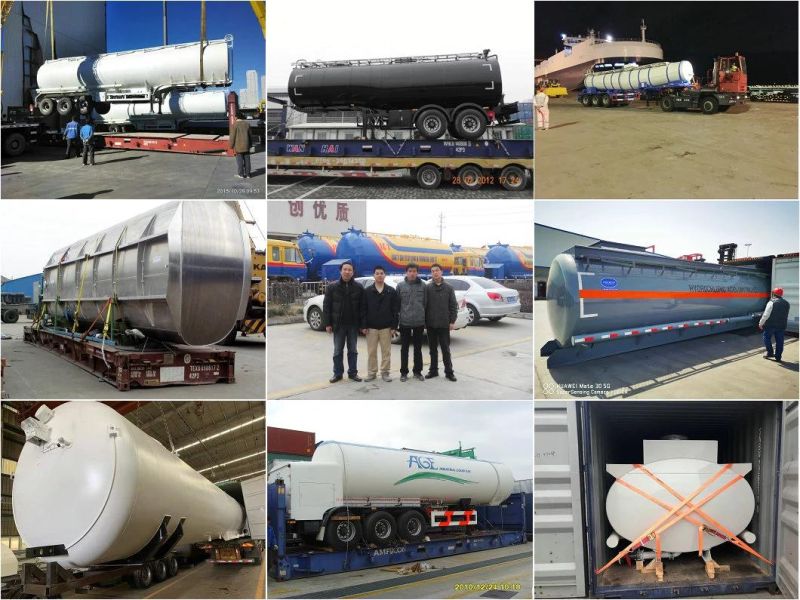

Packaging & Shipping

FAQ

1.Are you trading company or manufacturer ?

We are Group Corporation manufacturer ,have Group Factories Contractor.

2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
 4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
 6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.

8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?

Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
