Specialized Vehicle

Home > Product > Refrigerated Truck

Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Warranty：One Year
  • Certification：ISO9000, CCC, CE
  • Payload：5ton
  • Emission Standard：Euro 4
  • Transmission Type：Manual
  • Horsepower：＜150hp

Base Info

  • Model NO.：CLW5061HUM
  • Fuel：Diesel
  • Bearing Capacity：Medium
  • Car Type：Van
  • Condition：New
  • Gearbox：5 Forward & 1 Reverse
  • Material：Fiberglass
  • Insulating Layer：8cm Polyurethane Foam
  • Truck Refrigeration Unit：Thermoking, Carrier or Chinese Alternative
  • Applicable Temperature：-18~0 Degree
  • Logo：as Per Customer′s Request
  • Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
  • Refrigerator Box Size：4095*1900*1800mm
  • Box Material：Fiberglass
  • Delivery Time：25 Days
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：5995*2130*2960mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension6000×2500×3300(mm)Gross Vehicle Weight9000(Kg)Curb Weight3900(Kg)Loading Weight5000(Kg)Chassis SpecificationChassis parametersChassis BrandISUZUCabinSingle, Left Hand Driving, with A/C4KH1-TCG4O, 4 CylindersPower88KW/120HPEmission standardEURO IVDisplacement2.999LFuel typeDieselGearboxMSB, 5 Forward & 1 Reverse GearFront and Rear Axle load2.5T/4.8TWheel base3360(mm)Overhang( Front/Rear)1130/1505(mm)Angle(Approach/departure)20/16(°)Brake SystemOil brakeSteering GearPower AssistantTire650-16, 6 Pieces with 1 Spare TireMaximum speed105(km/h)SuperstructureVanBox size4100×2300×2100(mm)MaterialFiberglassInsulating Layer8cm Polyurethane Foam BrandTHERMOKINGTruck refrigeration unitModelKV300 Applicable temperature (ºC)-18~0RemarksPart Optional: Ventilation slot
Hook
External power supply
Side door

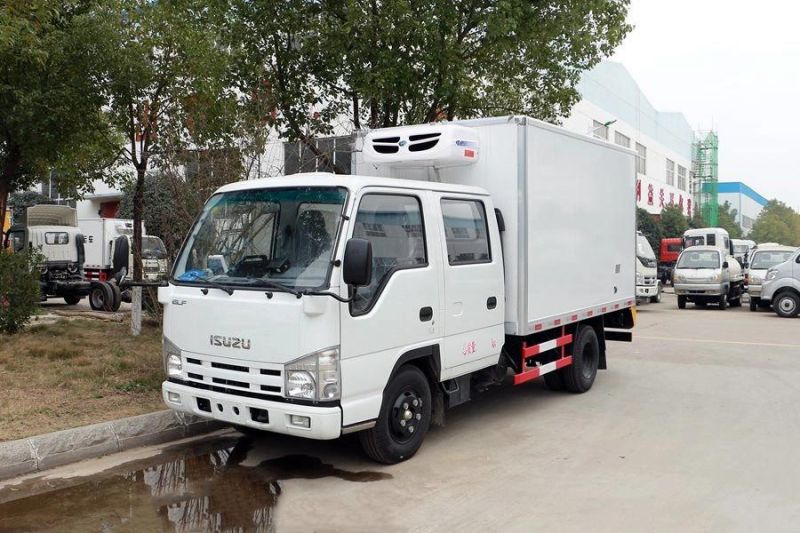

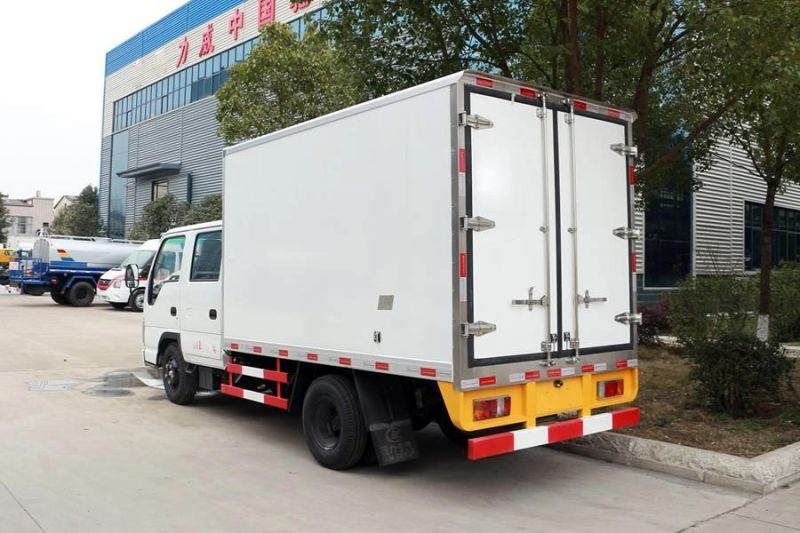

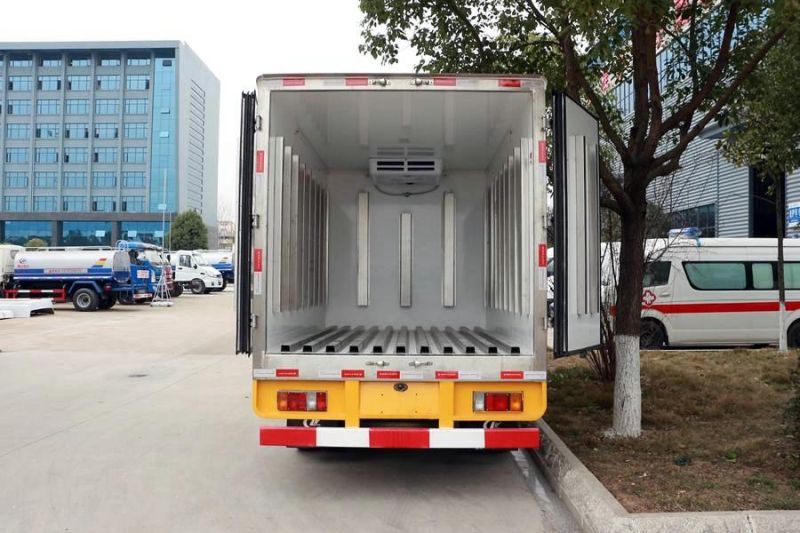

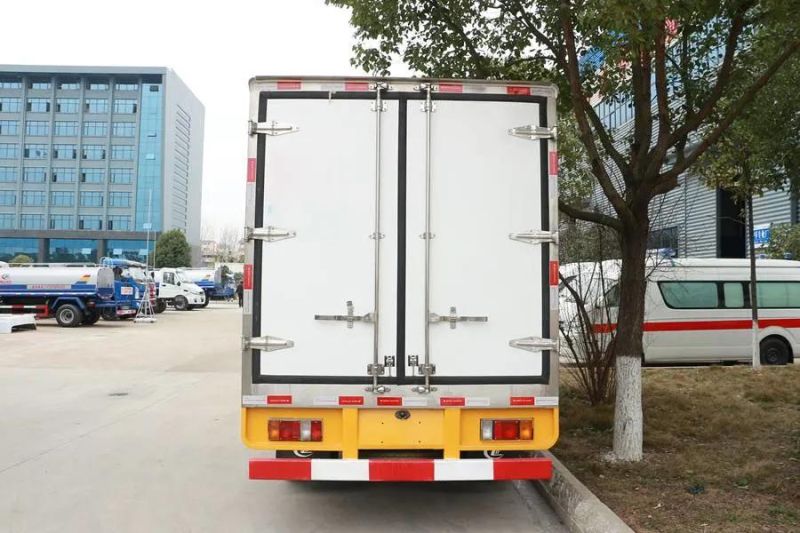

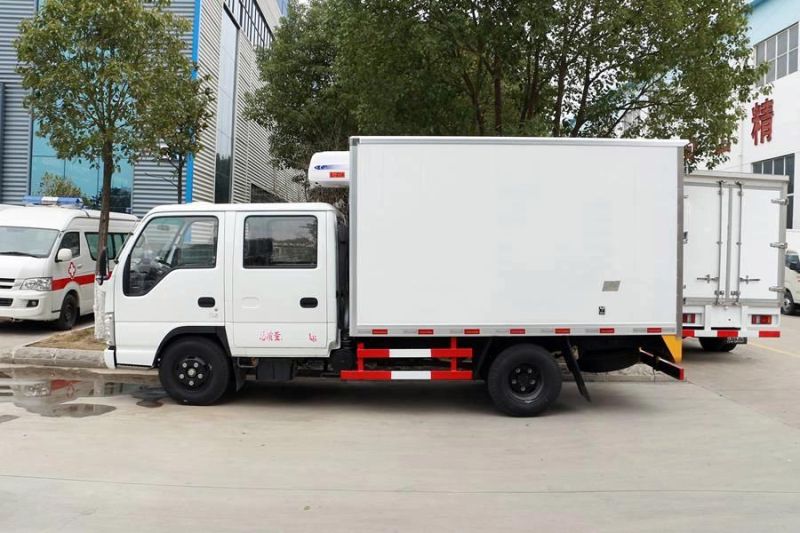

Truck Details
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck



Japanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box TruckJapanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box TruckJapanese Brand Isuzu 4X2 Diesel Engine Refrigerated Teuck Optional Refrigerated Temperature 4m Length Length Van Cooling Box Truck
