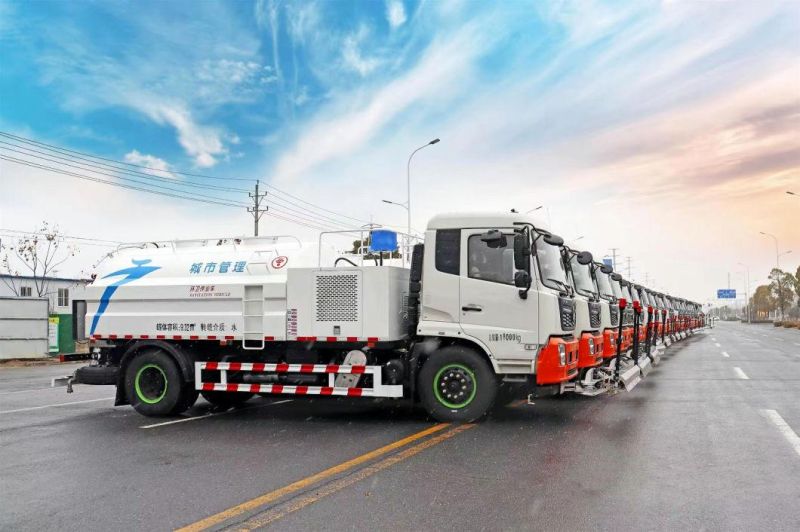

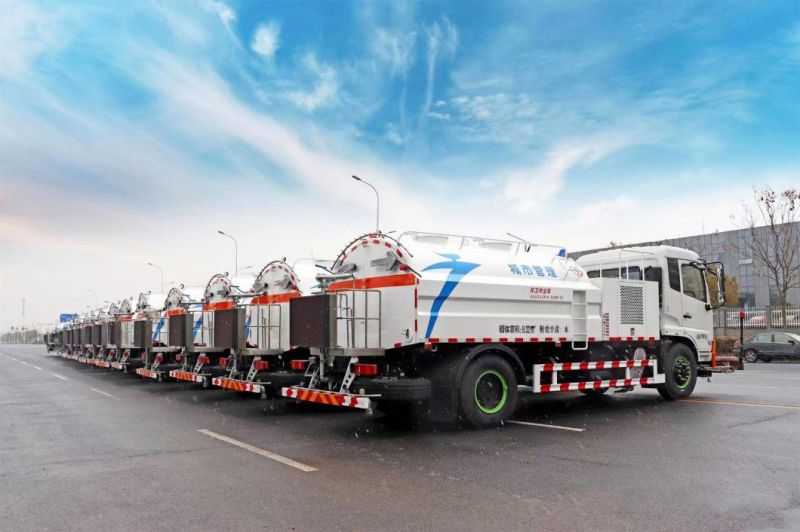

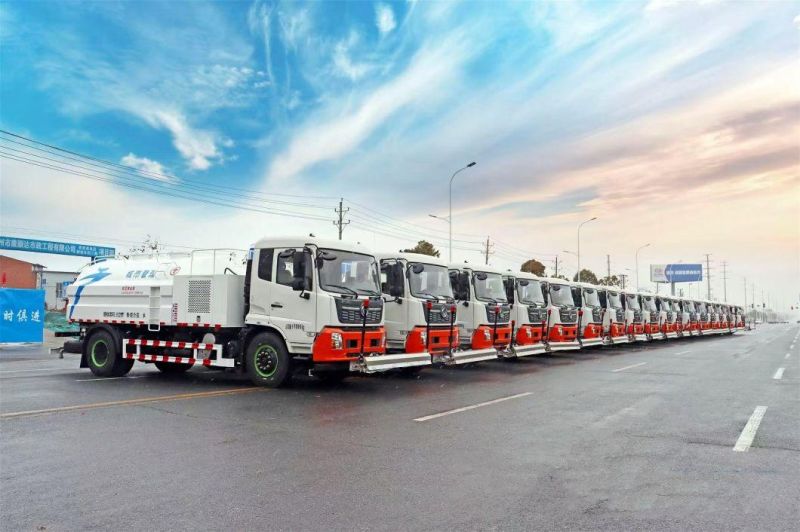

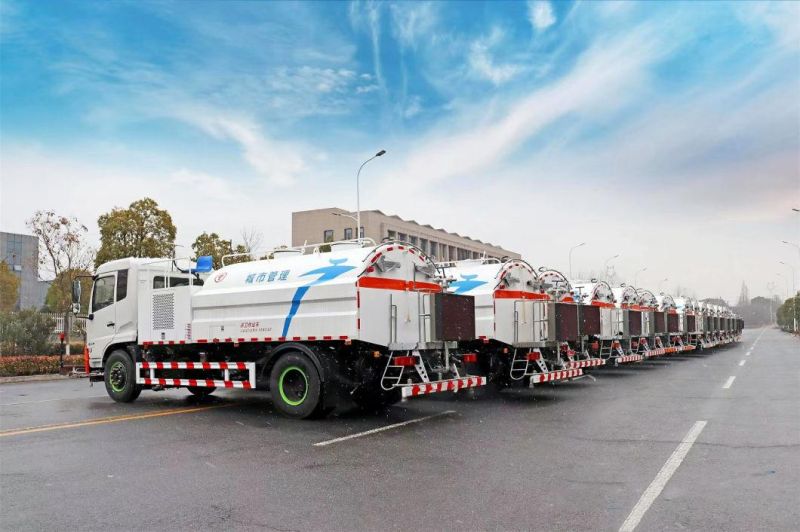

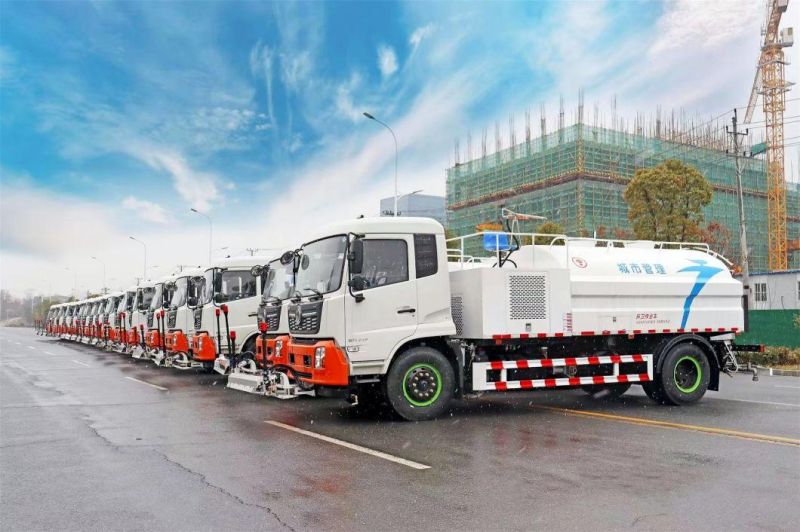

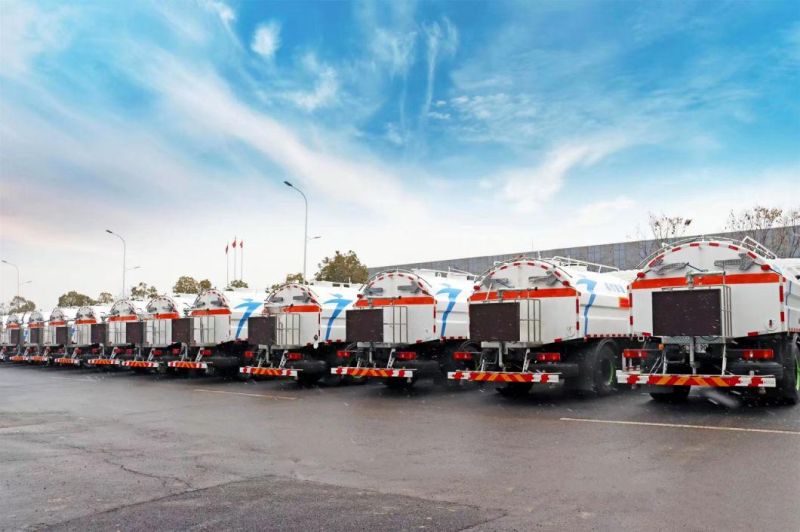

Dongfeng 4X2 Water Tank Truck Road Cleaning Truck 12cbm 12m3 15000L Spraying Vehicle Road Sprinkler Water Barrow Water Trucks
HUBEI RUILI AUTOMOBILE CO., LTD.- Warranty：One Year
- Volume：10001 - 15000L
- Certification：ISO9000, CCC, CE
- Emission Standard：Euro V
- Sprinkling Area：12 - 16m
- Transmission Type：Manual
Base Info
- Model NO.：CLW5156
- Payload：10-15ton
- Fuel：Diesel
- Drive Wheel：4×2
- Engine Capacity：＜4L
- Condition：New
- Tank Material：Carbon Steel or Stainless Steel
- Horsepower：170HP
- Color：Customized
- Water Sprinkle Width：14 M
- Cannon Range：28 M
- Gearbox：6forward & 1 Reverse
- Water Pump：China Famous Brand
- Tire：9.00r20
- Water Suction Height：7 M
- Tank Volume：3m3-35m3
- Chassis Brand：Dongfeng, Sinotruk, Foton, Isuzu, etc
- Curb Weight：6950kg
- Pump：Chinese Famous Brand
- Transport Package：Naked Packing, RO-RO, Bulk Ship
- Specification：8600*2500*3200mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500unit Per Month
Description

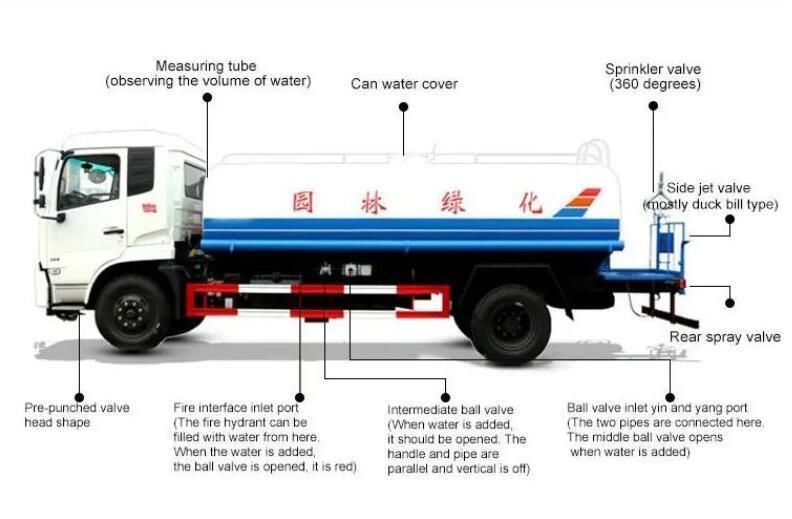

Chassis SpecificationItem No. Parameters Chassis Brand - Overall Dimension 8600×2500×3200mm Gross Vehicle Weight 15795kg Curb Weight 6950 kg Loading Weight 8650 Kg Wheel Base 4700 mm Cabin Row and half, Left Hand Driving Engine 170HP, EURO V Overhang( Front/Rear) 1140/1810(mm) Fuel type Diesel Axle load 3000/8000(kg) Angle(Approach/departure) 16/22(°) Transmission/Gearbox 6 Forward & 1 Reverse Gear Brake System Pneumatic Steering Gear Power Assistant Tire 9.00R20, 6 Pieces with 1 spare tire Maximum speed 90(km/h) Superstructure Water Tanker Tank Volume 12000 Liters / 12m3 Tank Material 5mm Q235B Carbon Steel Sprinkling System:

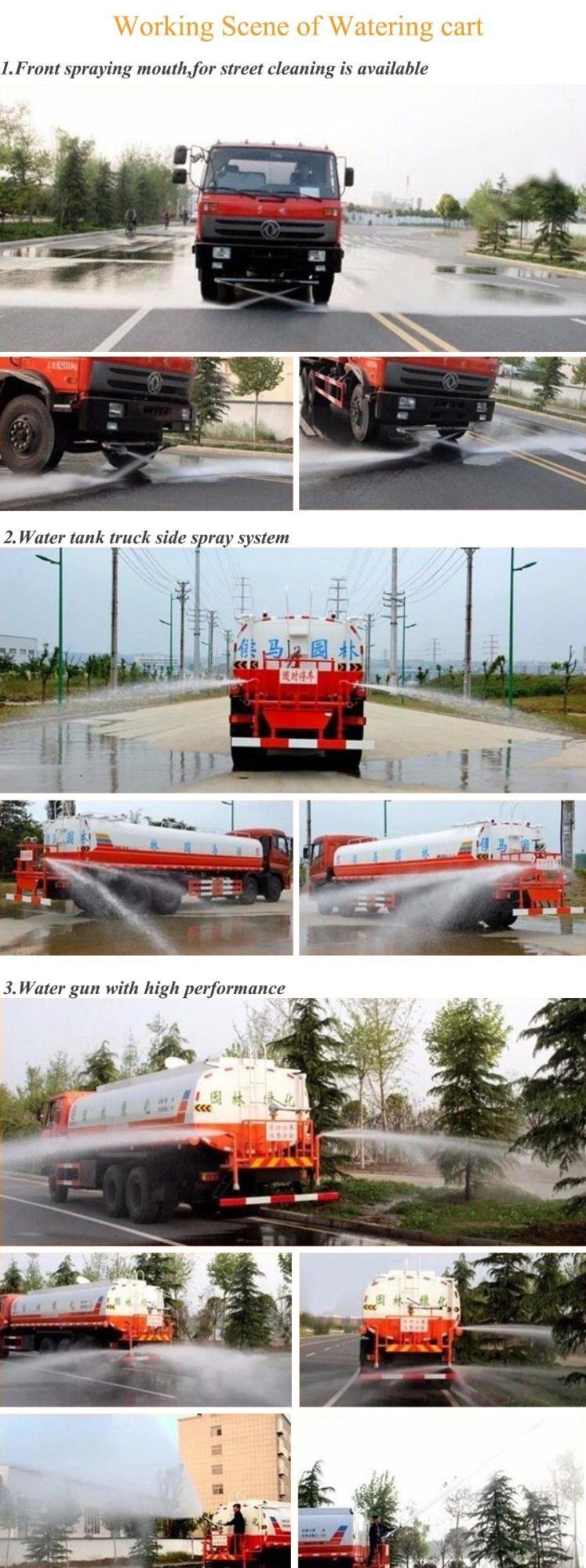

Suction height of Truck Pump >7m Full Tank Suction Time <15 minutes Sprinkling width of front/rear/side Sprinkler ≥14m Range of Water Cannon ≥28m Remarks Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs
