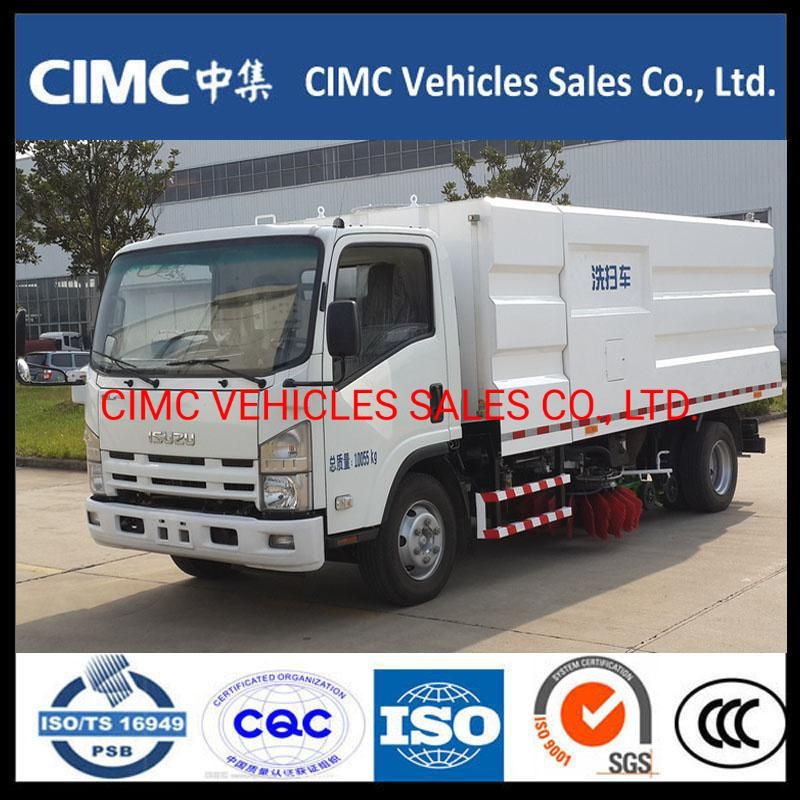

Isuzu Nqr Vacuum Cleaner Cleaning Sweeping Brushes Street Road Sweeper 6m3
CIMC VEHICLES SALES CO., LTD.- After-sales Service：All Genuine Parts Available
- Warranty：1 Year
- Type：Wet-type
- Certification：ISO9000, CCC, TS16949
- Transmission Type：Manual
- Emission Standard：Euro 4
Base Info
- Fuel：Diesel
- Payload：20T
- Use：Burnishing
- Cleaning Process：Cold Water Cleaning
- Condition：New
- Engine：Cummins
- Cylinder No.：4
- Transmission：Mld-6q
- Tire：8.25r20 14pr
- Wheelbase：4175mm
- Gvw：10055kg
- Water Tank Capacity：6.2m3
- Dust Box Capacity：3.4m3
- Sweep Width：3.1 M
- 4 Brushes：Yes
- Transport Package：Nude Packing
- Specification：ISO, TS16949, CCC
- Trademark：ISUZU
- Origin：China
- HS Code：8701909000
- Production Capacity：1000PCS,Month
Description
Discharge angle48° Auxiliary engine Model Qingling 4JB1-TCH(Euro3) Horsepower 68 kw/3000r/min Maximum Speed Limit for Hand Throttle 2000 r/min Drive clutch Automatic centrifugal clutch Fan Fan Special High Pressure Centrifugal Fan,Rated speed 2200r/min Drive type Narrow V-belt drive Hydraulic system Type Open type system, electro-hydraulic centralized control Main components Gear pumps, superposition valves, one-way valves, cycloidal motors, hydraulic cylinders, etc. Overflow pressure 14 MPa Hydraulic oil capacity 60 L Electrical system Type Logic programming, voice prompt, electro-hydraulic interlocking, etc. Chassis system pressure 24V Working device voltage 12V Battery model Cab & Chassis:12V-70A.H(2pcs)
Working device:6-QW-126min(550)(1pcs) High Pressure Waterway System High Pressure Water Pump Imported High Pressure Water Pump, PRATISSOLI Brand KEB36 Flow rate of High Pressure Water Pump 80 l/min Speed of High Pressure Water Pump 1150 r/min Water valve High Pressure Ball Valve Driven by Electric Push Rod Left and right spray rods Spray rods swing angle 65° Spray rods drive type Cylinder Push Number of nozzles 6 Water sprinkler system Water pump type Electric diaphragm pump Water pump pressure 0.45 MPa Water pump flow 5 L/min Cleaning device Brush type Between the front and rear axles of the chassis, Two vertical sweepers are arranged symmetrically on both sides of the frame, driven by a hydraulic motor, with the maximum diameter of the sweeper 900mm. Adjustment of Brush Speed Continuous adjustment,0 ~120 r/min. Sweeping Brush Inclination Adjustment Forerake 4°~6°,extrovert2°~4° Suction nozzle Suction nozzle type Double suction nozzle, middle wide suction nozzle, Inside is long row nozzle with 11 high pressure nozzles. The suction nozzle is controlled by cylinder. Four casters walk. Pipe diameter φ180mm Clearance between suction nozzle and ground at working 5~8mm
