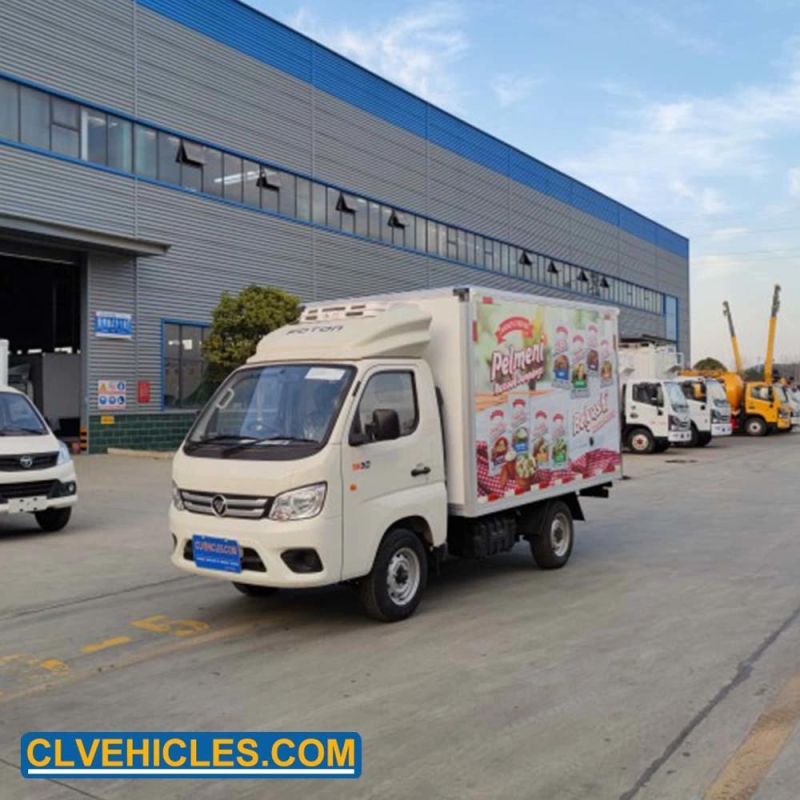

2-3 Ton Foton Freezer Lorry Van Truck Reefer Cooler Fridge Refrigerated Trcuk

Chengli Special Automobile Factory
  • After-sales Service：12 Months
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload：2t
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Horsepower：＜150hp

Base Info

  • Model NO.：CLW
  • Fuel：Diesel
  • Bearing Capacity：Small
  • Car Type：Van
  • Condition：New
  • Colour：White
  • Brand：Foton
  • Refrigeration Unit：Thermo King
  • Temperature：-15
  • Insulation Thickness：80mm
  • Length of Van Box：3200mm
  • Size：Small
  • Driving Type：Oil Brake
  • Van Box Material：Glass Fiber Reinforced Plastics
  • Model No.：Cl5071xlca5ka
  • Tire：7.00r16
  • Gear Box：5speed+1reverse
  • Engine：Foton
  • Capacity：2t
  • Function：Transport
  • Transport Package：Nude
  • Specification：4700*2160*2300
  • Trademark：CLW
  • Origin：China
  • HS Code：8701909000
  • Production Capacity：5000 Units One Month

Description


Model Name refrigerator truckDriving Type 4×2,left hand driveWeights  Rated payload weight(kg)6000-7000Curb weight(kg)35503750DimensionsWheelbase(mm)33603815Overall Dimension(mm)5995*1910*2790(single row)5995*1930*2870(double row)6500*2160*3100Box dimension (mm)4100*1740*1750(single row)3150*1750*1750(double row)4500*1900*1800     Max speed(km/h)110110Engine Engine model130HP Engine type4 stroke water-cooled, lectric control systemNo. of cylindersstraight-4 cylindersDisplacement(L)2.999LMax. output (kw)96kwEmissions standardEuro 3 Drive LineTransmission5 speed,5 forwards,1 reverse gear,manual operationBrakeair brakeCabcabinFOTONStandard configurationAir conditioner ,USB ,sound,electric windows,and so onAxleFront axle2 tonsRear axle3 tonsTire specificationTire specification7.00R16 standard tire,6 tires+1 spare tireSpecial function of refrigerator truckBox materialGlass reinforced plastic inside and outside,8cm polyurethane extruded Insulating layer.(if do the van truck,Box matrial:color plate)Ref.planhanyaTemperatureto (-18) degreeSpecial functionour refrigerator trucks,whose envelope adopt plastic composite plate structure.internal and external surface is made of galss reinforced plastc and between interal and external is polyurethane extruded Insulating layer.Four sides adopt glass reinforced plastc and polyurethane glue foam bonded together to from a closed section.
Envelopes are assembled together with strength adhesion and fatened By inner buried high-strengths screw.


Competitive Advantage
2-3 Ton Foton Freezer Lorry Van Truck Reefer Cooler Fridge Refrigerated Trcuk2-3 Ton Foton Freezer Lorry Van Truck Reefer Cooler Fridge Refrigerated Trcuk
2-3 Ton Foton Freezer Lorry Van Truck Reefer Cooler Fridge Refrigerated Trcuk

2-3 Ton Foton Freezer Lorry Van Truck Reefer Cooler Fridge Refrigerated Trcuk

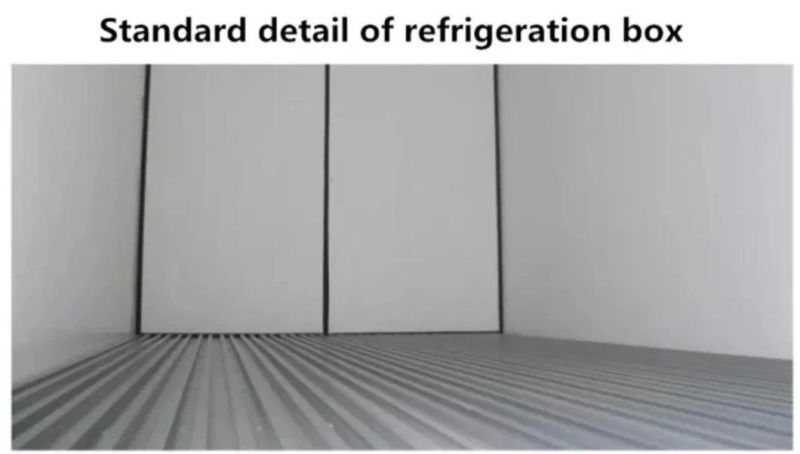

  1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
  2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

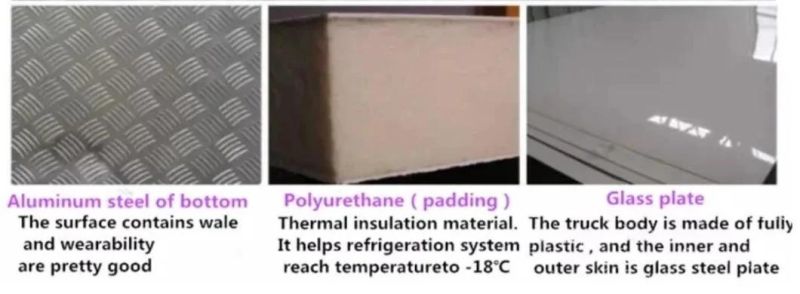

  3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane.
  4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
  5. Refrigeration unit: The well-known domestic brand of the refrigeration unit American Carrier or Thermoking overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees
