• Model NO.：CLW5020LJC
• Transmission Type：Manual
• Payload：20T
• Fuel：Diesel
• Drive Wheel：6×4
• Brand：Sinotruk HOWO
• Models：Large
• Usage：Arm Type
• Condition：New
• Chassis Brand：Dongfeng, HOWO, FAW, JAC, Foton, etc
• Engine：266HP
• Garbage Box Material：Carbon Steel
• Thickness of Box：4mm, 5mm
• Loading&Unloading：Hydraulic System
• Container Roll on Time：50-60s
• Container Roll off Time：40-50s
• Control System：Multi-Valve
• Color：as Per Customer′s Request
• Transport Package：Naked, RO-RO, Bulk, Container
• Specification：8145*2496*3386 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Truck Model

ZZ1257N3647B, Left hand drive/Right Hand Drive model

Truck Brand

SINOTRUK -HOWO

Dimension(Lx W xH)

9700x2470x2850

Cargo body size (L*W*H, mm)

5400x2300x1400

Container thickness(mm)

bottom:8mm, side:4mm

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

4350+1350

Max speed(km/h)

90

Curb weight(kg)

7900

Loading Weight(kg)

24500

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.62,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

240HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

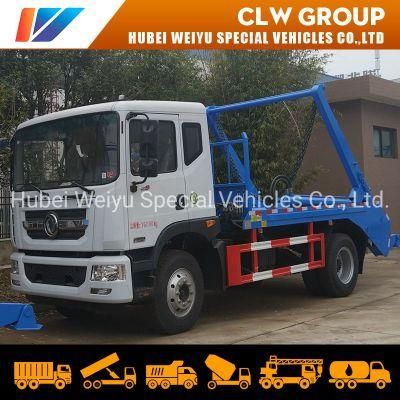

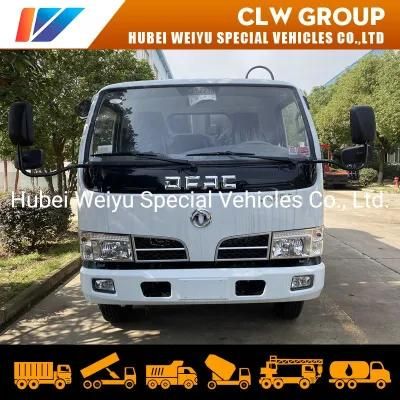

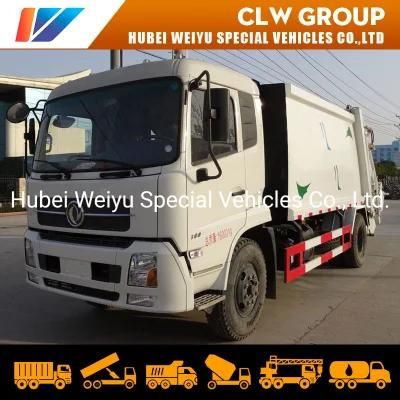

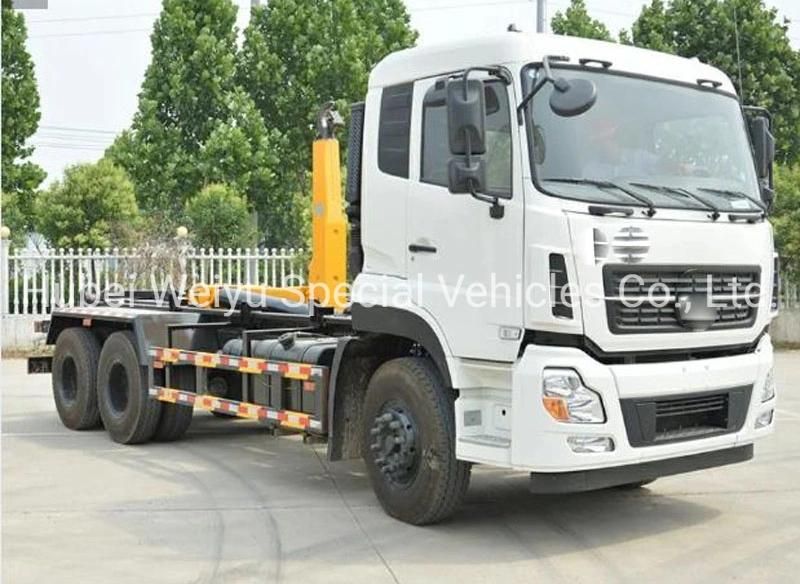

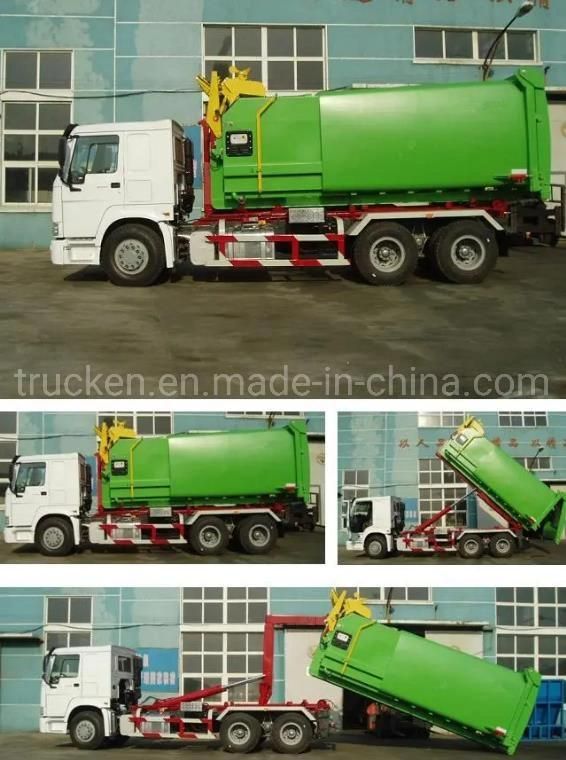

Product Show

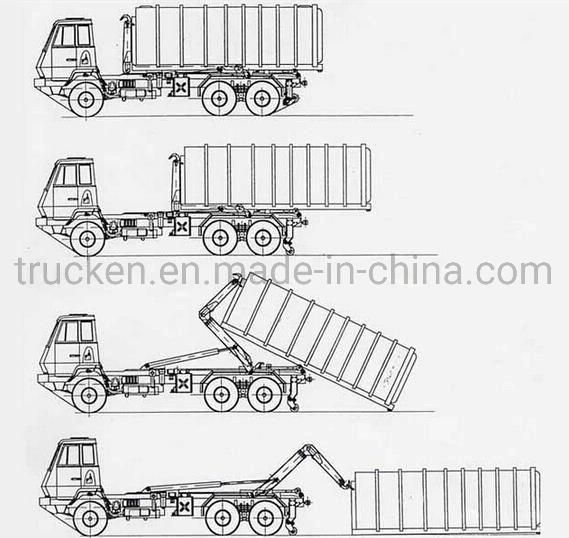

Working Show

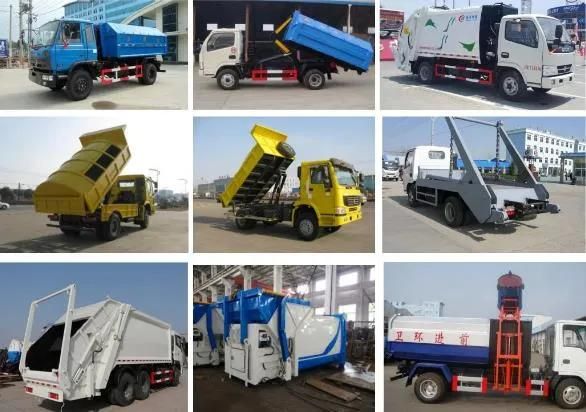

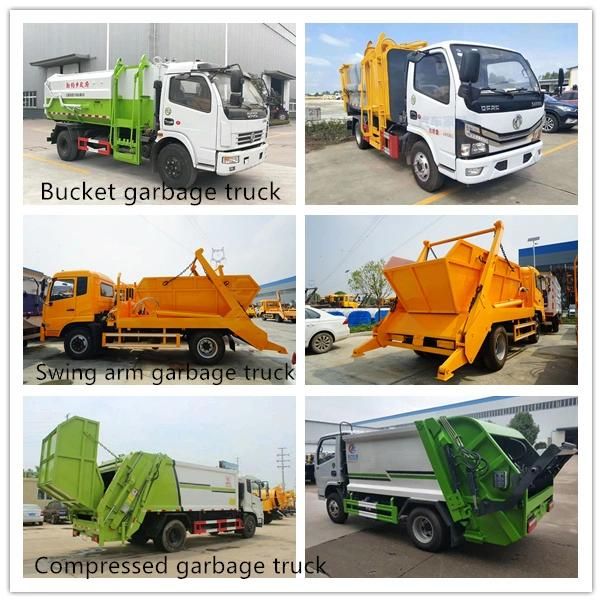

Different types of garbage truck

Certificates

Our Overseas Exhibition
